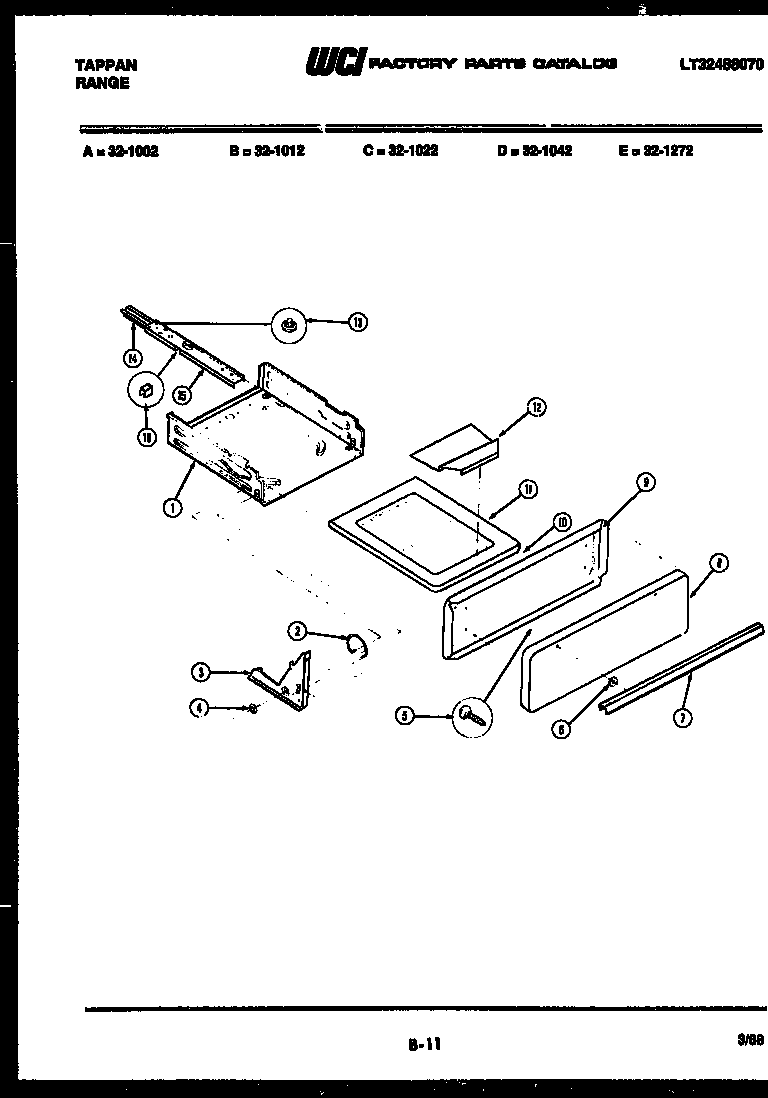

32-1042-45-13 14 – BROILER DRAWER PARTS

Written by

Products

Position	Product
*29445	SCRW-REFLECTR MTG 8-18 X 1/2“ PH TR TP (NON-ILLUSTRATED)
*29447	SCREW-DR ASSY 8-18 X 1/2“ PH WR HD SPC (3)
8A	INSULATION
9	LINER-BROILER DOOR LOT 2,3
10	PIN, HINGE (2)
11	WCI 539T005F01-86
13	BUTTON-GLIDE 27/64“ D.
14	CHANNEL-GLIDE-LOWER LOT 2,3
15	CHANL-GLIDE UPPER LOT 11
16	BUTTON-GUIDE
