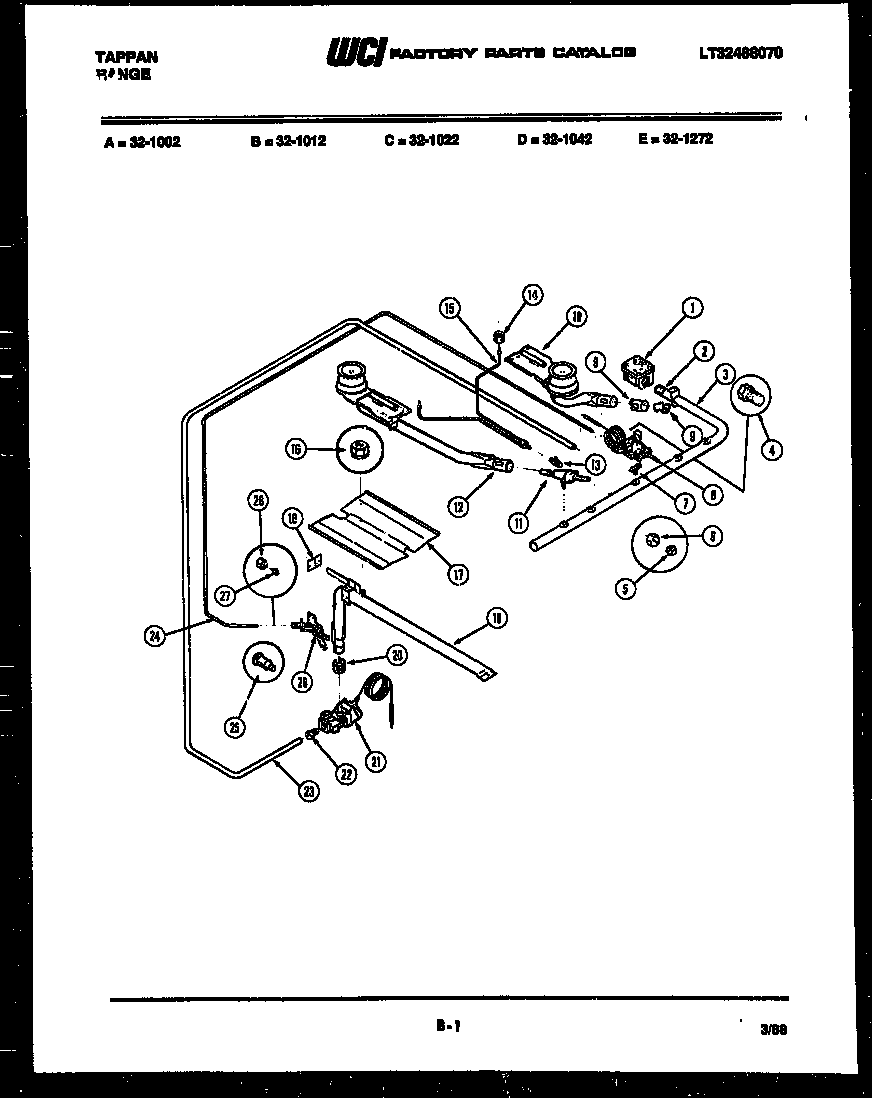

32-1042-57-03 09 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 166T008P03
2WCI 008T276F04
3WCI 439T046P04
4LOXIT NUT-THERMO PILOT TUBE 3/16“ LOT 2-11
5FERRULE 3/8“
5WCI T7-205-2
6COMPRESSION NUT 3/8“
7WCI 003T039P01
8THERMOSTAT-OVEN
8ASCREW-THERMO MTG 10-24 X 9/32“ HEX HD (2) (NON-ILLUSTRATED)
9BSCREW-UPR OVN ASSY 8-32 X 3/8“ PH BD HD (2)
9AMIXER-AIR-TP BURNR
10WCI 080T013P01
11VALVE-TP BURNER (4)
12WCI 080T013P02
