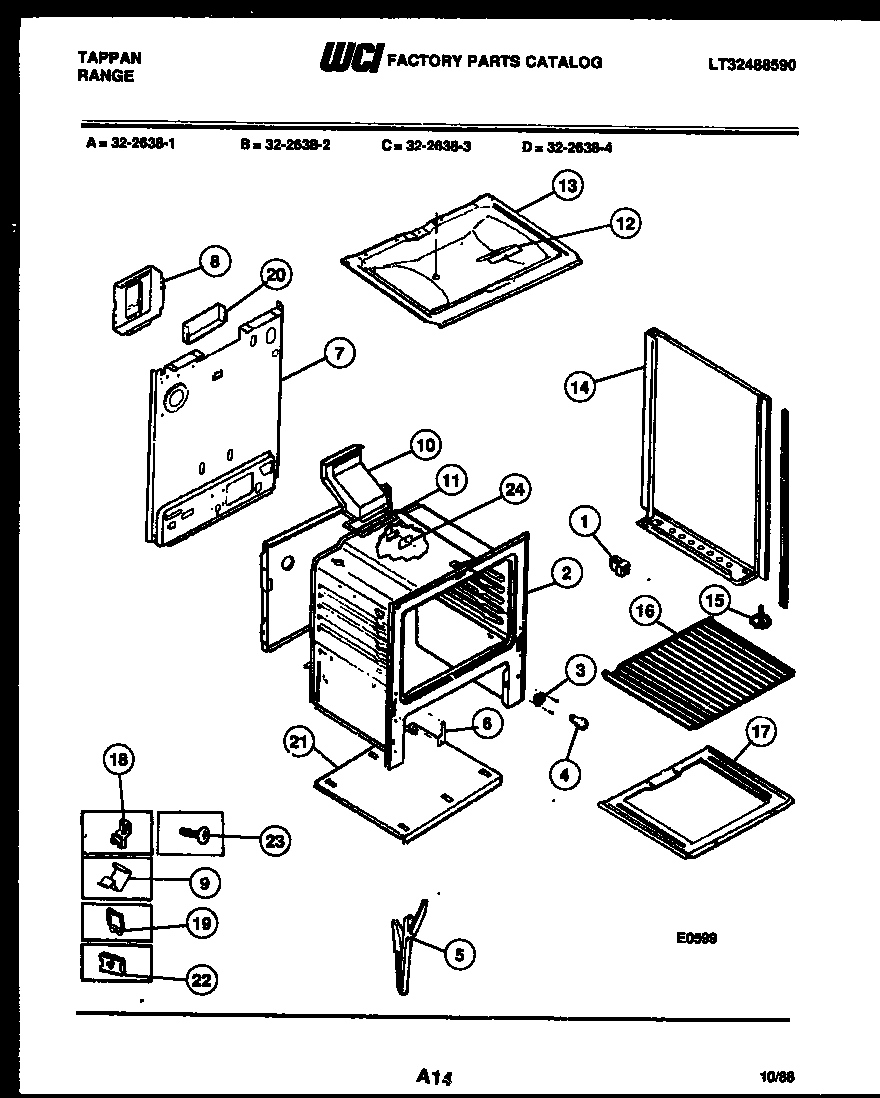

32-2638-00-04 04 – BODY PARTS

32-2638-00-04 04 – BODY PARTS

Written by

in

32-2638-00-04 04 – BODY PARTS

Products

PositionProduct
1SPACER-BDYSDE (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHANL-DR HNG (2)
6A5304534000 Frigidaire Cord
6WCI 3131570
7WCI 3051401
8WCI 655T421F02-18
9CLIP, WIRE
10316204402 Frigidaire Oven Flue
11316542102 Frigidaire Flue Gasket
12WCI 3131101
14WCI 3201001
14AWCI 3201000
15WCI 636M004P01
16316067902 Frigidaire Oven Rack
17AWCI 3131201
17WCI 058T036F02-86
17BWCI 3131246
185303284616 Frigidaire Range Bulb Clip Thermostat
18AFSTNR-POWER CORD (NON-ILLUSTRATED)
19316539800 Frigidaire Oven Retainer
20COVER-VENT
20B316064600 Frigidaire Oven Support
20A3131903 Frigidaire Door/Drawer Bumper
21WCI 3131180
21BCOVER-POWER CORD, (NON-ILLUSTRATED)
21APLATE-OV. LT MTG (NON-ILLUSTRATED)
223203010 Frigidaire Clip
22ACOVER FRNT MAIN (NON-ILLUSTRATED)
23ACOVER, BURNER BOX
23316282700 Frigidaire Oven Screw
24COVER PLATE (NON-ILLUSTRATED)
