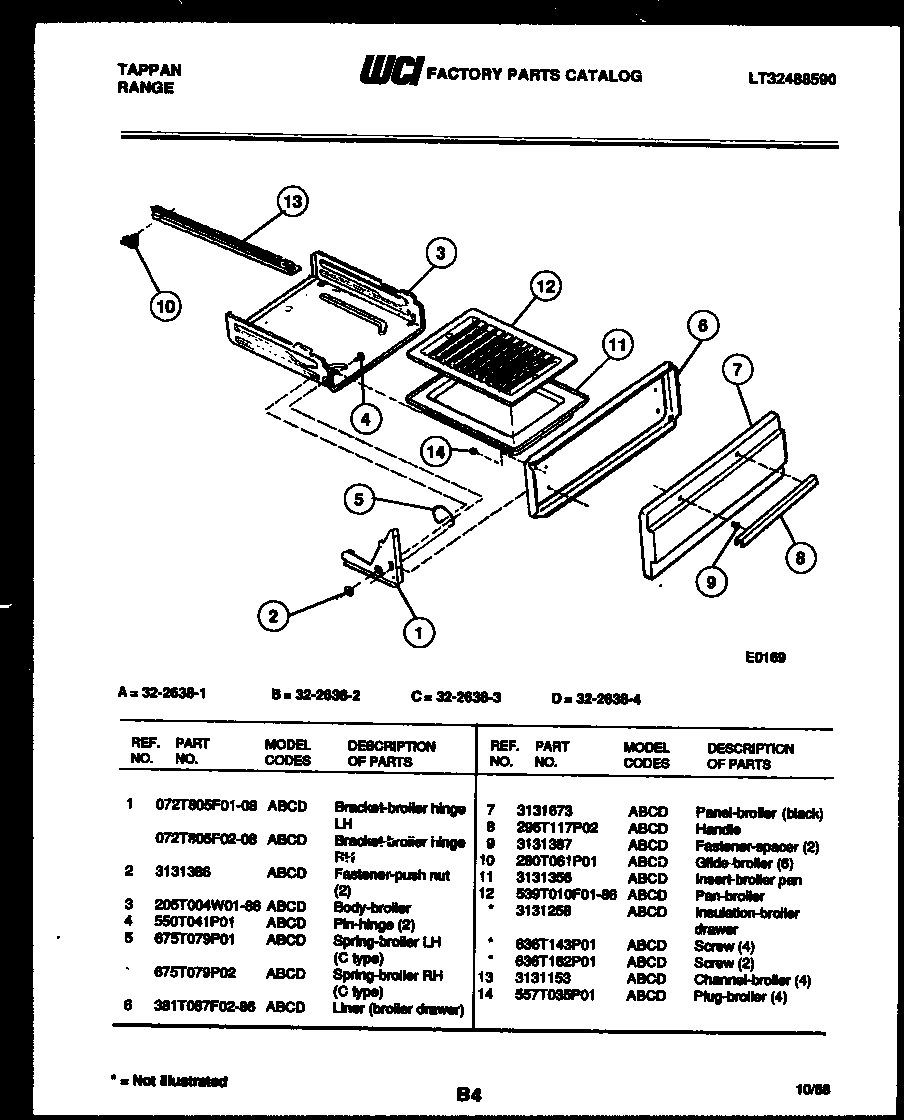

32-2638-00-04 06 – BROILER DRAWER PARTS

32-2638-00-04 06 – BROILER DRAWER PARTS

Written by

in

32-2638-00-04 06 – BROILER DRAWER PARTS

Products

PositionProduct
1AWCI 072T805F02-08
1WCI 072T805F01-08
2WCI 3131386
3BODY, BROILER
4PIN, HINGE (2)
5ASPRING-BROILR RH C-TYPE
5SPRING-BROILR LH C-TYPE
6LINER (BROILR DRWR)
7PNL. BROILER-BLACK
8WCI 296T117P02
9FSTNR, SPACER (2)
10GLIDE – BROILER
11WCI 3131356
12PAN, BROILER
12AINSUL, BRL, DRWR (NON-ILLUSTRATED)
12CSCREW PNL ASSY (2)
12B5303300265 Frigidaire Oven Screw
13WCI 3131153
14WCI 557T035P01
