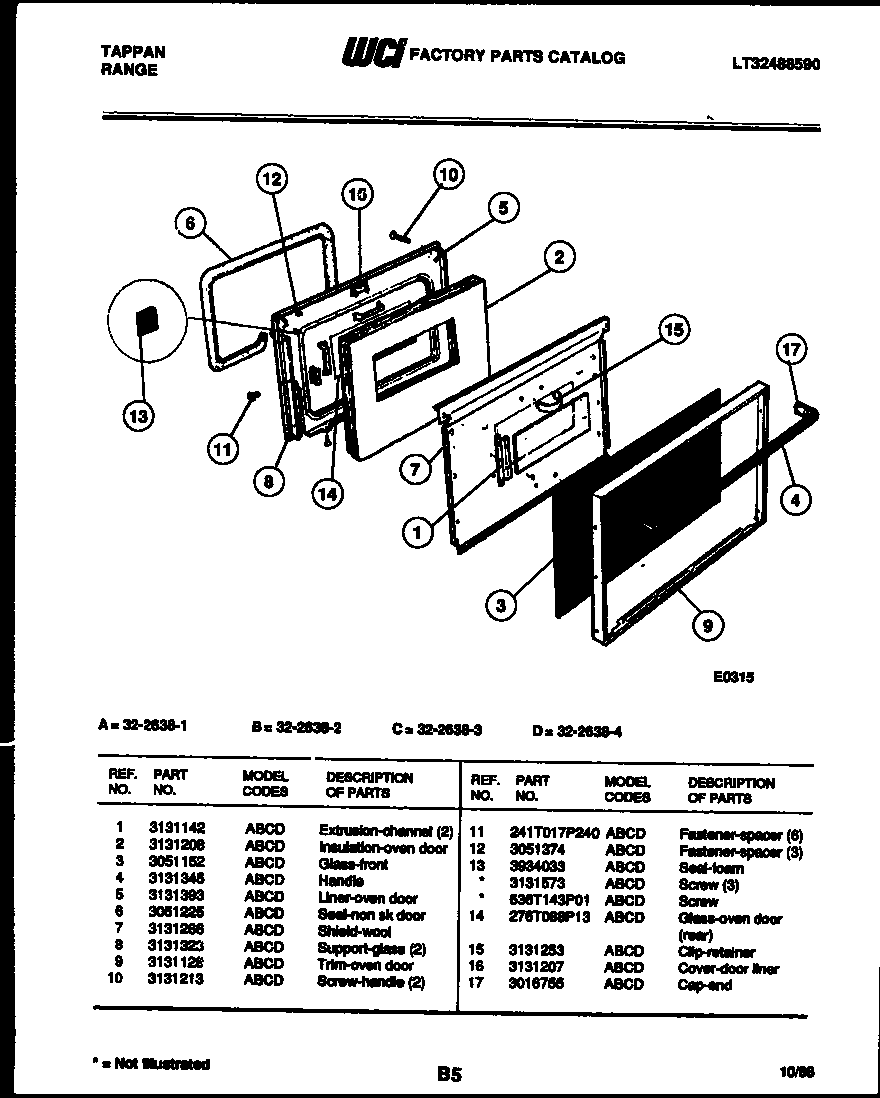

32-2638-00-04 07 – OVEN DOOR PARTS

Products

Position	Product
1	EXTRUSION-CHANNL
2	INSUL. OVEN DR
3	GLASS-OVEN DOOR, BLACK, OUTER
4	HANDLE
5	WCI 3131393
6	5303202011 Frigidaire Door Seal
7	WCI 3131266
8	SUPPORT, GLASS
9	WCI 3131128
10	SCREW HANDL (2)
11	FASTNR-NYLN SPACR 3/32“ (5)
12	FASTNR-SPACER (6)
13A	SCREW DOOR MTG
13	SEAL, FOAM (4)
13B	5303300265 Frigidaire Oven Screw
14	OVEN GLASS-REAR
15	WCI 3131253
16	COVER DOOR LINER (NON-ILLUSTRATED)
17	316137003 Frigidaire Range / Cooktop End Cap
