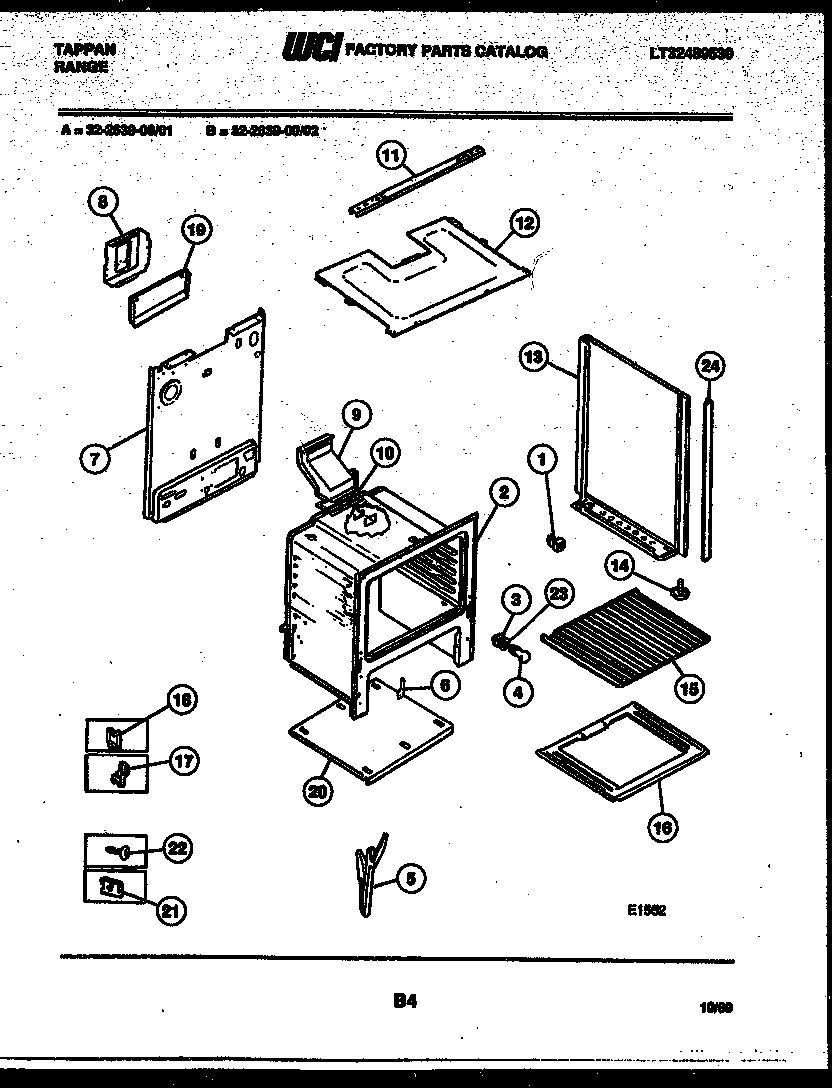

32-2639-00-02 07 – BODY PARTS

Products

Position	Product
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHANL-DR HNG (2)
6A	SHIELD-FLUE, (NON-ILLUSTRATED)
6	WCI 3131570
7	WCI 3203082
8	WCI 3131660
9	316204402 Frigidaire Oven Flue
10	316542102 Frigidaire Flue Gasket
11	CHANNEL-BURNER BOX
12	BURNER BOX BOTTOM
13A	WCI 3201000
13	WCI 3201001
14	SCREW-LEVELING
15	316067902 Frigidaire Oven Rack
16	BTTM-OVEN
16B	INSUL – OVEN BACK (NON-ILLUSTRATED)
16A	INSULATION, OVEN WRAPPER
17	5303284616 Frigidaire Range Bulb Clip Thermostat
17A	FSTNR PWR CORD (2) (NON-ILLUSTRATED)
18	316539800 Frigidaire Oven Retainer
19	COVER-VENT
19A	316064600 Frigidaire Oven Support
20	WCI 3131180
20A	5304515659 Frigidaire Oven Power Cord
21	3203010 Frigidaire Clip
21A	COVER-BURNER BOX
22B	COVER-IGNITOR
22D	WCI 3131192
22C	ANTI-TIP KIT (NOT ILLUSTRATED)
22A	COVER-POWER CORD, (NON-ILLUSTRATED)
22	316282700 Frigidaire Oven Screw
23	WCI 3051511
24	TRIM-VERT B/S (2)
