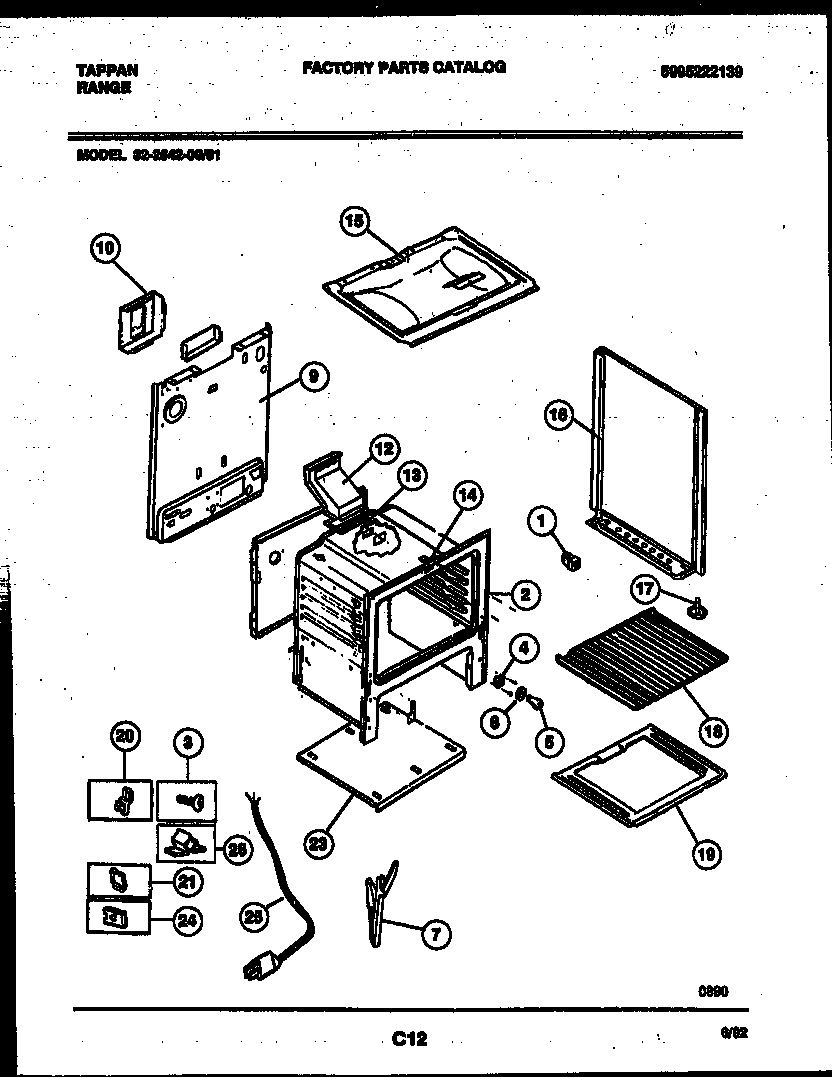

32-2642-00-01 07 – BODY PARTS

32-2642-00-01 07 – BODY PARTS

Written by

in

32-2642-00-01 07 – BODY PARTS

Products

PositionProduct
*72403WCI 08067961
*72403ANTI-TIP KIT (NOT ILLUSTRATED)
*72403INSUL – OVEN BACK (NON-ILLUSTRATED)
*72403316064600 Frigidaire Oven Support
*72403COVER-POWER CORD, (NON-ILLUSTRATED)
*72403WCI 316002108
*72403COVER-IGNITOR
*72402INSULATION, OVEN WRAPPER
1SPACER-BODYSIDE, (8)
3316282700 Frigidaire Oven Screw
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WCI 5303271606
7Hinge,oven door ,(2)
9WCI 3203082
10WCI 3131660
12WCI 3131904
13316542102 Frigidaire Flue Gasket
14COVER-OVEN FRONT
15WCI 316011900
16PNL-B/S-RH-WHITE
16APNL-B/S-LH-WHITE
17AWCI 08010570
17SCREW-LEVELING
18316067902 Frigidaire Oven Rack
19BTTM-OVEN
205303284616 Frigidaire Range Bulb Clip Thermostat
21316539800 Frigidaire Oven Retainer
23WCI 5303270160
243203010 Frigidaire Clip
255304515659 Frigidaire Oven Power Cord
263205821 Frigidaire Clip
