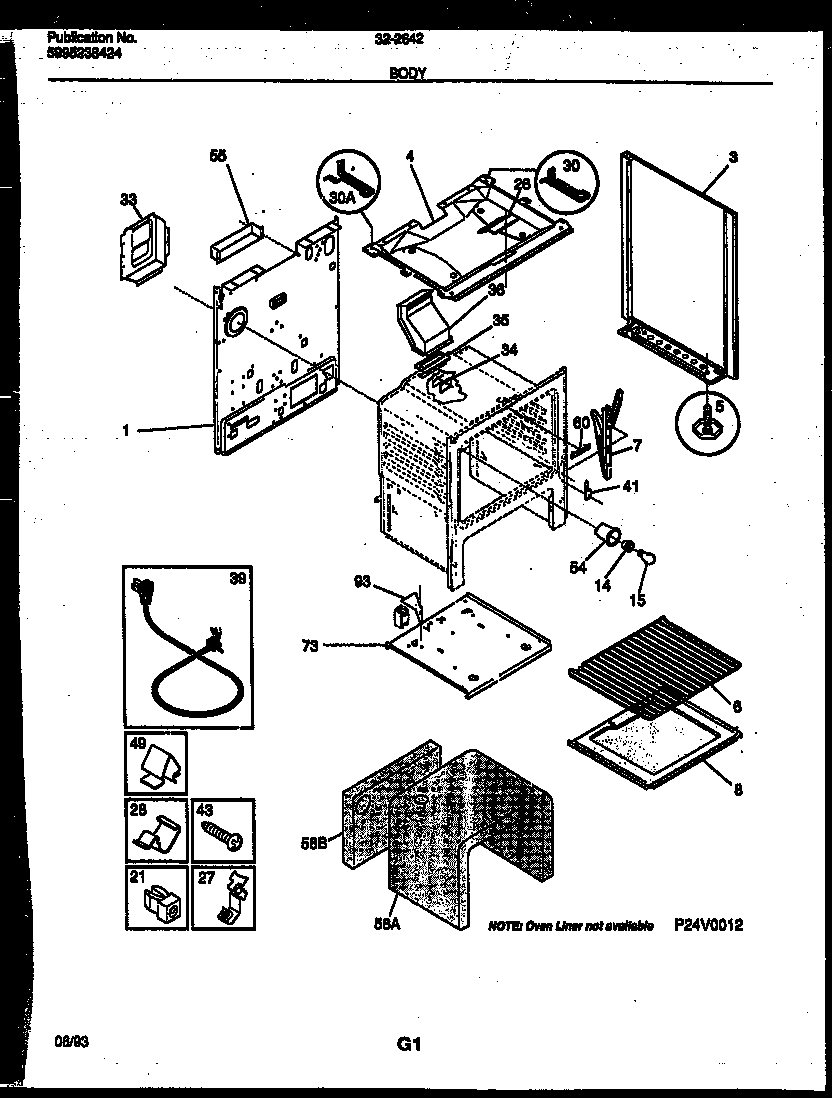

32-2642-32-02 04 – BODY PARTS

32-2642-32-02 04 – BODY PARTS

Written by

in

32-2642-32-02 04 – BODY PARTS

Products

PositionProduct
*86378WCI 3131192
1WCI 3203082
3WCI 5303269544
3CWCI 5303269546
4WCI 316011901
5ANUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5BANTI-TIP KIT (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
8A316064600 Frigidaire Oven Support
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
493205821 Frigidaire Clip
54WCI 3051511
55COVER-VENT
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055501
