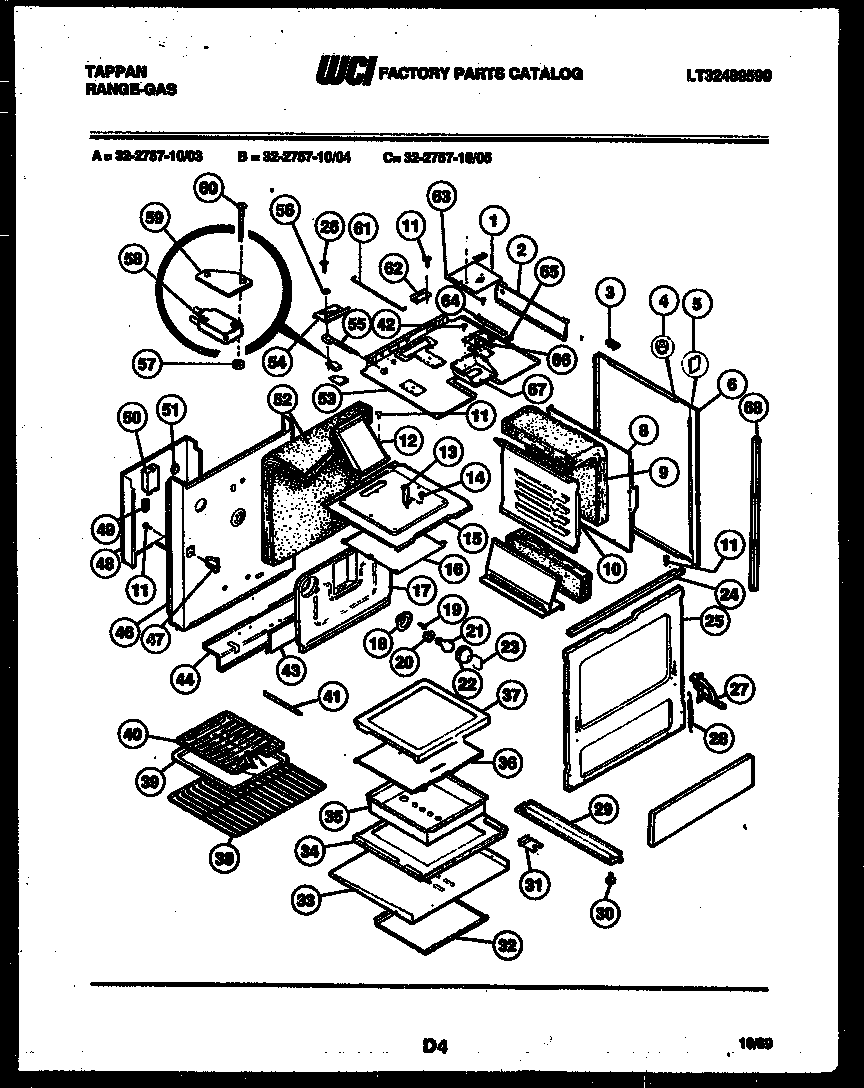

32-2757-00-03 07 – BODY PARTS

32-2757-00-03 07 – BODY PARTS

Written by

in

32-2757-00-03 07 – BODY PARTS

Products

PositionProduct
1COVER-LOCK
2WCI 3131053
2AWCI 3131054
3GROMMET (2)
4GROMMET
5CLIP,BODYSIDE
6PANEL-BODYSIDE, BLACK
8WCI 3131794
9WCI 3131795
10OVEN LINER SIDE RH
10ALINER-LEFT SIDE
12VENT BOX ASSEMBLY
13WCI 3131800
14WCI 3131801
15WCI 3131802
16BAFFLE-BROILER
17LINER-OVEN BACK (BLUE)
18CUP – OVEN LIGHT
20316116400 Frigidaire Oven Light Socket
21316538904 Frigidaire Oven Lamp Light
225304524341 Frigidaire Lens
23RETAINER-OVEN LIGHT LENS
24SUPPORT CONTROL PNL
25FRAME-FRONT (BLUE)
265304500008 Frigidaire Oven Screw
27CAM-DOOR RIGHT HAND
27A318348801 Frigidaire Oven Left Side Door Hinge
28318088400 Frigidaire Oven Spring Assembly
29BASE-RAIL (2)
30WCI 3051080
31BRACKET-INSTALLATION (2)
32WCI 3131819
33WCI 3131820
34LINING-OVEN BOTTOM (BLUE)
35WCI 3131822
36SHIELD-BAKE BURNER
37OVEN-BOTTOM PLATE (BLUE)
38WCI 3131825
39BROILER-PAN
405304442087 Frigidaire Range Wall Oven Broil Pan and Insert
41SHIELD-CAPILLARY BULB
41ASCREW – PANEL MTG
42WCI 3051009
43WCI 3131830
44WCI 3131831
46WCI 3131833
47SUPPORT-REAR OVN (2)
48WCI 3131835
49AWCI 3131837
49WCI 3131836
505303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
51WCI 3131839
52WCI 3131840
53WCI 3016971
54WCI 3131842
55WCI 3131843
56WCI 3131844
57WCI 3131845
58WCI 3131846
59WCI 3131847
60WCI 3131848
63WCI 3131849
64WCI 3131850
65KNOB HANDLE
66LOCK-OVEN DOOR
67WCI 3131853
68TRIM-BODY SIDE (2)
