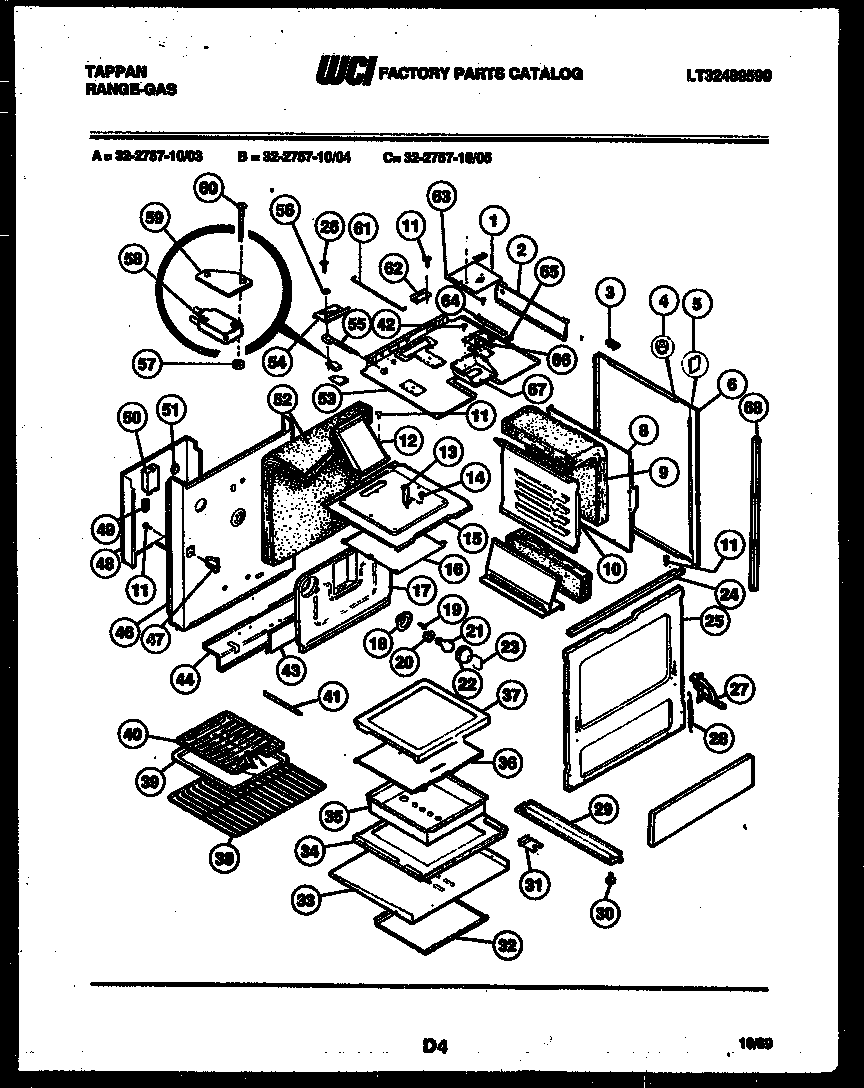

32-2757-00-05 07 – BODY PARTS

Products

Position	Product
1	COVER-LOCK
2	WCI 3131053
2A	WCI 3131054
3	GROMMET (2)
4	GROMMET
5	CLIP,BODYSIDE
6	PANEL-BODYSIDE, BLACK
8	WCI 3131794
9	WCI 3131795
10A	WCI 3016534
10	LINER-RIGHT SIDE
12	VENT BOX ASSEMBLY
13	WCI 3131800
14	WCI 3131801
15	WCI 3131802
16	BAFFLE-BROILER
17A	LINER OVEN BACK
18	CUP – OVEN LIGHT
20	316116400 Frigidaire Oven Light Socket
21	316538904 Frigidaire Oven Lamp Light
22	5304524341 Frigidaire Lens
23	RETAINER-OVEN LIGHT LENS
24	SUPPORT CONTROL PNL
25	WCI 3205905
26	5304500008 Frigidaire Oven Screw
27A	318348801 Frigidaire Oven Left Side Door Hinge
27	CAM-DOOR RIGHT HAND
28	318088400 Frigidaire Oven Spring Assembly
29	BASE-RAIL (2)
30	WCI 3051080
31	BRACKET-INSTALLATION (2)
32	WCI 3131819
33	WCI 3131820
34A	WCI 12055
35	WCI 3131822
36	SHIELD-BAKE BURNER
37	WCI 3016975
38	WCI 3131825
39	WCI 3016973
40A	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
41	SHIELD-CAPILLARY BULB
41A	SCREW – PANEL MTG
42	WCI 3051009
43	WCI 3131830
44	WCI 3131831
46	WCI 3131833
47	SUPPORT-REAR OVN (2)
48	WCI 3131835
49A	WCI 3131837
49	WCI 3131836
50	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
51	WCI 3131839
52	WCI 3131840
53	WCI 3016971
54	WCI 3131842
55	WCI 3131843
56	WCI 3131844
57	WCI 3131845
58	WCI 3131846
59	WCI 3131847
60	WCI 3131848
63	WCI 3131849
64	WCI 3131850
65	KNOB HANDLE
66	LOCK-OVEN DOOR
67	WCI 3131853
68	TRIM-BODY SIDE (2)
