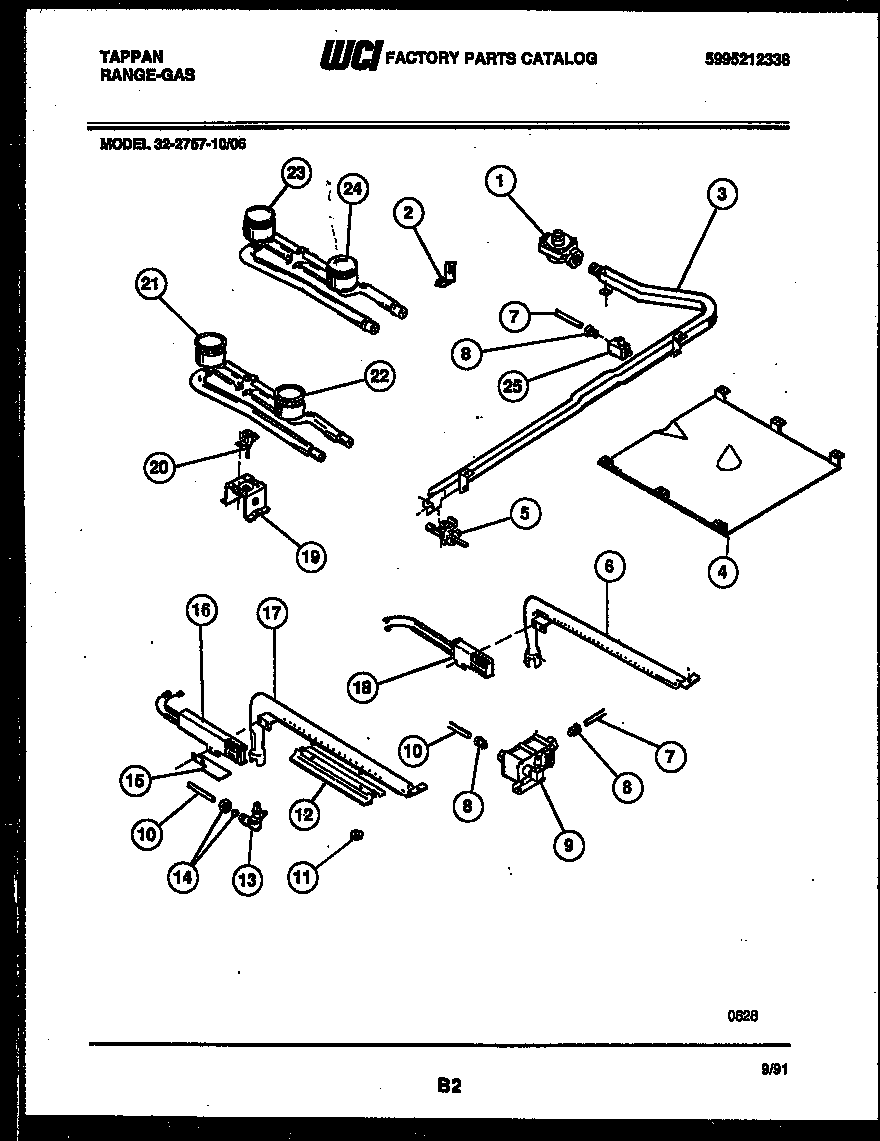

32-2757-00-06 06 – BURNER, MANIFOLD AND GAS CONTROL

32-2757-00-06 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

32-2757-00-06 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2WCI 5300009126
3WCI 3131855
4BAFFLE-BROILER
5WCI 3200709
6BURNER-OVEN BAKE
7WCI 08068028
8WCI 3131864
9VALVE-SAFETY
10WCI 3131866
115303013272 Frigidaire Oven Nut
12Baffle,oven burner
13PIN-ELBOW MIXER
14NUT & SLEEVE
15WCI 3131871
165303935067 Frigidaire Range Oven Flat Igniter 3-1/4"
17BURNER-BROILER
185303935066 Frigidaire Oven Flat Igniter 17" Leads
19WCI 5303210471
20IGNITOR-TOP BURNER, BASE
20AIGNITER-TOP BURNER 48“
21WCI 3017146
22WCI 3017144
23WCI 3017145
24BURNER-TOP FRONT
25WCI 5303131099
