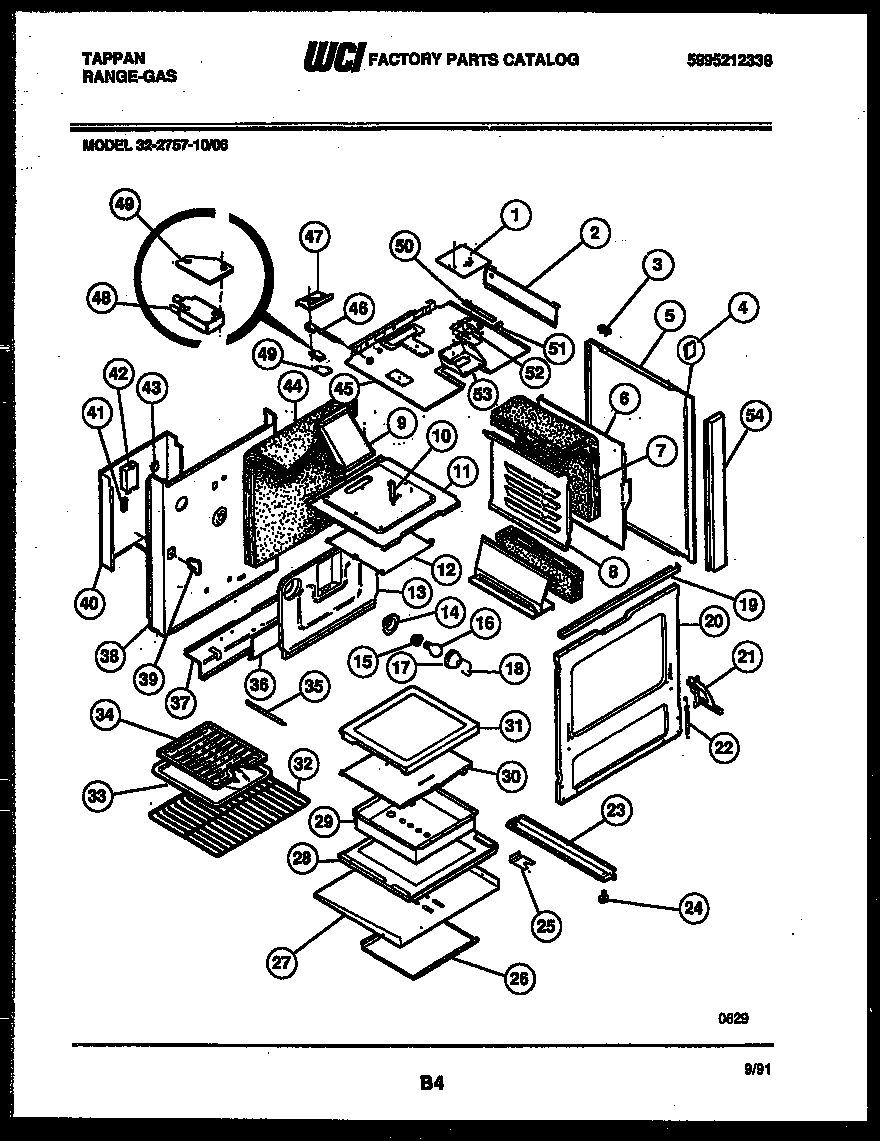

32-2757-00-06 07 – BODY PARTS

Products

Position	Product
*60020	WCI 191S018F254
*60020	TERMINAL BLOCK
1	WCI 3016970
2A	SHIELD-BURNER BOX LH
2	SHIELD-BURNER BOX RH
3	GROMMET-MAINTOP
4	CLIP,BODYSIDE
5	PANEL-BODYSIDE, BLACK
6	WCI 3131794
7	WCI 3131795
8A	WCI 3016534
8	LINER-RIGHT SIDE
9	VENT BOX ASSEMBLY
10	WCI 3131800
11	WCI 3131802
12	BAFFLE-BROILER
13	LINER OVEN BACK
14	WCI 3051511
15	316116400 Frigidaire Oven Light Socket
16	316538904 Frigidaire Oven Lamp Light
17	5304524341 Frigidaire Lens
18	RETAINER-LENS
19	SUPPORT CONTROL PNL
20	WCI 3205905
21	318348801 Frigidaire Oven Left Side Door Hinge
21A	WCI 3205894
22	318088400 Frigidaire Oven Spring Assembly
23A	RAIL-BASE, LH
23	Rail,base ,RH
25	ANTI-TIP KIT
26	SHIELD
27	WCI 3131820
28	WCI 12055
29	PAN-OVEN BURNER
30	SHIELD-BAKE BURNER
31	WCI 3016975
32	OVEN RACK (2)
33	WCI 5303016973
34	WCI 5303017712
35	WCI 3201170
36	SUPPORT, CONTROL VALVE
37	WCI 3131831
38	WCI 3131833
39	SUPPORT-REAR OVN (2)
40	WCI 08068038
41	WCI 5308008071
42	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
43	THERMOSTAT BAKE BROIL SELECT
44	WCI 3131840
45	WCI 3016971
46	WCI 08068030
47	BRACKET-LOCK SWITCHES
48	MICRO SWITCH (2)
49	WCI 3017411
50	HANDLE-LATCH
51	KNOB HANDLE
52	Latch,door
53	WCI 3131853
54	WCI 5308014088
