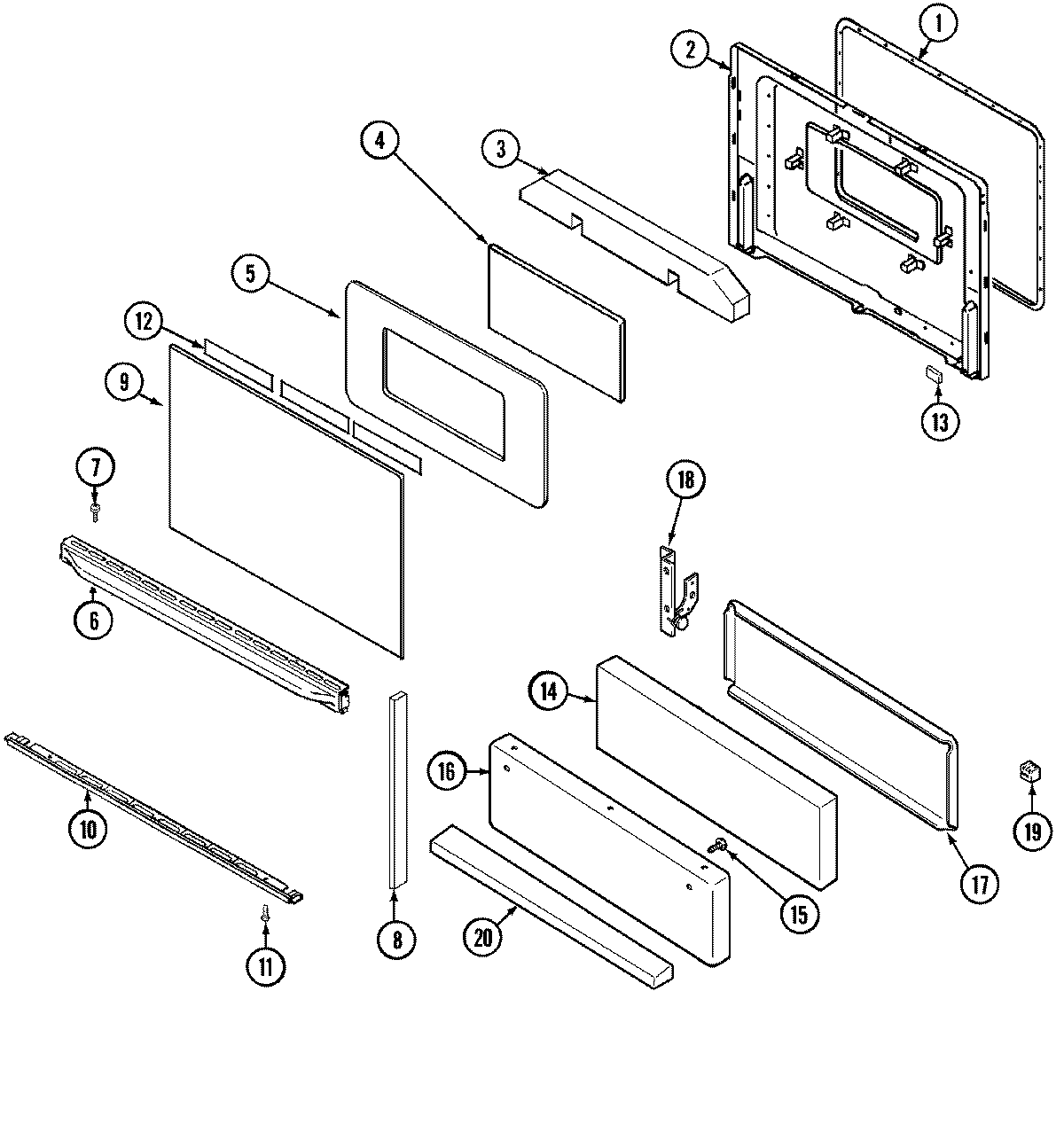

32315VAV 03 – DOOR/DRAWER

32315VAV 03 – DOOR/DRAWER

Written by

in

32315VAV 03 – DOOR/DRAWER

Products

PositionProduct
1WP7212P043-60 Whirlpool Oven Door Seal Gasket
2MAY 74002460
3MAY 74002458
4MAY 74002459
5MAY 7101P209-60
5MAY 74002461
6MAY 74002536
7WP98008544 Whirlpool Screw Assembly
8MAY 74002342
9MAY 7902P328-60
10MAY 7744P103-60
12MAY 8270P095-60
13MAY 8010P085-60
14MAY 74001814
1574002481 Whirlpool Screw
16MAY 74001729
17MAY 74002397
18MAY 74002398
18SCREW
19MAY 8016P015-60
20WP2411F013-71 Whirlpool Door Handle
