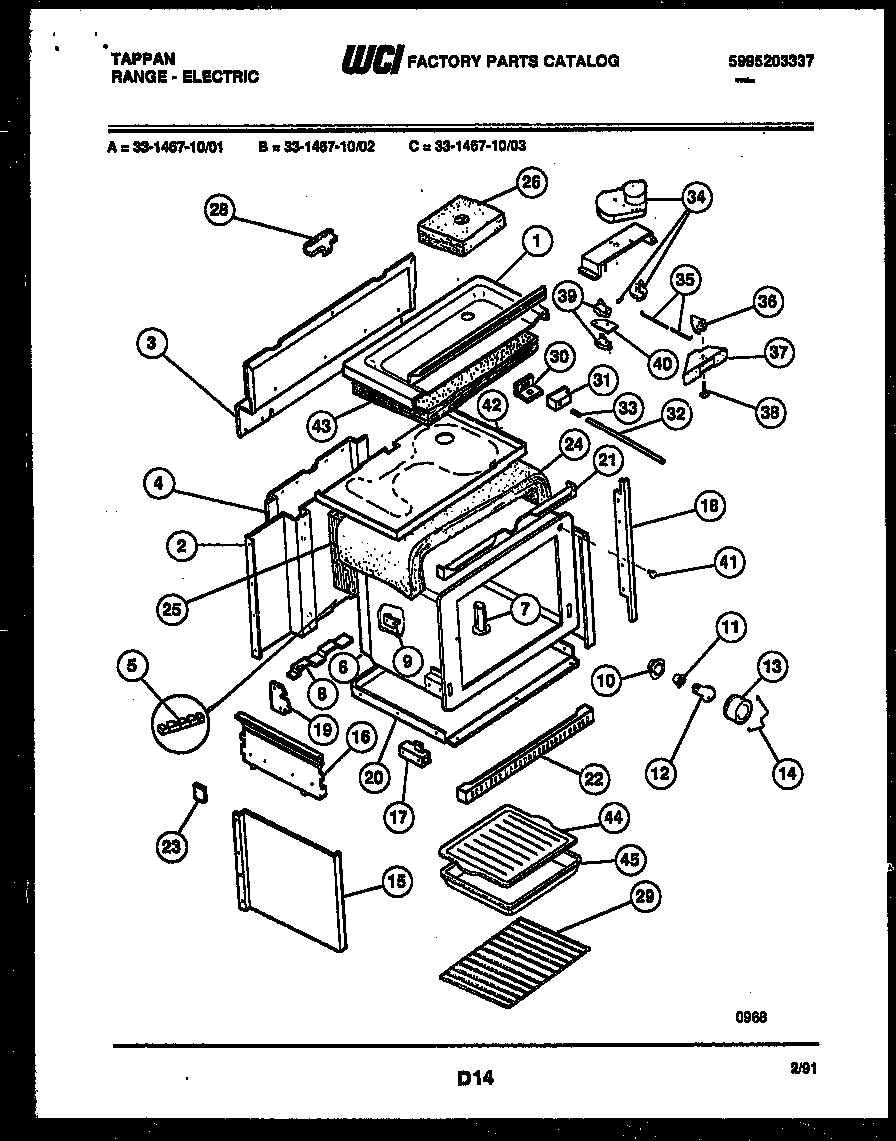

33-1467-00-01 06 – BODY PARTS

Products

Position	Product
*37026	WCI 191G006P01
1	WCI 5303051553
2	WCI 3051530
3	BACK-UPPER
4	COVER – WIRE
5	5304409888 Frigidaire Oven Terminal Block with Hardware
6	WCI 3204607
7	VENT TUBE
8	WCI 5303209490
9	BRACKET-THERMO BULB (2)
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	5304524341 Frigidaire Lens
14	RETAINER-LENS
15	SHIELD-INSULATION (2)
16	WCI 5308015935
17	WCI 3051527
17A	WCI 3051528
18	TRIM-FRONT (2)
19	WCI 5303051532
20	WCI 3051524
21	WCI 08012724
22	WCI 5308012249
23	PLATE-FILLER
24	INSULATION-OVEN BACK
25	INSULATION
26	INSUL.-VENT TUBE
28	BRACKT-HNG SUPT
29	WCI 5308003198
29A	RACK-OFFSET
30	BRACKET-DOOR SW
31	SWITCH, DOOR
32	ROD-SWITCH
33	WCI 08007444
34	LATCH, MOTOR
35	WCI 3051649
36	LATCH-DOOR
37	HOUSING-DOOR LATCH
38	AXLE – HINGE (2)
39A	SWITCH, LOWER
39	SWITCH-LOWER
40	WCI 08003090
41	BUTTON-PLUG
42	SHIELD-INSUL. TOP
43	INSULATION-LINER (NON-ILLUSTRATED)
44	WCI 3051562
45	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
