3422PRA 02 – CONTROL PANEL – Aparts

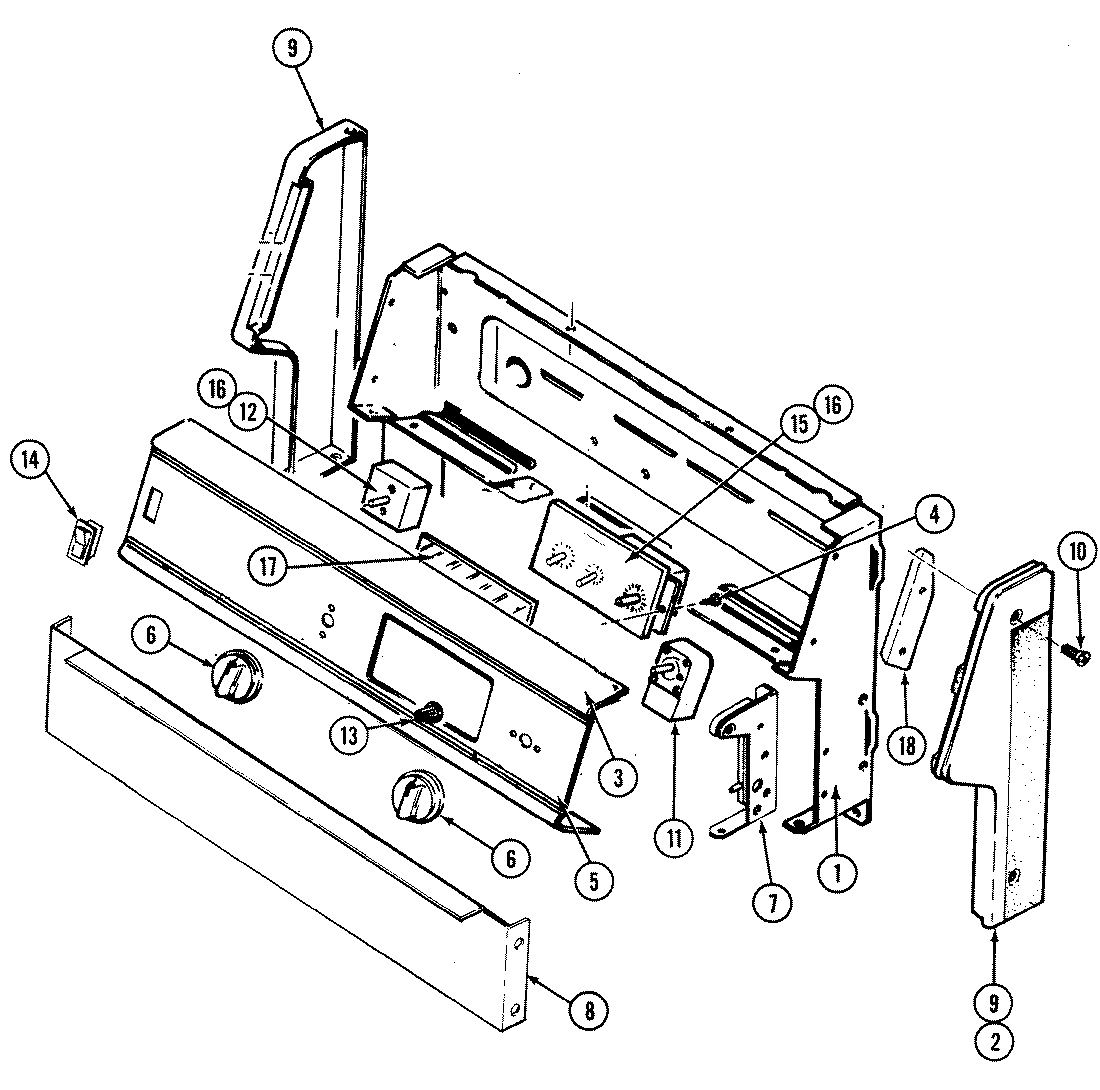

3422PRA 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F097-51
2	SCREW
3	MAY 2601F404-09
4	MAY 7118P015-60
5	MAY 7703P308-60
6	MAY 7731P082-60
7	MAY 3418D098-60
7	MAY 3418D097-60
8	MAY 3604F188-09
9	MAY 7726P096-60
9	MAY 7726P095-60
10	MAY 7101P317-60
11	MAY 7404P077-60
12	MAY 7403P236-60
13	MAY 7711P466-60
14	7403P067-60 Whirlpool Light Switch
15	MAY 7601P170-60
16	SCREW
17	MAY 7902P109-60
17	MAY 7201P056-60
18	MAY 5125A363-60
18	MAY 3807F450-45
18	MAY 3807F449-45
18	MAY 5180D155-60
18	SCREW (8BX3/8-NI)
