3422PRA 03 – DOOR/DRAWER

3422PRA 03 – DOOR/DRAWER

Written by

in

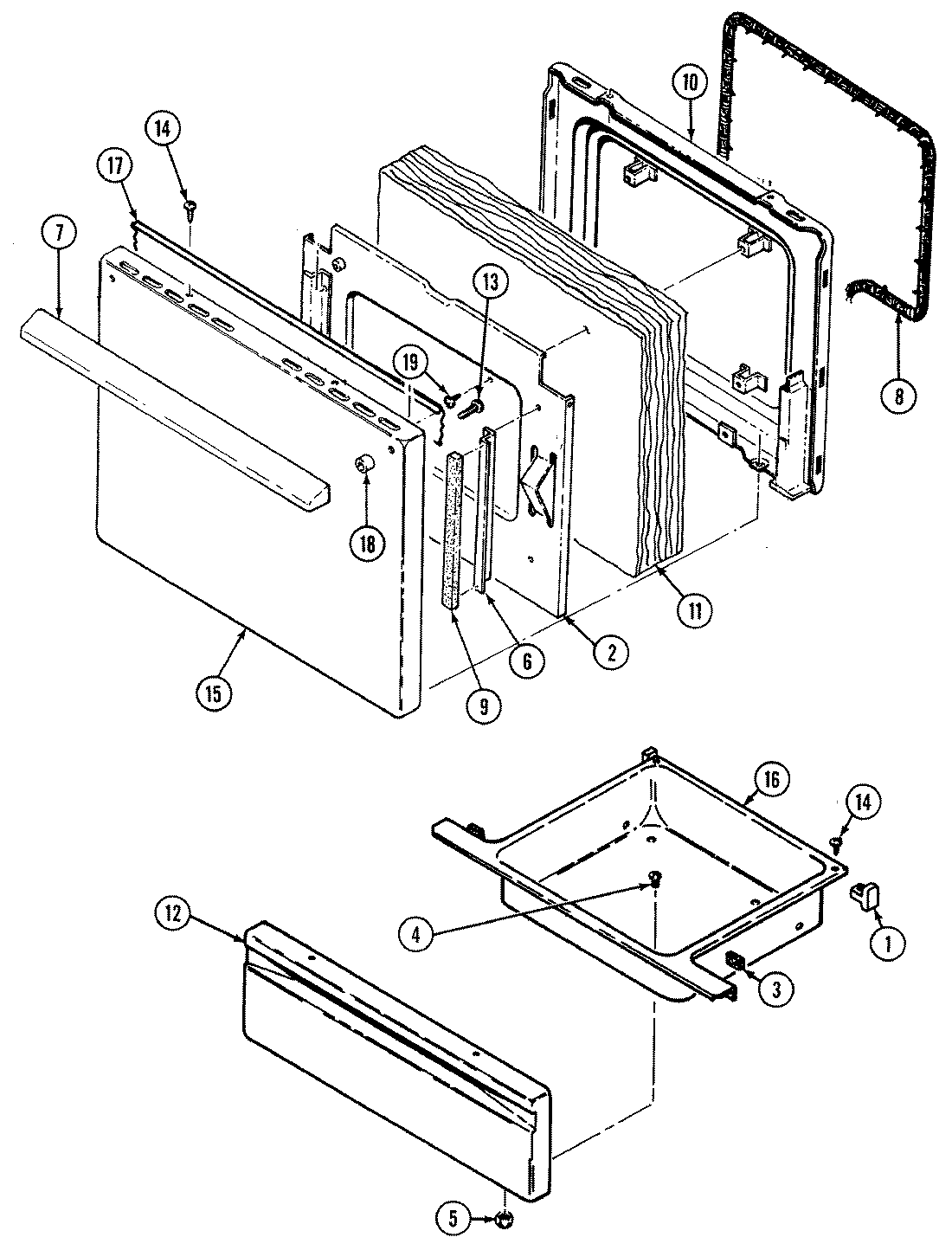

3422PRA 03 – DOOR/DRAWER

Products

PositionProduct
1WP8004P026-60 Whirlpool Support
2MAY 3601F218-45
3MAY 8010P086-60
4WP4159193 Whirlpool Screw
5WPW10131078 Whirlpool Nut Assembly
6MAY 3818F052-51
7WP2411F013-70 Whirlpool Door Handle
7MAY 7701P030-60
8GASKT-DOOR OVEN
9MAY 7208P002-60
10MAY 2402W200-19
11MAY 4804F012-60
12MAY 2416F038-64
13MAY 7101P080-60
14MAY 7101P291-60
15MAY 2401F098-74
15LINING, DRAWER PANEL
16MAY 3405F014-80
17TAPE, FOIL (3“ WIDE)
18MAY 8010P084-60
19MAY 7101P290-60
