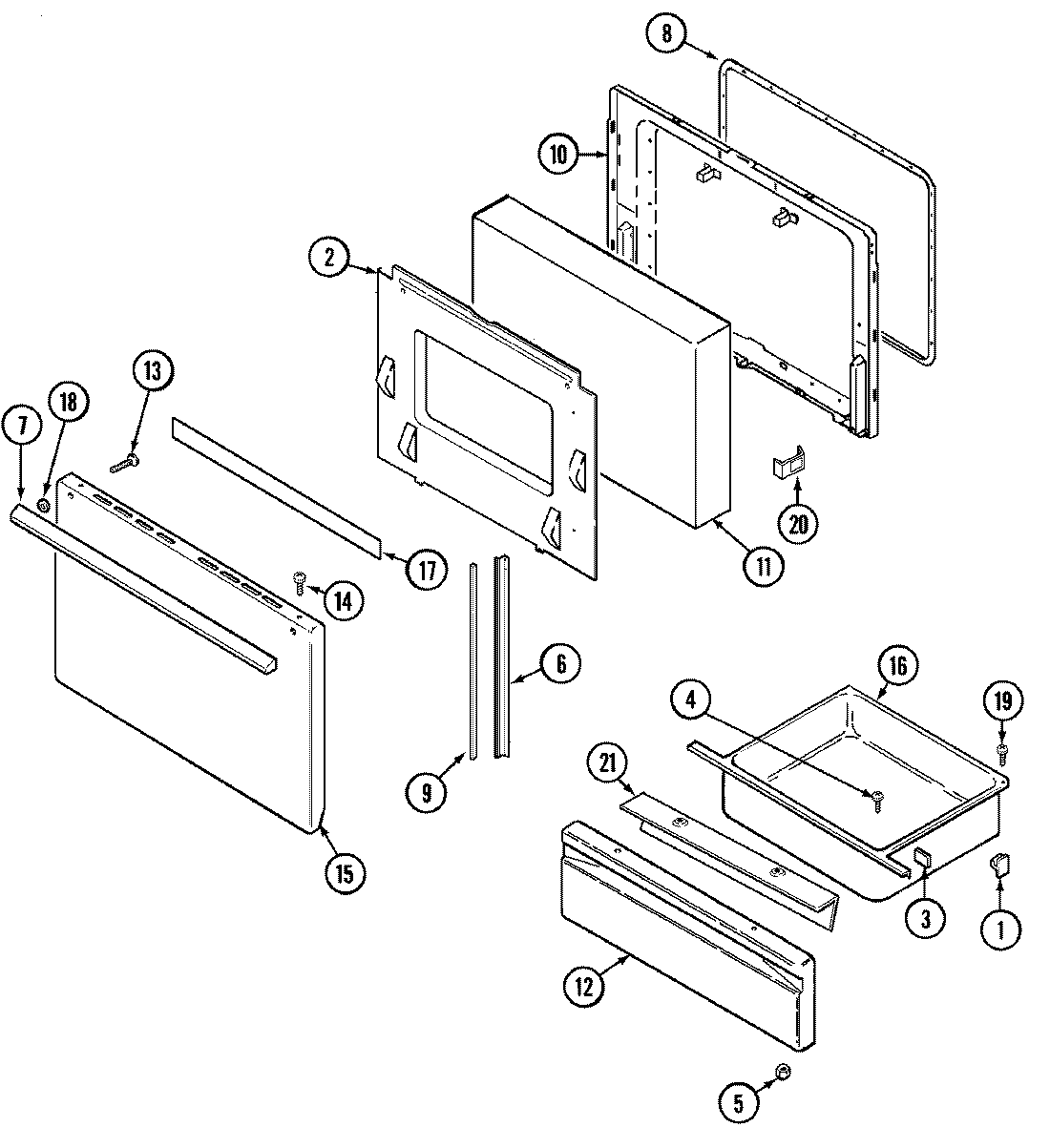

3422PVA 03 – DOOR/DRAWER

Products

PositionProduct
1WP8004P026-60 Whirlpool Support
2MAY 3601F218-47
3MAY 7208P011-60
4WP7101P072-60 Whirlpool Screw
5WPW10131078 Whirlpool Nut Assembly
6MAY 3818F052-80
7WP2411F013-70 Whirlpool Door Handle
8GASKT-DOOR OVEN
9MAY 7208P002-60
10MAY 2402W210-19
11MAY 74001842
12MAY 2416F038-64
13MAY 7101P080-60
15MAY 2401F120-74
16MAY 3405F018-80
17TAPE, FOIL (3“ WIDE)
18MAY 8010P084-60
19SCREW
20CLIP, DOOR
21LINING, DRAWER PANEL
