3422PVA 05 – OVEN/BASE – Aparts

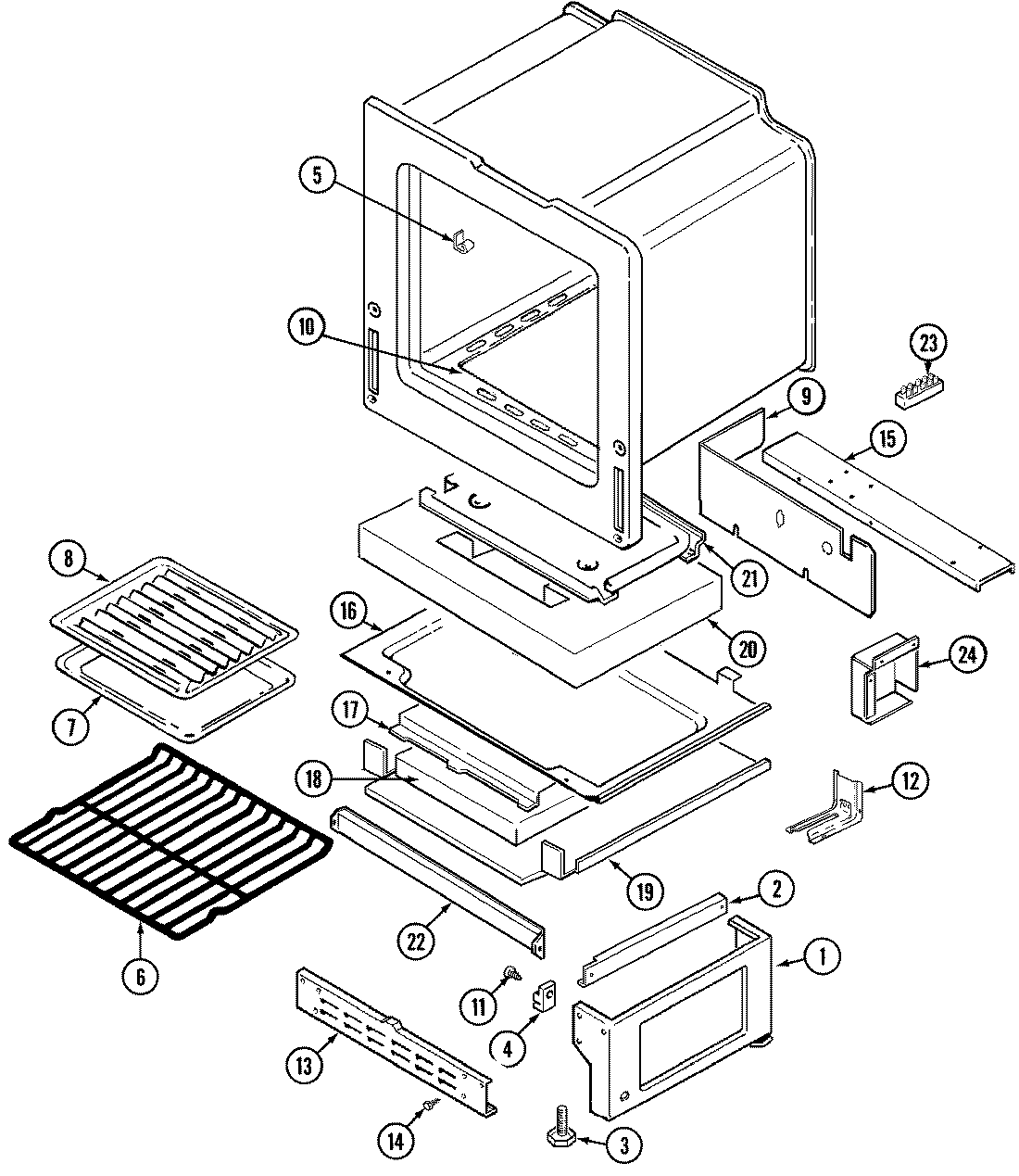

3422PVA 05 – OVEN/BASE

Products

Position	Product
1	MAY 74001705
2	MAY 3406F028-51
3	MAY 74001311
4	MAY 74002312
5	CLIP, THERMOSTAT BULB
6	MAY 7801P047-60
7	MAY Y3401F02019
8	MAY Y3413F01619
9	MAY 4005F429-51
10	MAY 5504M004-19
11	MAY 74001449
12	MAY 3801F218-51
12	MAY 7101P344-60
13	MAY 4020F001-80
14	SCREW
15	MAY 3807F476-51
16	MAY 3804F112-51
17	MAY 3604F204-51
18	INSULATION, DRAWER & SHIELD
19	MAY 3604F205-51
20	MAY 4804F014-60
21	MAY 74001651
22	BAFFLE, OVEN FRONT
23	MAY 7401P037-60
24	MAY 3807F432-45
