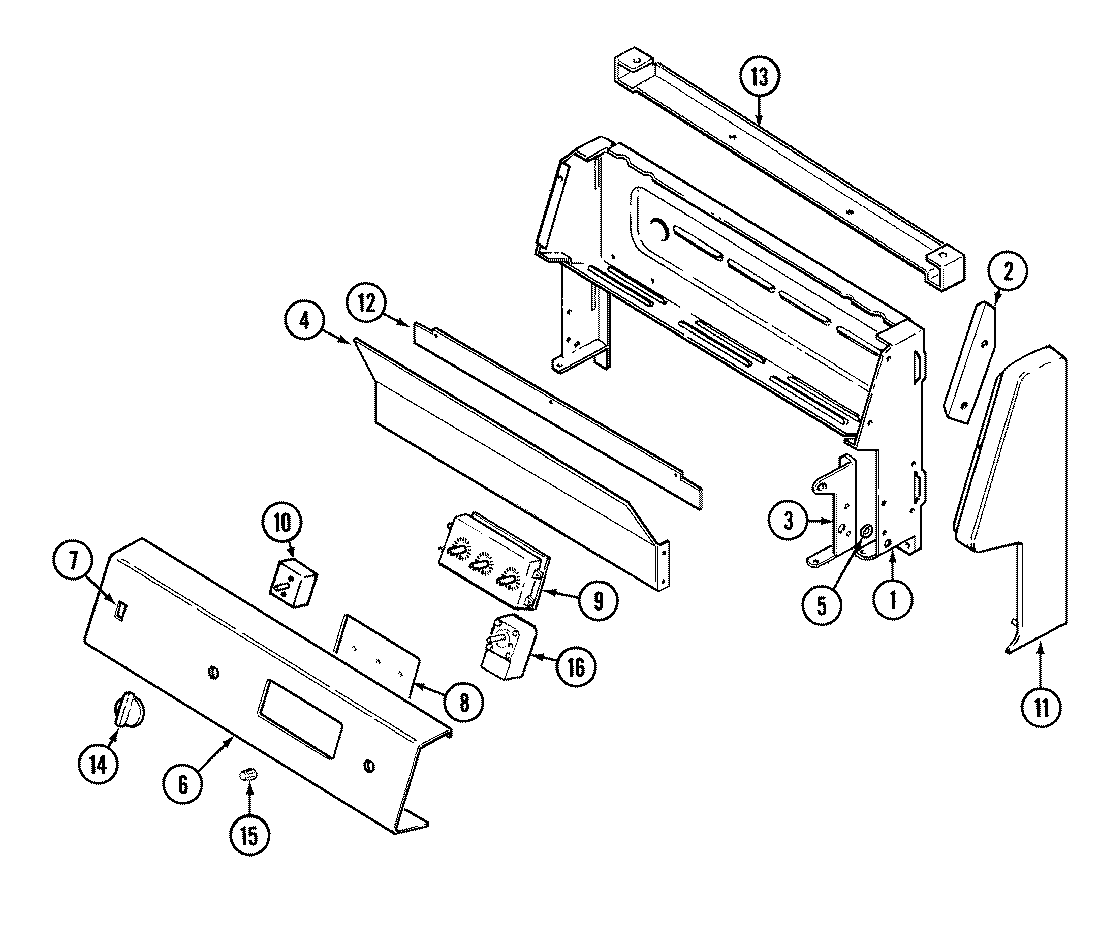

3422PVW 02 – CONTROL PANEL

Products

Position	Product
1	MAY 74002162
1	SCREW
1	MAY 4005F448-45
2	MAY 3807F450-45
2	MAY 3807F449-45
3	MAY 3418D098-60
3	MAY 3418D097-60
3	MAY 8114P348-60
4	MAY 3604F188-09
5	WP3195558 Whirlpool Nut
6	MAY 74002484
6	WPY706189 Whirlpool Stove Screw
7	MAY 7718P009-60
8	MAY 7201P056-60
8	MAY 7902P109-60
9	MAY 74001560
10	MAY 7403P236-60
11	MAY 7726P052-60
11	MAY 7726P051-60
12	MAY 8036P003-60
13	SCREW (8BX3/8-NI)
13	MAY 4001F064-51
14	MAY 7731P082-60
15	MAY 7711P466-60
16	MAY 7404P102-60
16	SCREW
