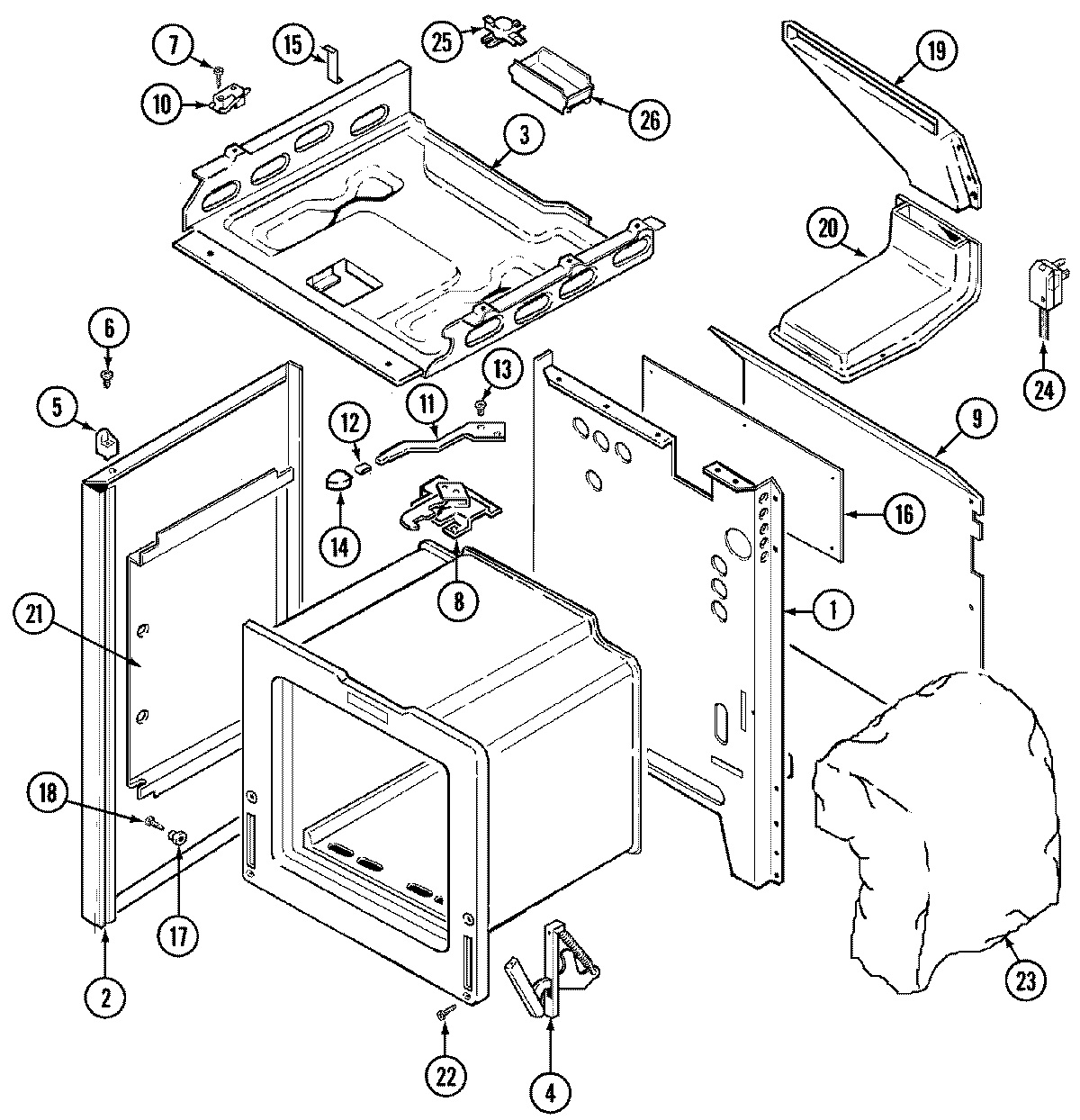

3428PVA-D 01 – BODY

Products

Position	Product
1	MAY 74002364
2	MAY 74001885
3	MAY 74002685
4	MAY 7106P055-60
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7101P313-60
7	MAY 7101P330-60
8	MAY 74003139
8	MAY 4804F028-60
8	MAY 7101P280-60
8	MAY 8002P027-60
8	MAY 74001069
8	MAY 74001084
9	MAY 4005F331-51
10	MAY 7003P063-60
10	MAY 7403P361-60
11	LEVER, LATCH (BLK)
11	MAY 8009P029-60
12	MAY 7112P112-60
13	SCREW, LEVER
14	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
14	MAY 74001719
15	MAY 3807F431-45
16	MAY 3604F165-51
16	SCREW
17	MAY 8004P024-60
18	MAY 74001449
19	SCREW (8BX3/8-NI)
19	MAY 4022W007-19
20	MAY 74002367
20	WP74003976 Whirlpool Screw
21	MAY 74002599
22	SCREW (10-24X5/16-NI)
23	MAY 74001800
23	MAY 4804F036-60
23	MAY 74003037
24	MAY 7402P043-60
25	SCREW
25	MAY 7403P275-60
26	MAY 3807F420-51
