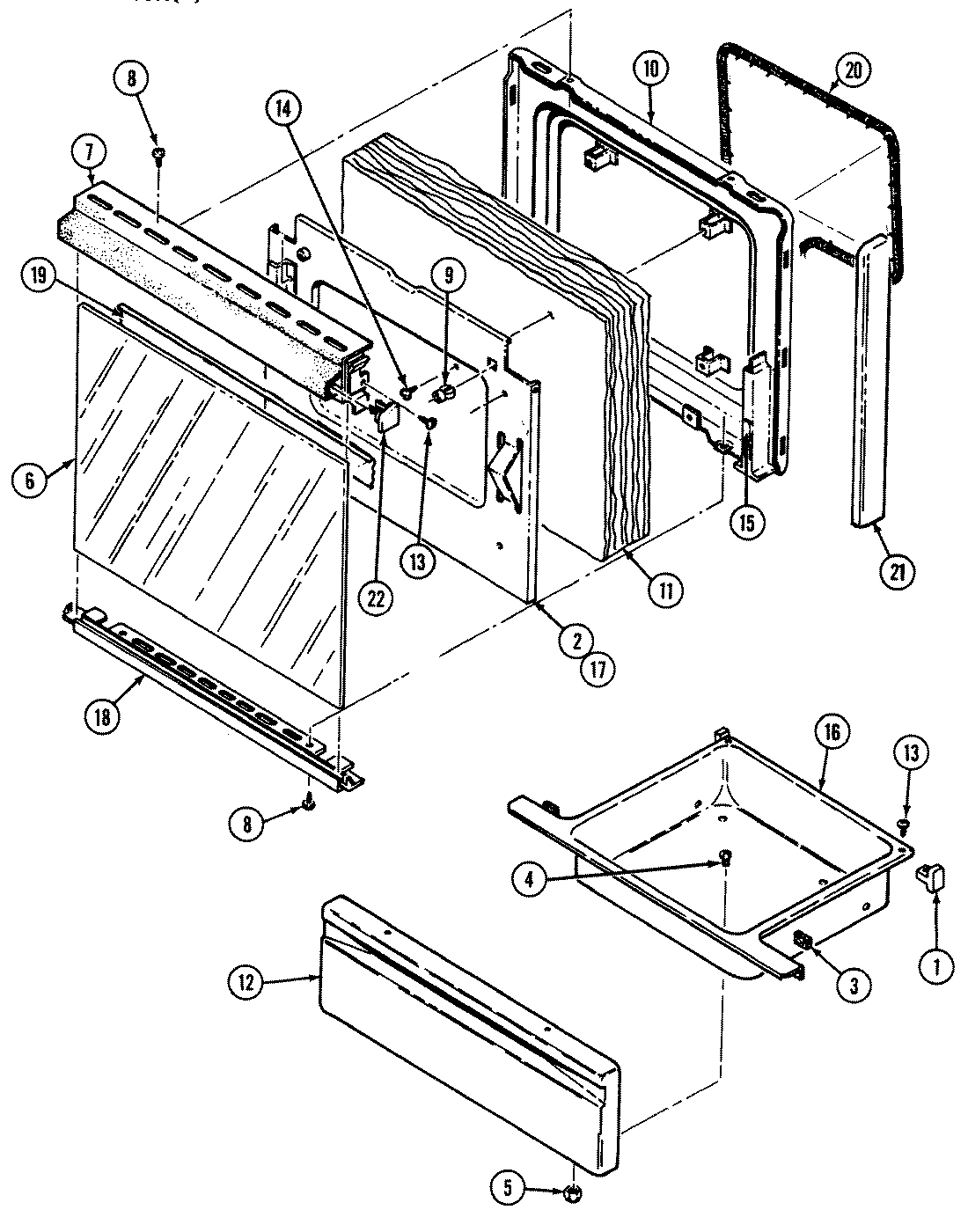

3442SRA 03 – DOOR/DRAWER (3442SRx)

3442SRA 03 – DOOR/DRAWER (3442SRx)

Written by

in

3442SRA 03 – DOOR/DRAWER (3442SRx)

Products

PositionProduct
1WP8004P026-60 Whirlpool Support
2MAY 3601F218-45
3MAY 8010P086-60
4WP4159193 Whirlpool Screw
5WPW10131078 Whirlpool Nut Assembly
6MAY 7902P325-60
7MAY 7701P103-60
8WP98008545 Whirlpool Screw
9MAY 8010P075-60
10MAY 2402W200-19
11MAY 4804F012-60
12MAY 2416F038-64
12LINING, DRAWER PANEL
13MAY 7101P291-60
14MAY 7101P290-60
15MAY 7208P011-60
16MAY 3405F014-80
17MAY 8010P085-60
18MAY 7744P078-60
19TAPE, FOIL (3“ WIDE)
20GASKT-DOOR OVEN
21MAY 7744P055-60
22MAY 7744P075-60
22MAY 7744P076-60
