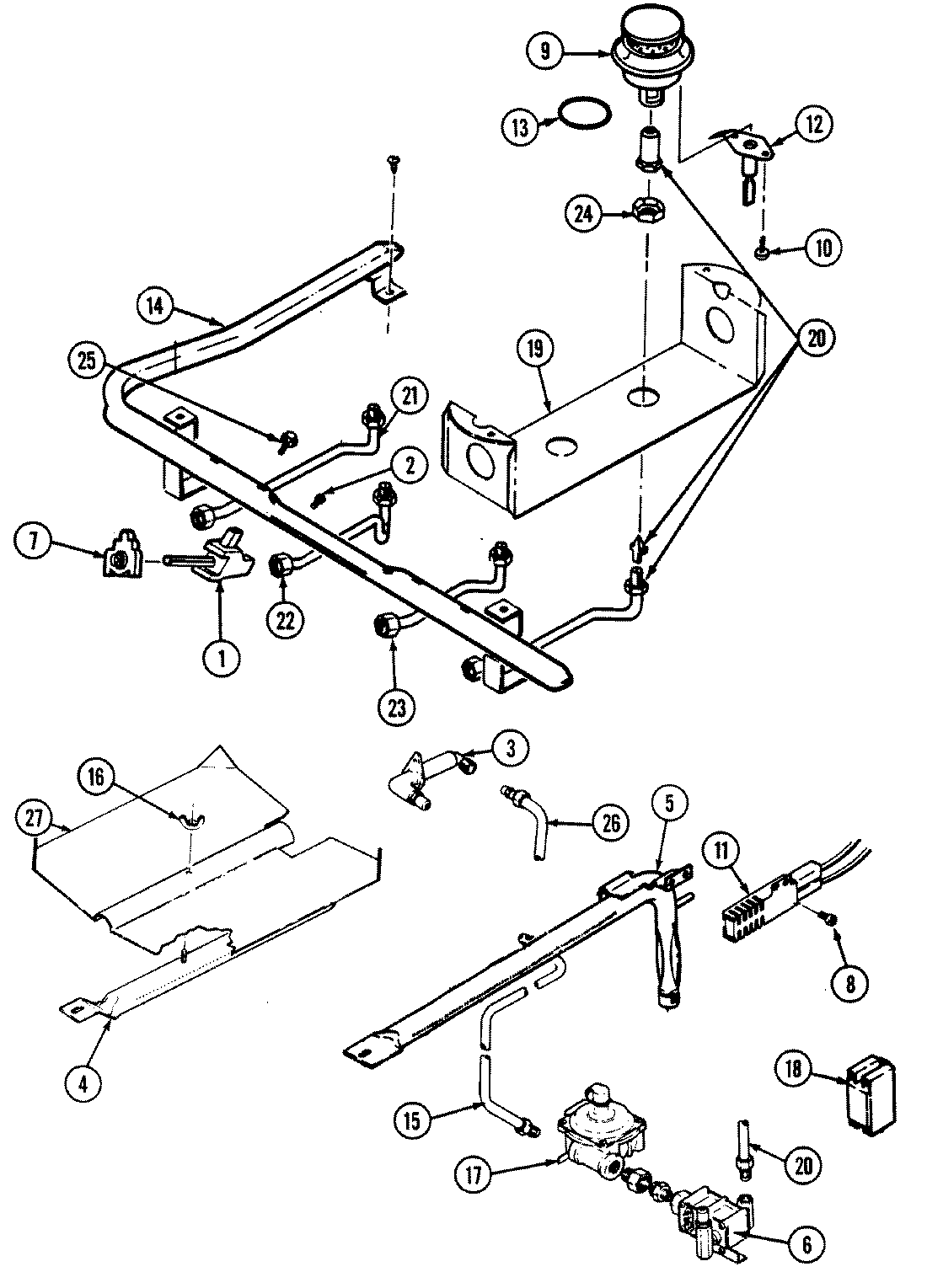

3448SRA 04 – GAS CONTROLS

Products

Position	Product
1	MAY 7502P219-60
2	MAY 7101P044-60
3	MAY 7507P088-60
3	MAY 3605F186-45
4	MAY 3403D043-45
4	MAY 3403D024-45
5	MAY 3807F446-45
6	MAY 4005F334-51
6	WP74006427 Whirlpool Oven Valve
7	MAY 7403P284-60
8	SCREW (10-24X5/16-NI)
9	WP3412D024-09 Whirlpool Oven Burner Head
10	MAY 7101P315-60
11	MAY 4005F421-45
11	MAY 7432P076-60
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13	MAY 7201P050-60
14	MAY 7513P120-60
15	MAY 7103P130-60
15	MAY 3414F103-44
16	NUT, WING
17	MAY 7510P063-60
18	MAY 3807F421-51
18	MAY 7431P024-60
19	MAY 3807F444-45
20	MAY 7507P085-60
21	MAY 7507P113-60
22	MAY 7507P084-60
23	MAY 7507P091-60
24	MAY 7103P119-60
25	MAY 7101P296-60
26	MAY 3414F102-44
27	MAY 5125A312-60
27	MAY 3601F217-45
27	MAY 5140D035-60
