3448STA 06 – TOP ASSEMBLY – Aparts

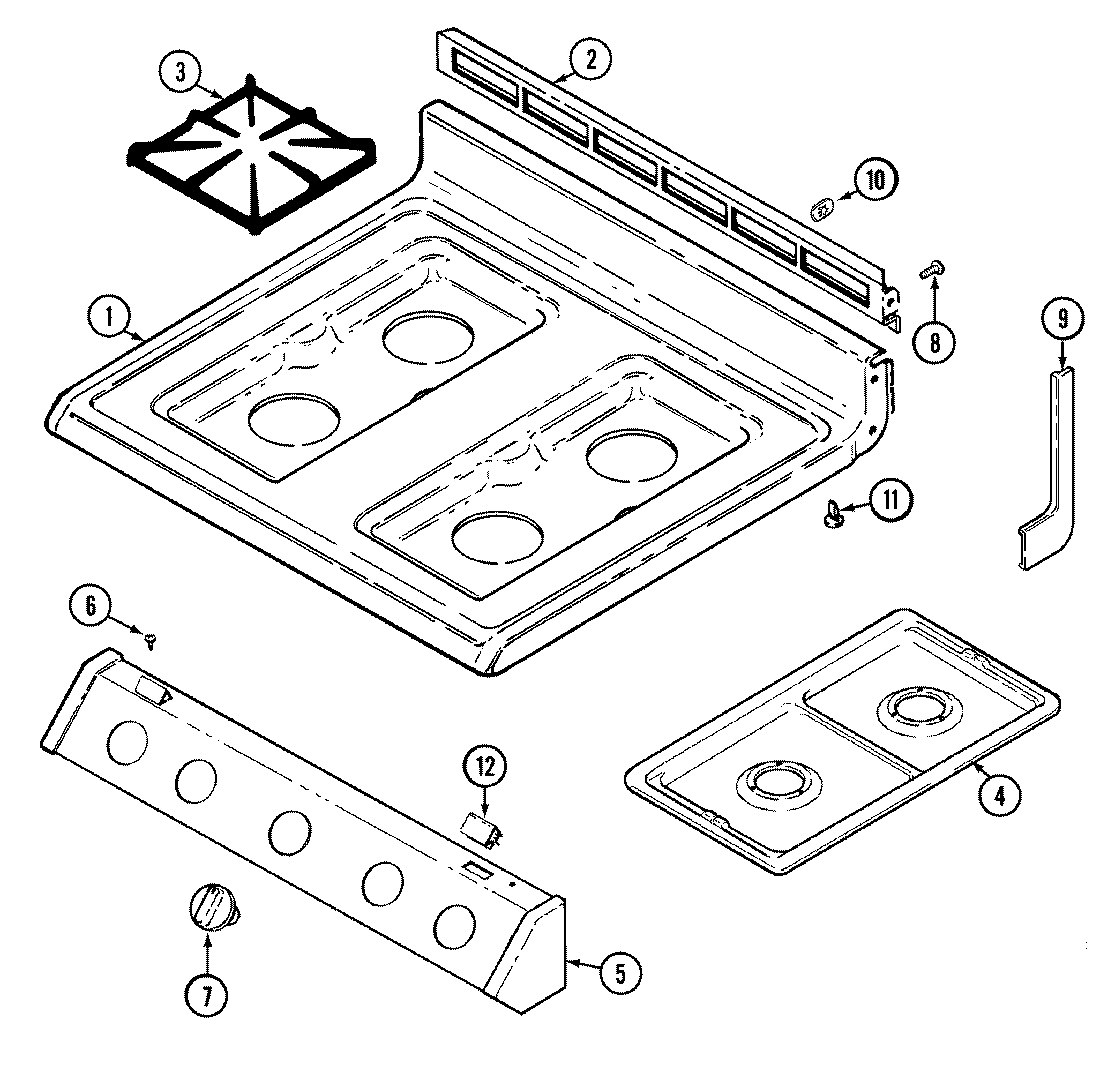

3448STA 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 2001W082-84
1	MAY 7101P343-60
2	MAY 3608F042-09
3	MAY 74001653
3	WP7518P464-60 Whirlpool Burner Grate
3	MAY 2003W027-00
4	MAY 5401A452-60
5	MAY 7712P135-60
6	MAY 7101P074-60
7	MAY 7733P027-60
8	SCREW (10ABX1/4P TR ZN)
9	MAY 7746P031-60
9	MAY 8270P095-60
9	MAY 7746P030-60
10	WP3195558 Whirlpool Nut
11	MAY 8016P015-60
12	MAY 7112P087-60
