3448STW 03 – DOOR/DRAWER (3448STx)

3448STW 03 – DOOR/DRAWER (3448STx)

Written by

in

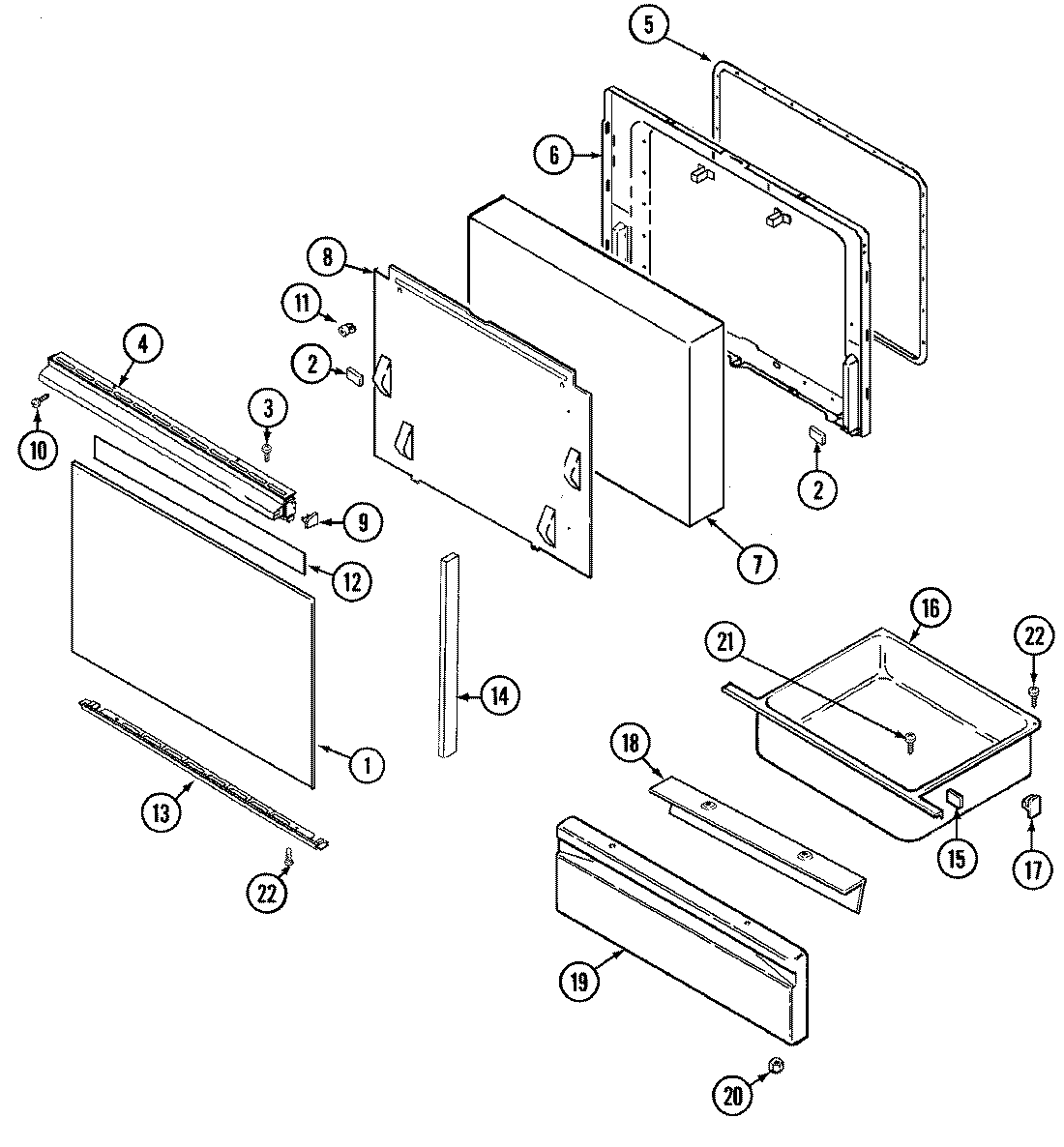

3448STW 03 – DOOR/DRAWER (3448STx)

Products

PositionProduct
1MAY 7902P325-60
2MAY 8010P085-60
3WP98008545 Whirlpool Screw
4MAY 7701P103-60
5GASKT-DOOR OVEN
6MAY 2402W210-19
7MAY 4804F051-60
8MAY 3601F218-51
9MAY 7744P076-60
9MAY 7744P075-60
10WP3387230 Whirlpool Screw
11MAY 7103P045-60
12MAY 8270P078-60
13MAY 7744P105-60
14MAY 7744P055-60
15MAY 7208P011-60
16MAY 3405F018-80
17WP8004P026-60 Whirlpool Support
18LINING, DRAWER PANEL
19MAY 2416F038-62
20WPW10131078 Whirlpool Nut Assembly
21WP7101P072-60 Whirlpool Screw
22SCREW
