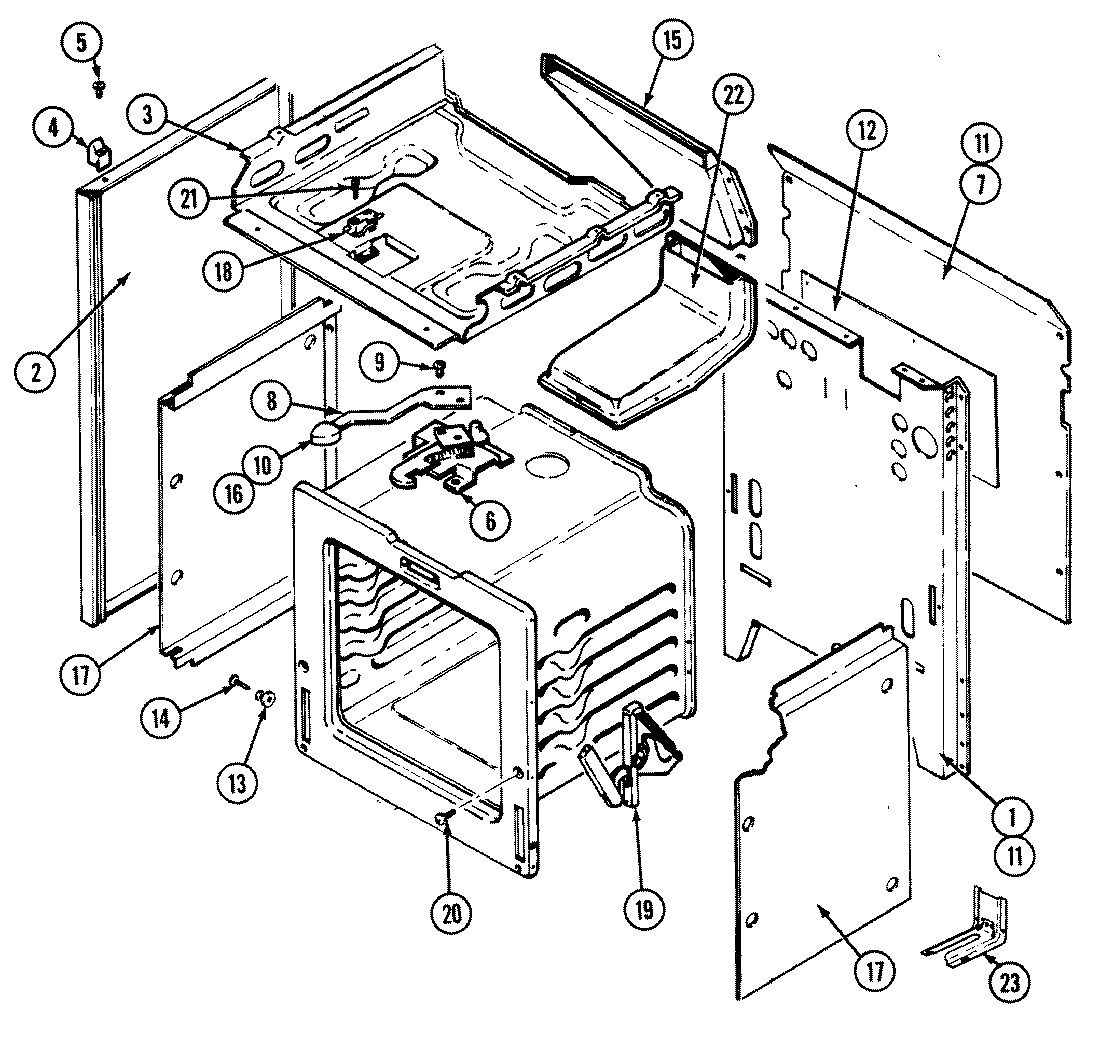

3448XPA 01 – BODY

Products

Position	Product
1	MAY 4002F188-80
1	MAY 7403P275-60
2	MAY 2618F099-74
2	MAY 2618F085-74
3	MAY 4011F223-80
4	SPACER, MAIN TOP (LT)
4	SPACER, MAIN TOP (RT)
5	MAY 7118P013-60
6	MAY 8002P024-60
6	MAY 4804F028-60
7	MAY 4005F331-51
8	MAY 8009P015-60
9	SCREW, LEVER
10	MAY 7701P088-60
11	MAY 7101P290-60
12	MAY 3604F165-51
13	MAY 8004P024-60
14	MAY 7101P300-60
15	MAY 4022W005-19
16	MAY 7112P003-60
17	MAY 3804F103-51
18	MAY 7403P228-60
18	MAY 3801F267-45
19	MAY 7106P033-60
19	MAY 7106P049-60
20	SCREW, HINGE
20	WP4159193 Whirlpool Screw
21	MAY 7101P031-60
22	MAY 4006W113-45
23	MAY 3801F218-51
23	MAY 7101P289-60
23	MAY 7402P043-60
24	MAY 7430P009-60
