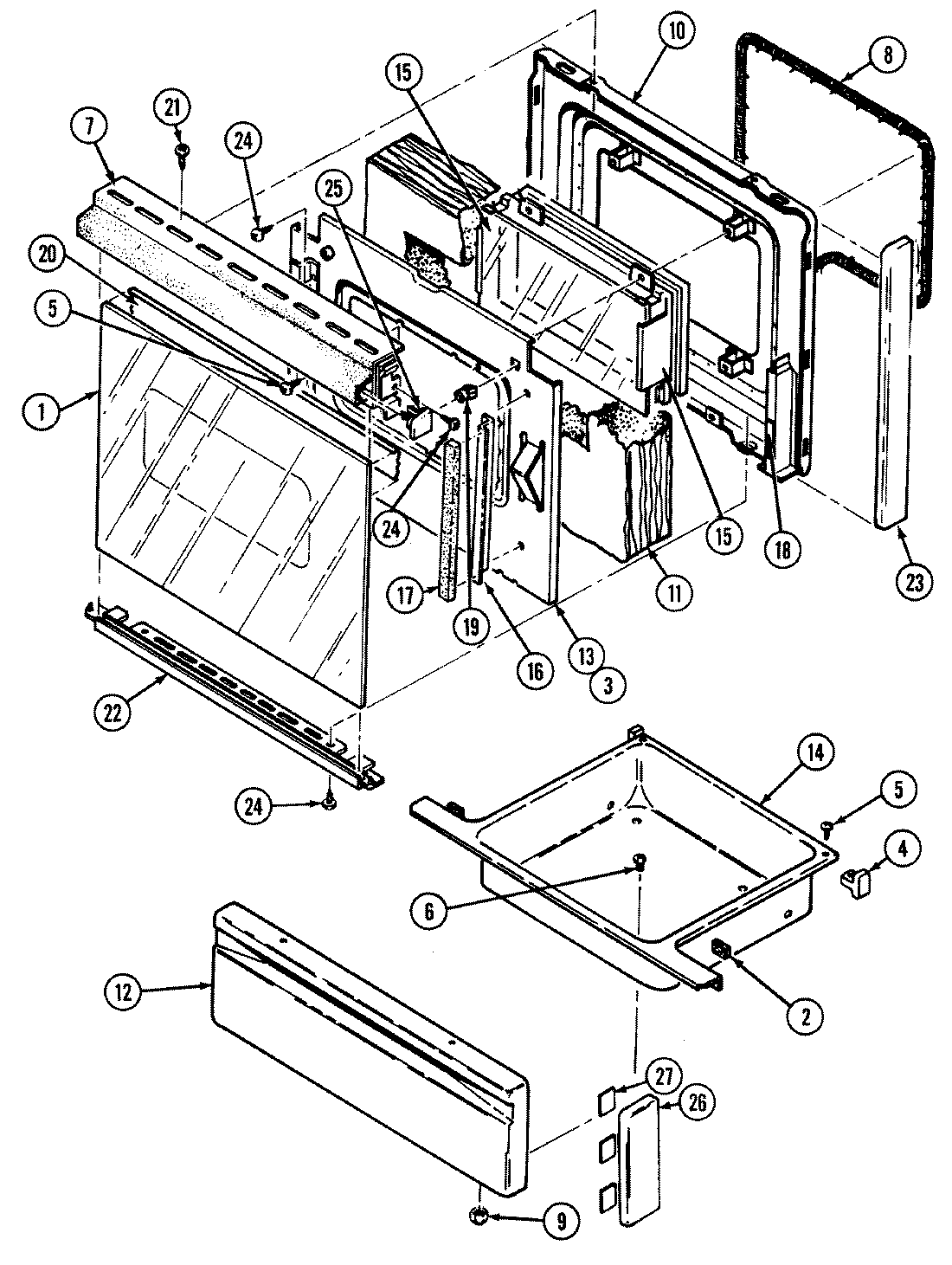

| 1 | MAY 7902P321-60 |
| 2 | MAY 8010P086-60 |
| 3 | MAY 8010P085-60 |
| 4 | WP8004P026-60 Whirlpool Support |
| 5 | MAY 7101P291-60 |
| 6 | WP4159193 Whirlpool Screw |
| 7 | MAY 7701P103-60 |
| 8 | GASKT-DOOR OVEN |
| 9 | WPW10131078 Whirlpool Nut Assembly |
| 10 | MAY 2402W202-19 |
| 11 | MAY 4804F012-60 |
| 12 | MAY 2416F038-64 |
| 12 | LINING, DRAWER PANEL |
| 13 | MAY 3601F219-45 |
| 14 | MAY 3405F014-80 |
| 15 | MAY 7907P014-60 |
| 16 | MAY 3818F052-51 |
| 17 | MAY 7208P002-60 |
| 18 | MAY 7208P011-60 |
| 19 | MAY 8010P075-60 |
| 20 | TAPE, FOIL (3`` WIDE) |
| 21 | WP98008545 Whirlpool Screw |
| 22 | MAY 7744P105-60 |
| 23 | MAY 7744P055-60 |
| 24 | MAY 7101P290-60 |
| 25 | MAY 7744P076-60 |
| 25 | MAY 7744P075-60 |
| 27 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
