3448XRA 02 – CONTROL PANEL – Aparts

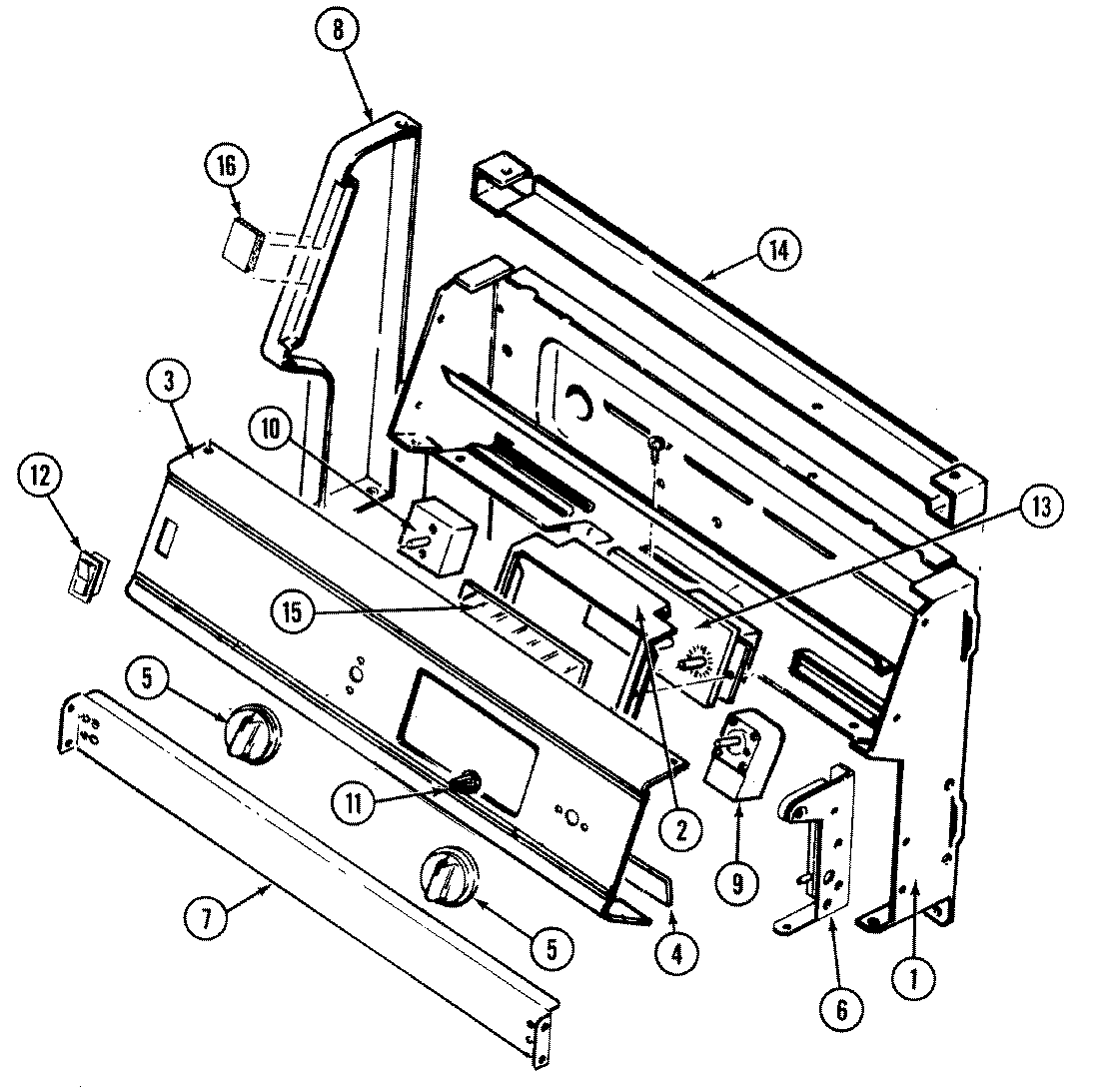

3448XRA 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F097-51
1	SCREW
2	MAY 3801F249-45
3	MAY 7703P245-60
3	WPY706189 Whirlpool Stove Screw
4	MAY 8036P003-60
5	MAY 7737P028-60
6	MAY 3807F423-51
6	MAY 3807F424-51
7	MAY 3604F188-09
8	MAY 7726P050-60
8	MAY 7726P046-60
8	SCREW (8BX3/8-NI)
8	WP3195558 Whirlpool Nut
9	MAY 7404P077-60
9	MAY 7404P097-60
10	MAY 7403P236-60
11	MAY 7711P466-60
12	7403P067-60 Whirlpool Light Switch
13	MAY 7601P170-60
13	MAY 7118P015-60
14	MAY 4001F064-51
15	MAY 7902P109-60
15	MAY 7201P056-60
16	MAY 5180D155-60
16	MAY 16000329
16	MAY 8010P085-60
16	MAY 5125A363-60
16	MAY 8113P014-60
