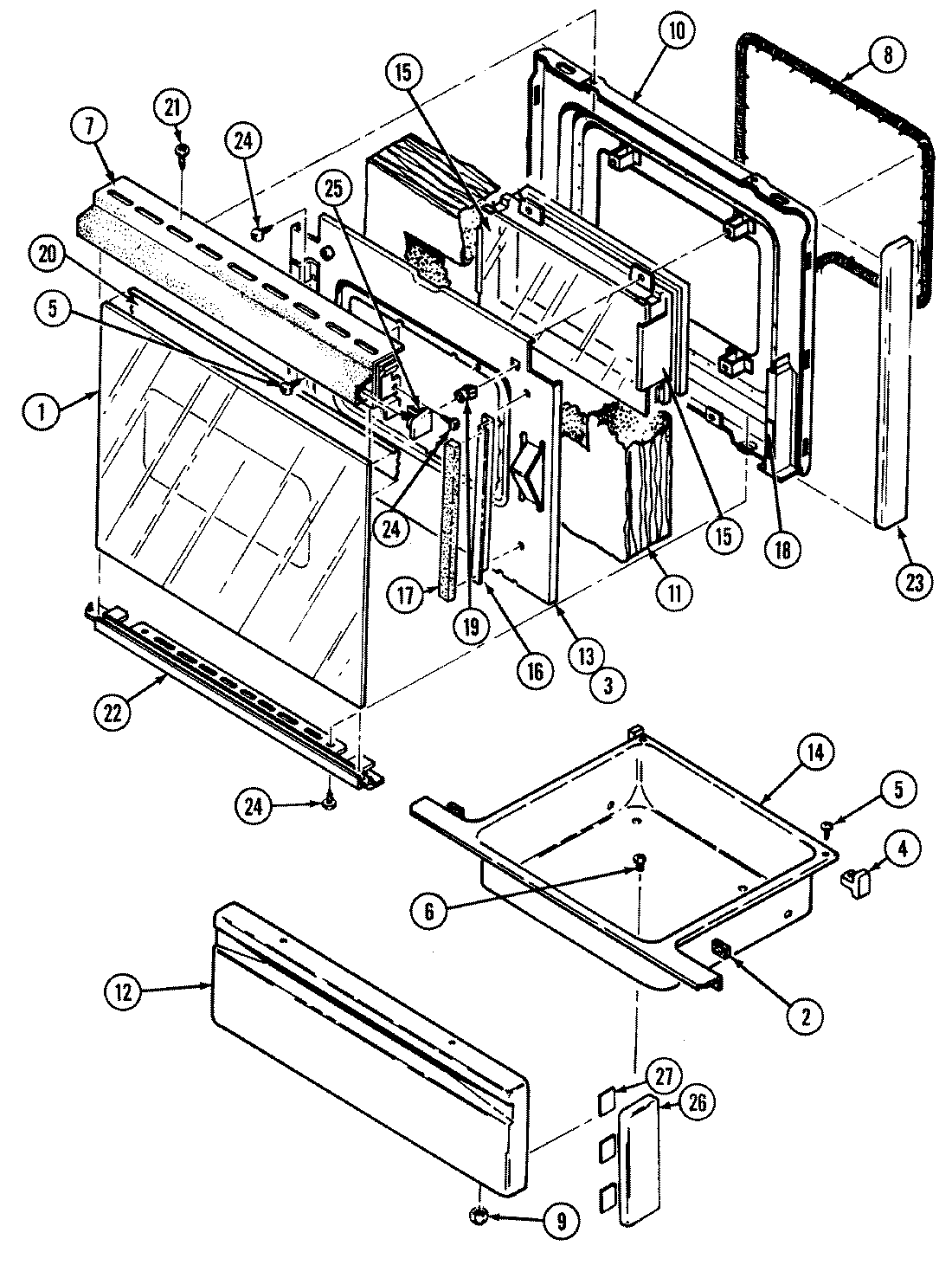

3448XRA 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P321-60
2	MAY 8010P086-60
3	MAY 8010P085-60
4	WP8004P026-60 Whirlpool Support
5	MAY 7101P291-60
6	WP4159193 Whirlpool Screw
7	MAY 7701P103-60
8	GASKT-DOOR OVEN
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 2402W202-19
11	MAY 4804F012-60
12	MAY 2416F038-64
12	LINING, DRAWER PANEL
13	MAY 3601F219-45
14	MAY 3405F014-80
15	MAY 7907P014-60
16	MAY 3818F052-51
17	MAY 7208P002-60
18	MAY 7208P011-60
19	MAY 8010P075-60
20	TAPE, FOIL (3“ WIDE)
21	WP98008545 Whirlpool Screw
22	MAY 7744P105-60
23	MAY 7744P055-60
24	MAY 7101P290-60
25	MAY 7744P076-60
25	MAY 7744P075-60
27	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
