3448XRW 05 – OVEN

3448XRW 05 – OVEN

Written by

in

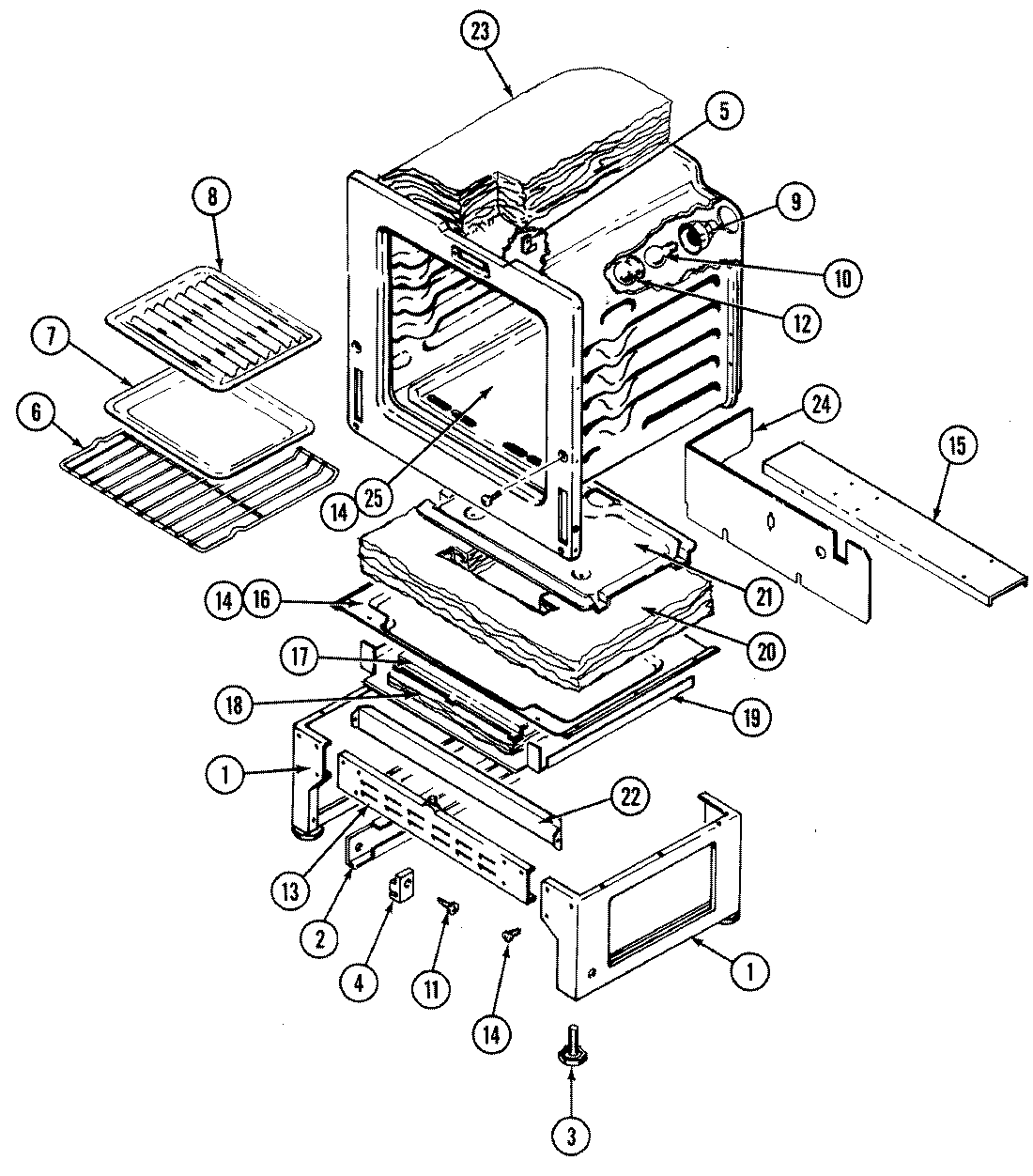

3448XRW 05 – OVEN

Products

Position	Product
1	MAY 4020W011-80
2	MAY 3406F028-51
3	MAY 7101P306-60
4	MAY 8004P025-60
5	WP7112P004-60 Whirlpool Thermal Clip
6	MAY 7801P036-60
7	MAY Y3401F02019
8	MAY Y3413F01619
9	WP7407P182-60 Whirlpool Lamp
10	MAY 7407P091-60
11	SCREW
12	WP9781049 Whirlpool Light Lens
13	MAY 4020F001-80
14	MAY 7101P290-60
15	MAY 3807F443-51
16	MAY 3804F109-51
17	MAY 3604F204-51
18	INSULATION, DRAWER & SHIELD
19	MAY 3604F205-51
20	MAY 4804F014-60
21	MAY 3401F023-45
23	MAY 4804F015-60
23	MAY 4804F016-60
24	MAY 4005F429-51
25	MAY 3601F229-45
25	MAY 5504M004-19
