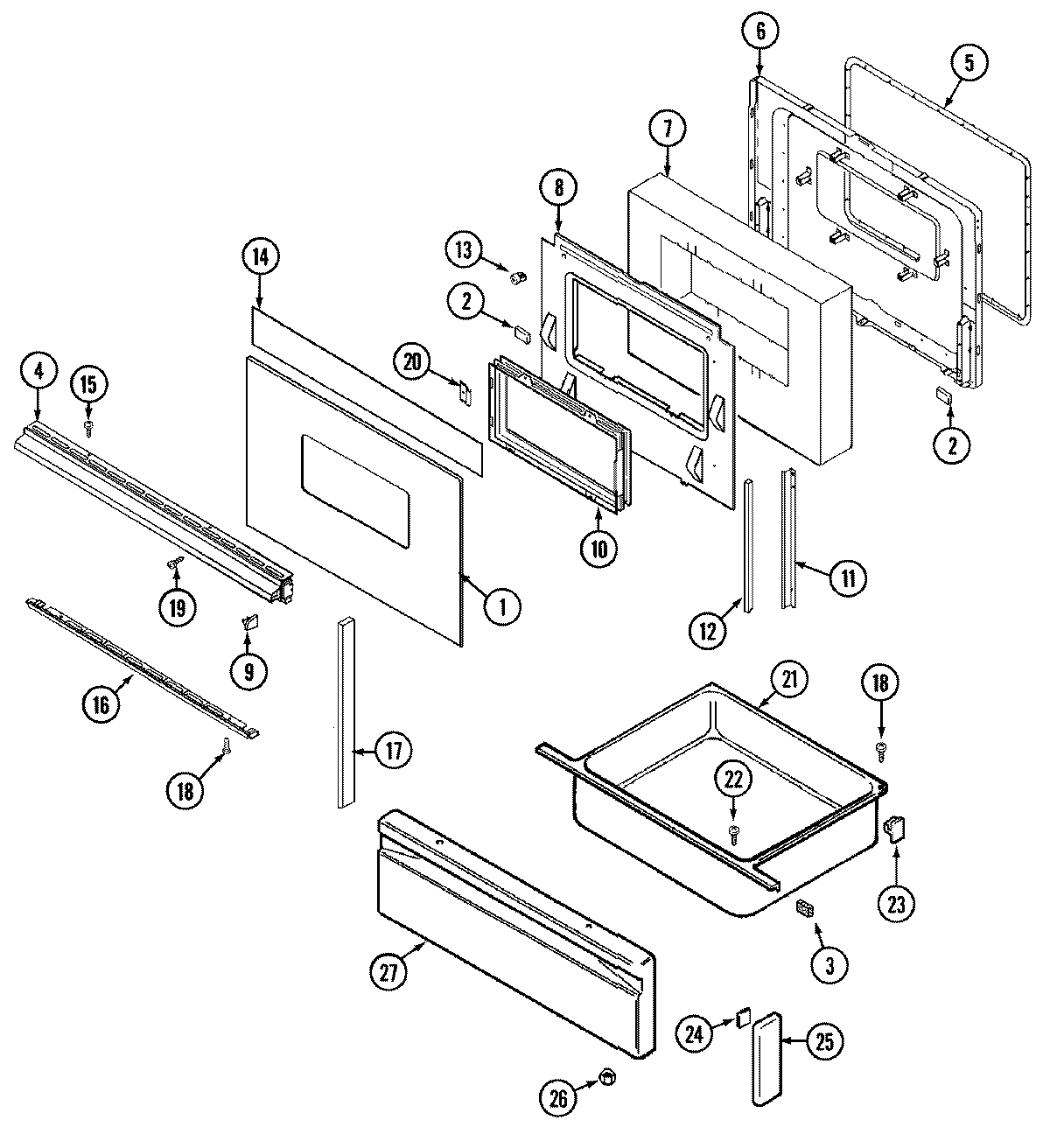

3448XTA 03 – DOOR/DRAWER (3448XTx)

3448XTA 03 – DOOR/DRAWER (3448XTx)

Written by

in

3448XTA 03 – DOOR/DRAWER (3448XTx)

Products

Position	Product
1	MAY 7902P321-60
2	MAY 8010P085-60
3	MAY 7208P011-60
4	MAY 7701P103-60
5	GASKT-DOOR OVEN
6	MAY 2402W202-19
7	MAY 7002P155-60
8	MAY 3601F236-47
9	MAY 7744P076-60
9	MAY 7744P075-60
10	MAY 7907P021-60
11	MAY 3818F052-80
12	MAY 7208P002-60
13	MAY 7103P045-60
14	TAPE, FOIL (3“ WIDE)
15	WP98008545 Whirlpool Screw
16	MAY 7744P078-60
17	MAY 7744P055-60
18	MAY 7101P290-60
19	MAY 7101P291-60
20	MAY 3805F002-34
21	MAY 3405F015-80
22	WP7101P072-60 Whirlpool Screw
23	WP8004P026-60 Whirlpool Support
24	MAY 8270P094-60
25	MAY Y7744P07060
26	WPW10131078 Whirlpool Nut Assembly
27	MAY 2416F038-64
