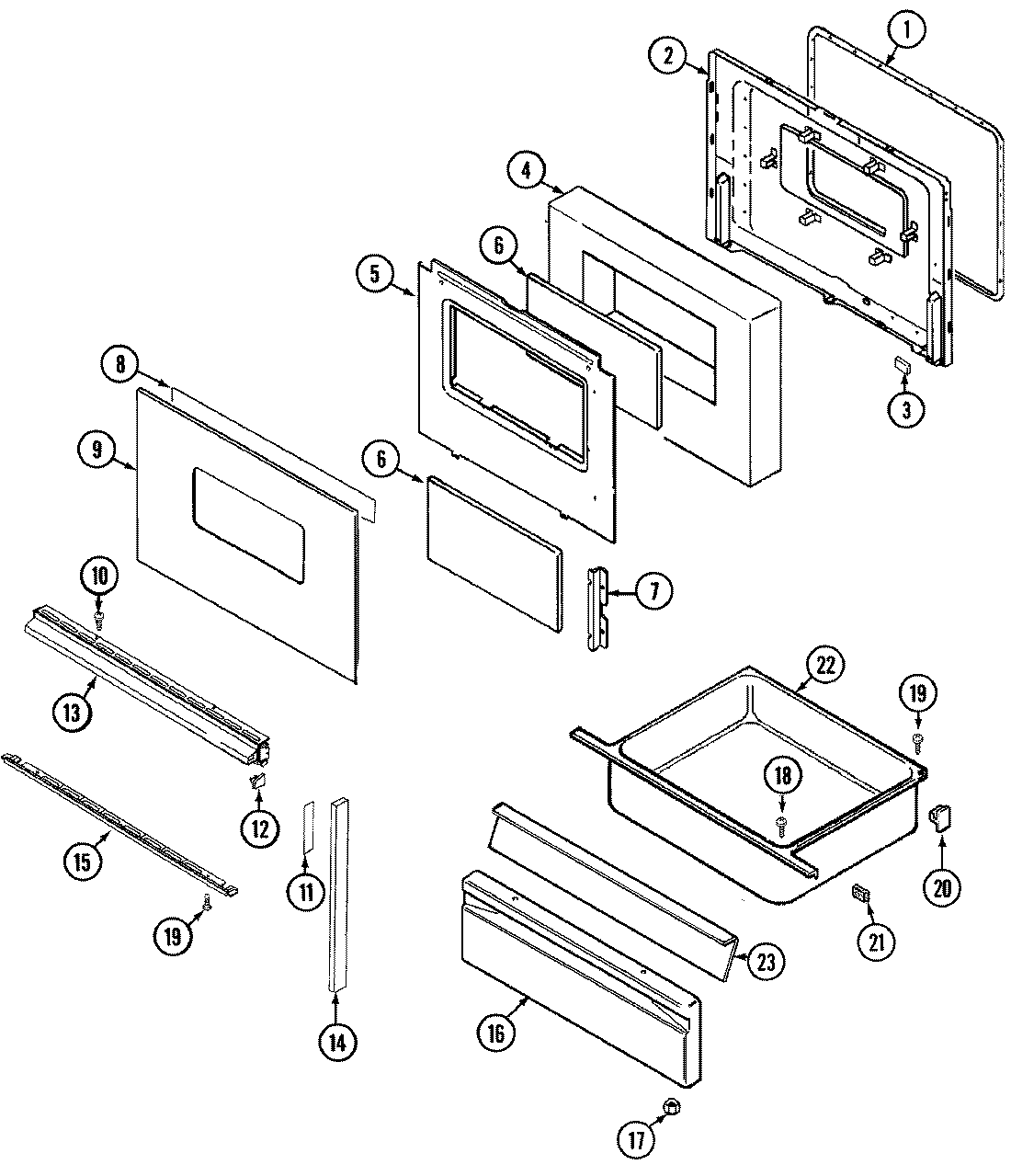

3448XTA 04 – DOOR/DRAWER (SER. PRE. 15 3448XTA,XTW)

3448XTA 04 – DOOR/DRAWER (SER. PRE. 15 3448XTA,XTW)

Written by

in

3448XTA 04 – DOOR/DRAWER (SER. PRE. 15 3448XTA,XTW)

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 2402W209-19
2MAY 74003244
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6MAY 74001841
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 74003431
9MAY 7902P321-60
10WP98008545 Whirlpool Screw
11MAY 8270P093-60
12MAY 7744P075-60
12NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12MAY 7744P076-60
13MAY 74003429
13MAY 7701P103-60
13MAY 7701P144-60
14MAY 7744P055-60
14MAY 74003430
15MAY 74003432
15MAY 7744P105-60
16MAY 2416F038-64
17WPW10131078 Whirlpool Nut Assembly
18WP7101P072-60 Whirlpool Screw
20WP8004P026-60 Whirlpool Support
21MAY 7208P011-60
22MAY 3405F018-80
23SCREW
23LINING, DRAWER PANEL
