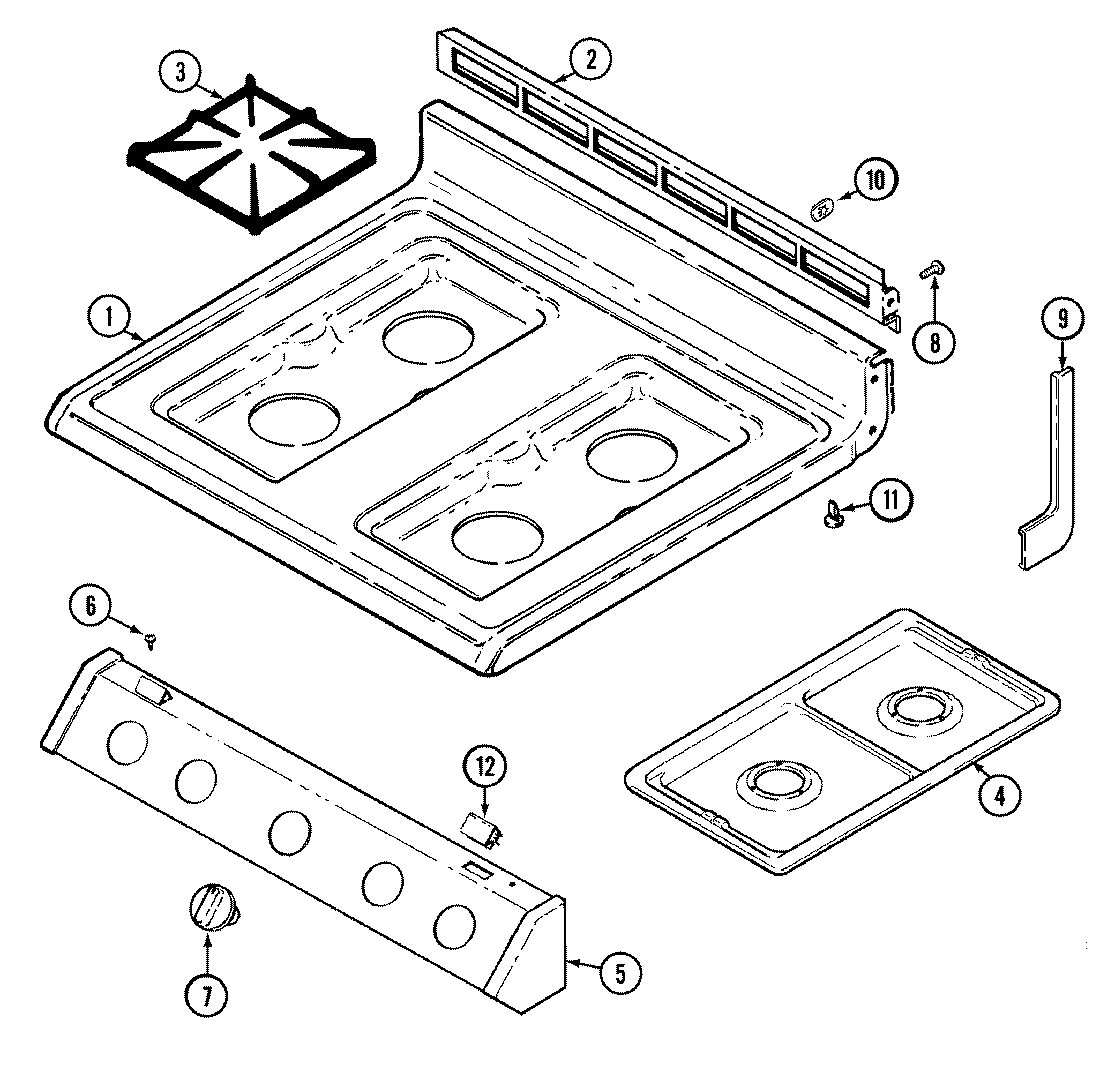

3448XTA 07 – TOP ASSEMBLY

3448XTA 07 – TOP ASSEMBLY

Written by

in

3448XTA 07 – TOP ASSEMBLY

Products

PositionProduct
1MAY 2001W082-84
1MAY 7101P343-60
2MAY 3608F042-09
3MAY 74001653
3WP7518P464-60 Whirlpool Burner Grate
3MAY 2003W027-00
4MAY 5401A452-60
5MAY 7712P135-60
6MAY 7101P074-60
7MAY 7733P027-60
8SCREW (10ABX1/4P TR ZN)
9MAY 7746P031-60
9MAY 8270P095-60
9MAY 7746P030-60
10WP3195558 Whirlpool Nut
11MAY 8016P015-60
12MAY 7112P087-60
