3448XTS 05 – OVEN/BASE (3448XTS) – Aparts

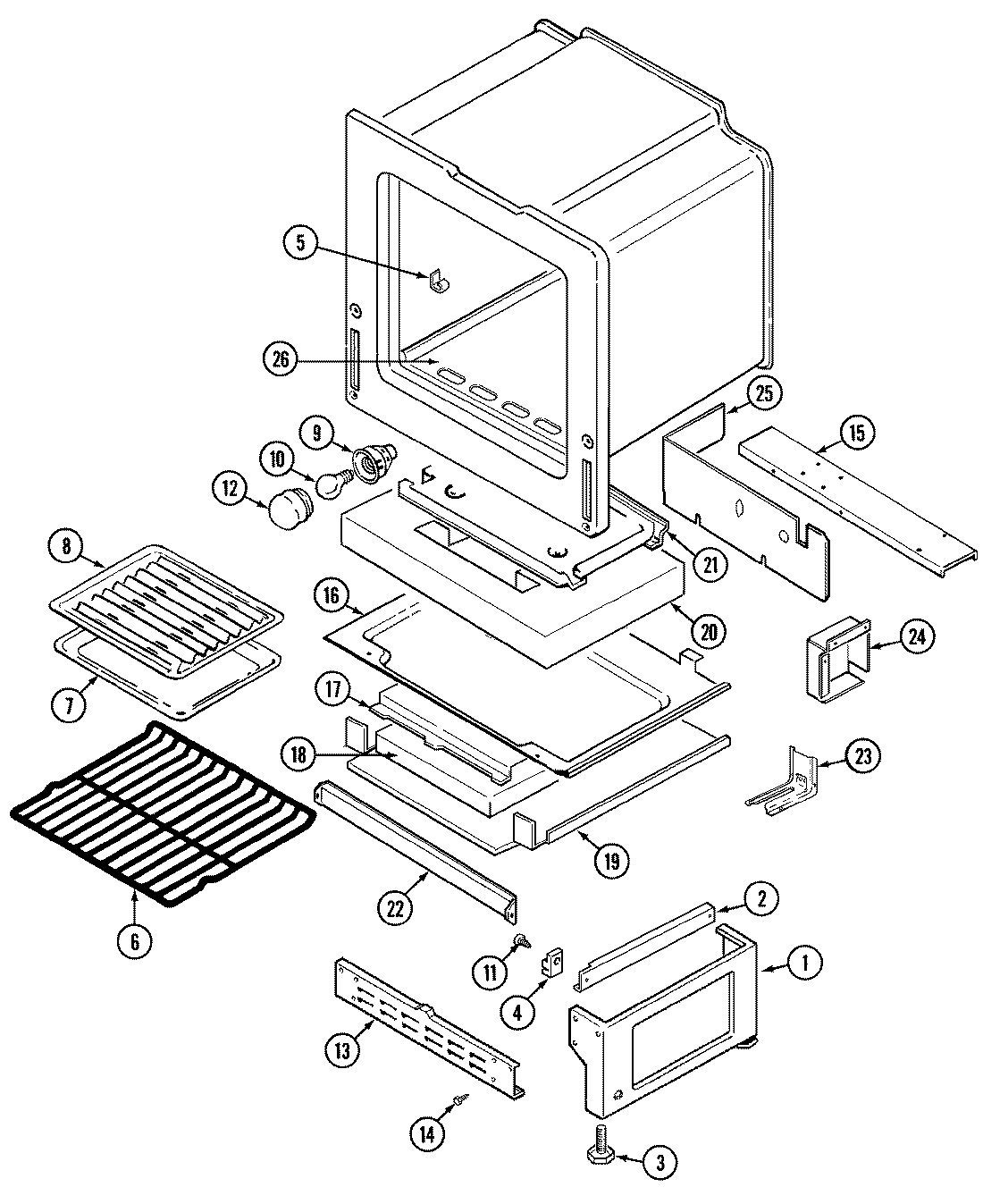

3448XTS 05 – OVEN/BASE (3448XTS)

Products

Position	Product
1	MAY 4020W015-80
1	MAY 74003003
2	MAY 3406F028-51
3	W11665456 Whirlpool Range Level Foot
3	MAY 74001311
4	MAY 8004P033-60
5	WP7112P004-60 Whirlpool Thermal Clip
6	MAY 7801P047-60
7	MAY Y3401F02019
8	MAY Y3413F01619
9	WP7407P182-60 Whirlpool Lamp
10	RANGE ONLY 40W 120V APPL BULB
11	MAY 74001449
12	WP9781049 Whirlpool Light Lens
13	MAY 4020F001-80
15	MAY 3807F476-51
16	MAY 3804F112-51
17	MAY 3604F204-51
18	INSULATION, DRAWER & SHIELD
19	MAY 3604F205-51
20	MAY 4804F014-60
21	MAY 74001651
22	BAFFLE, OVEN FRONT
23	MAY 7101P344-60
23	MAY 3801F218-51
24	MAY 3807F473-51
25	MAY 4005F429-51
26	MAY 5504M004-19
26	BAFFLE, OVEN BOTTOM
27	SCREW
27	MAY 7111P006-60
