3458KVW 03 – DOOR/DRAWER (3458KVx) – Aparts

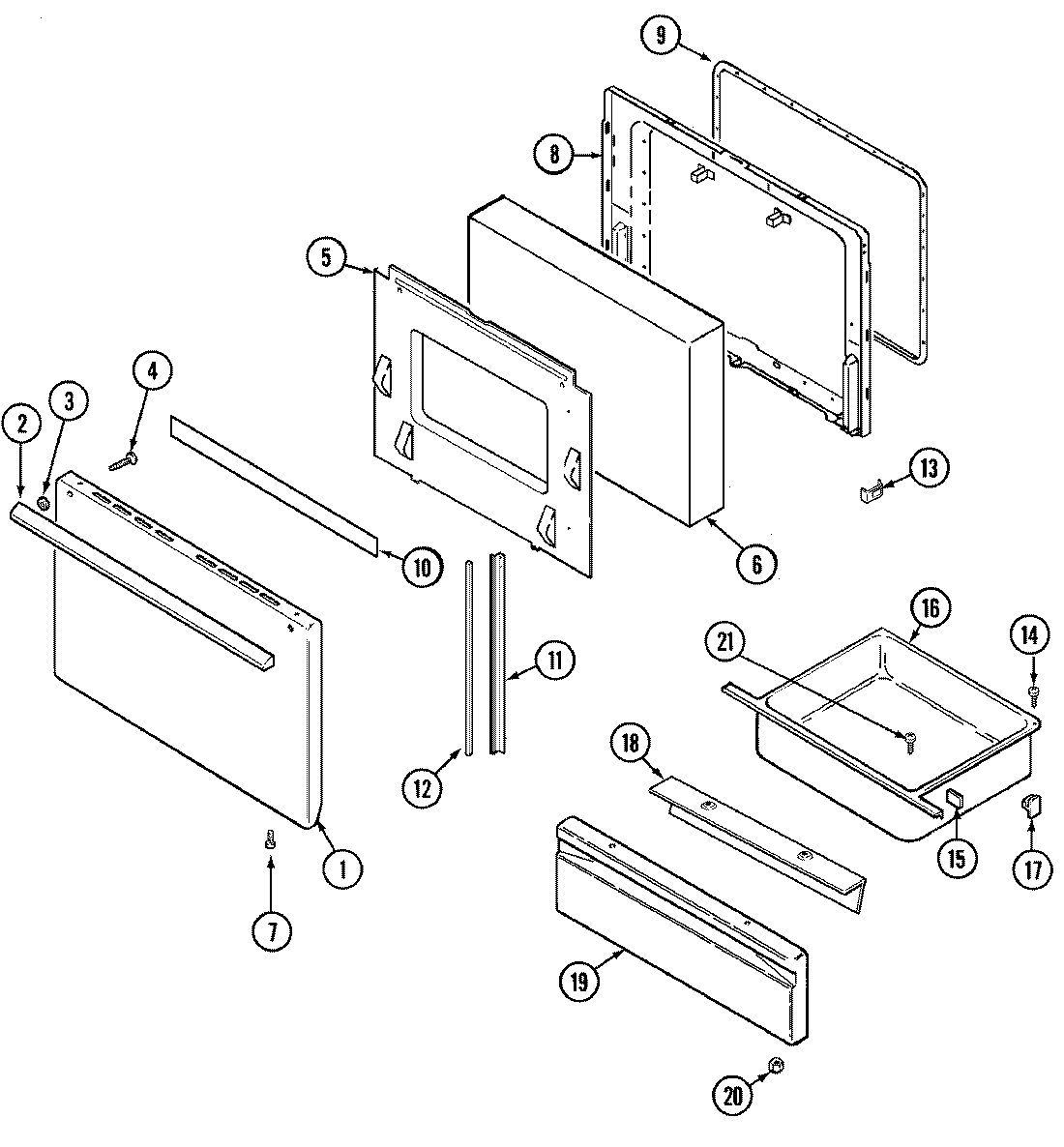

3458KVW 03 – DOOR/DRAWER (3458KVx)

Products

Position	Product
1	MAY 74002092
2	WP2411F013-70 Whirlpool Door Handle
3	MAY 8010P084-60
4	MAY 7101P080-60
5	MAY 3601F218-51
6	MAY 4804F051-60
8	MAY 74003245
8	MAY 2402W210-19
9	GASKT-DOOR OVEN
10	MAY 8270P078-60
11	MAY 3818F052-80
12	MAY 7208P002-60
13	CLIP, DOOR
15	MAY 7208P011-60
16	MAY 3405F018-80
17	WP8004P026-60 Whirlpool Support
18	LINING, DRAWER PANEL
18	SCREW
19	MAY 2416F038-62
20	WPW10131078 Whirlpool Nut Assembly
21	WP7101P072-60 Whirlpool Screw
