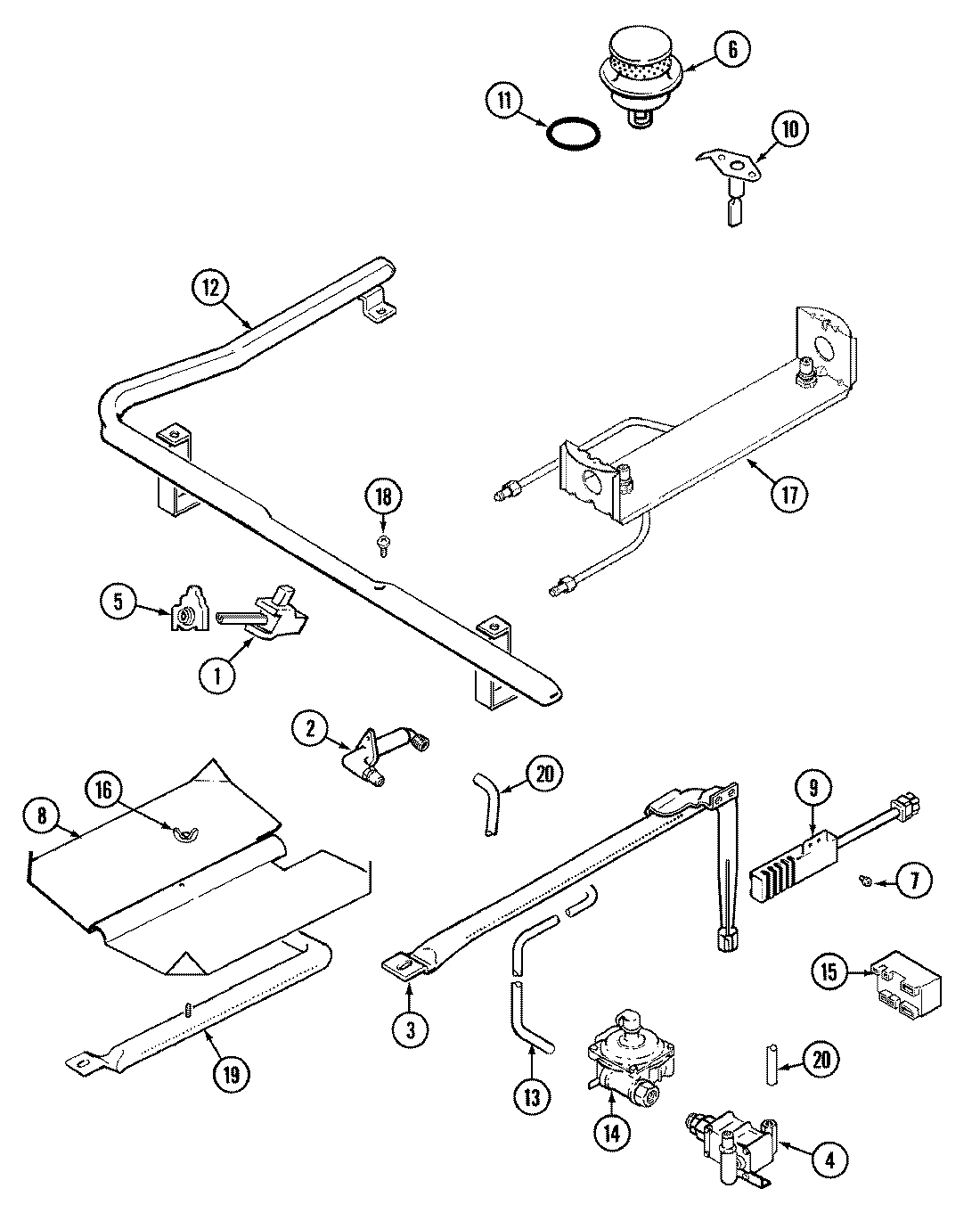

3458SVA 04 – GAS CONTROLS

Products

Position	Product
1	MAY 7502P219-60
2	MAY 7507P088-60
2	WP3387230 Whirlpool Screw
2	MAY 3605F186-45
3	MAY 4005F429-51
3	MAY 3403D043-45
3	MAY 3807F446-45
4	WP74006427 Whirlpool Oven Valve
5	MAY 7403P284-60
6	MAY 7101P343-60
6	MAY 3412D018-09
8	MAY 3601F217-47
9	MAY 7432P076-60
9	MAY 4005F421-45
9	WP3351614 Whirlpool Screw
10	MAY 7101P315-60
11	MAY 7201P050-60
12	MAY 7513P120-60
13	MAY 3414F103-44
14	WP74006429 Whirlpool Regulator
15	MAY 3807F473-51
15	SCREW
15	MAY 74003288
15	MAY 7431P027-60
16	NUT, WING
17	MAY 5187D025-60
18	MAY 7101P044-60
19	MAY 3403D024-45
20	MAY 3414F102-44
20	MAY 1555258K
20	MAY 7103P130-60
21	MAY 5140D035-60
21	MAY 5125A312-60
22	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
