3458XVA 06 – TOP ASSEMBLY – Aparts

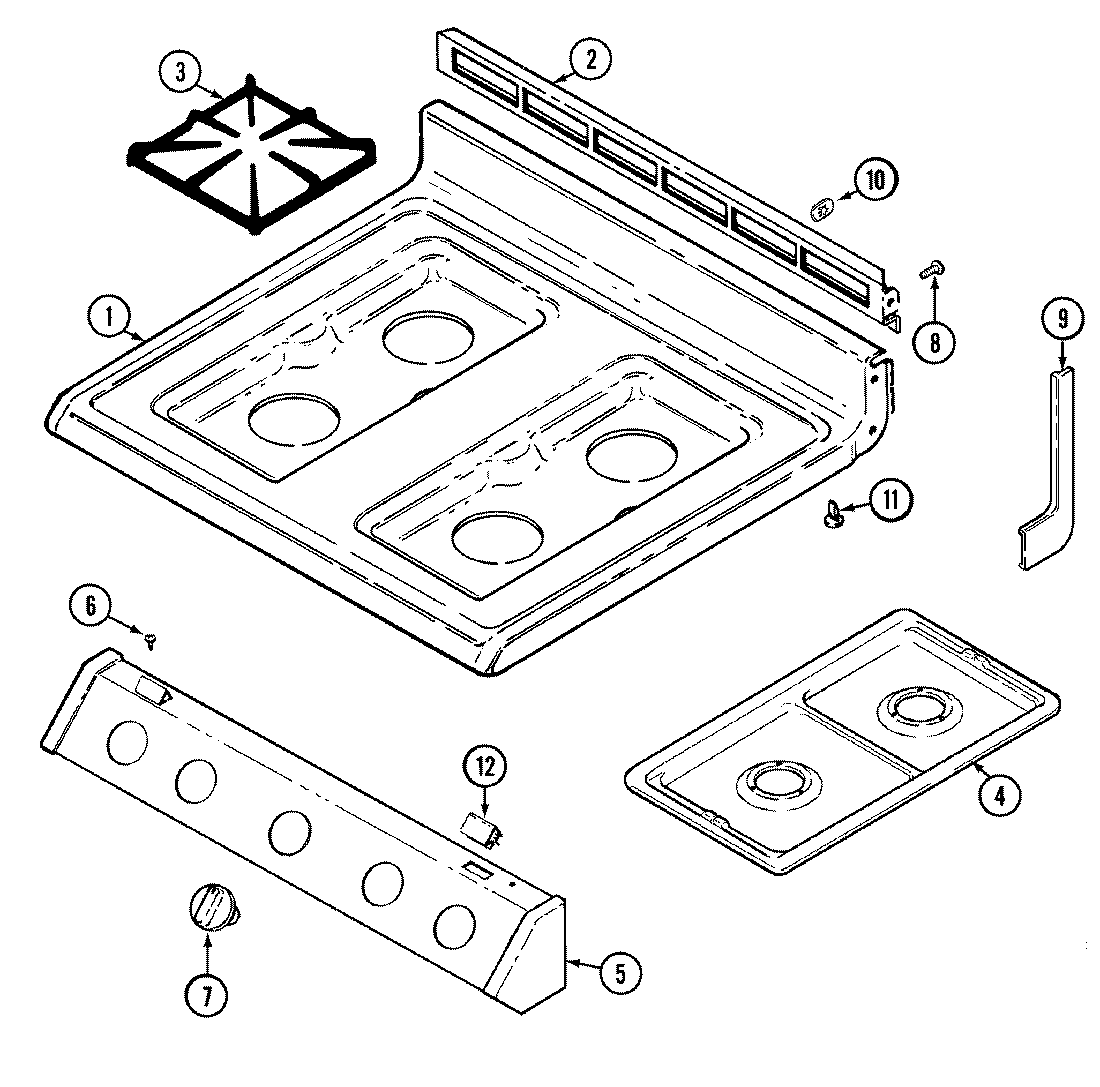

3458XVA 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 7101P343-60
1	MAY 2001W085-84
2	MAY 3608F042-09
3	WP2003X030-00 Whirlpool Burner Grate
4	MAY 5401A452-60
5	MAY 74002085
6	MAY 7101P074-60
7	MAY 7733P027-60
8	SCREW (10ABX1/4P TR ZN)
9	MAY 7746P030-60
9	MAY 7746P031-60
9	MAY 8270P095-60
10	WP3195558 Whirlpool Nut
11	MAY 8016P015-60
12	MAY 7112P087-60
