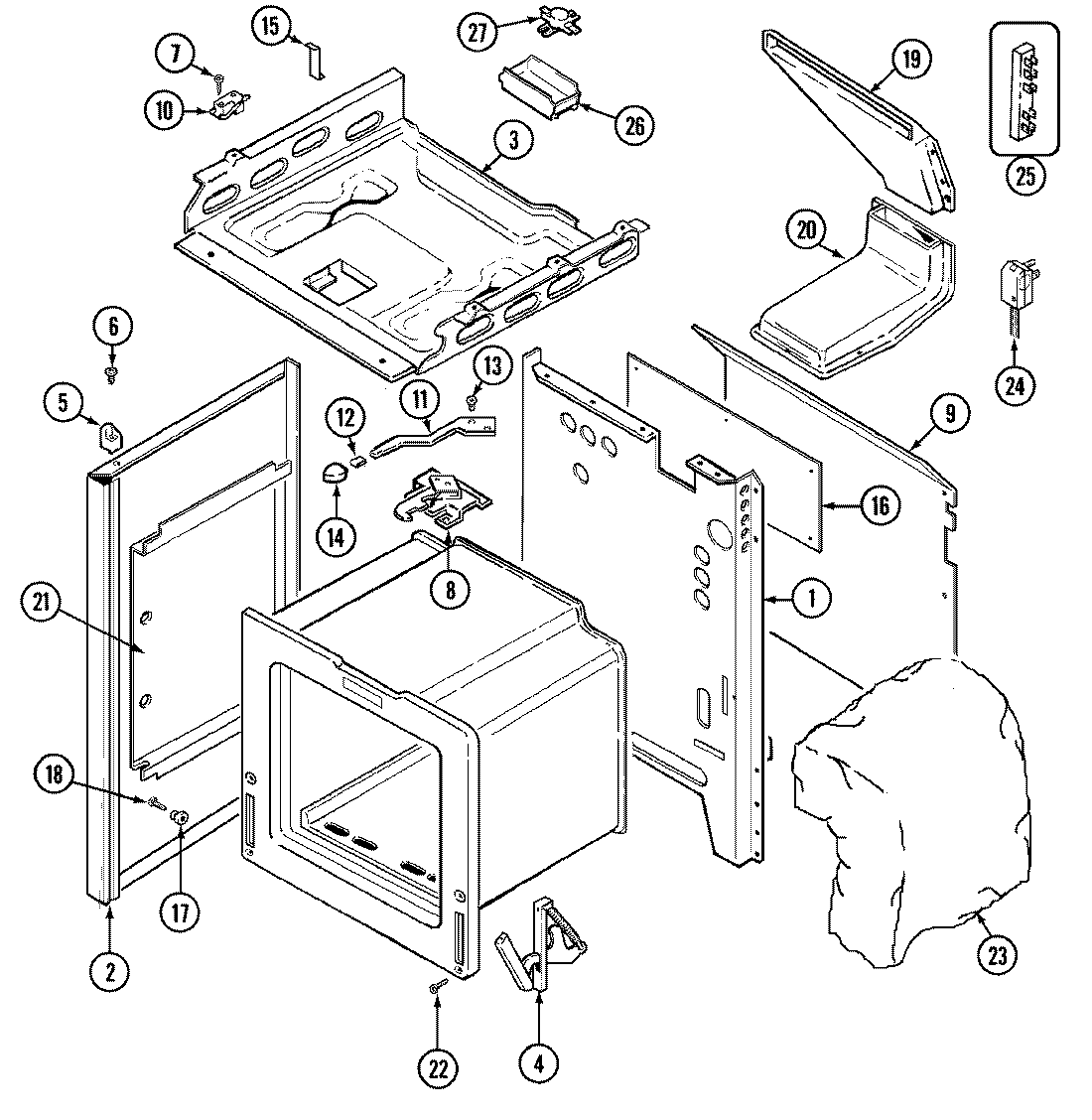

3458XVS 01 – BODY

Products

Position	Product
1	MAY 4002F211-80
1	MAY 8008P021-60
2	MAY 74001907
3	MAY 4011F250-80
4	MAY 7106P056-60
4	WP74011140 Whirlpool Oven Hinge
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7101P313-60
7	MAY 7101P330-60
8	MAY 7003P063-60
8	MAY 4804F028-60
8	MAY 74001084
8	MAY 7101P280-60
8	MAY 8002P027-60
8	MAY 74001069
9	MAY 4005F331-51
10	MAY 7403P361-60
11	MAY 8009P029-60
11	LEVER, LATCH (BLK)
12	MAY 7112P112-60
13	SCREW, LEVER
14	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
14	MAY 74001719
15	MAY 3807F431-45
16	MAY 3604F165-51
17	MAY 8004P024-60
18	MAY 74001449
19	MAY 4022W007-19
19	SCREW (8BX3/8-NI)
20	WP74003976 Whirlpool Screw
20	MAY 4006W113-45
21	MAY 3804F103-51
22	SCREW (10-24X5/16-NI)
23	MAY 74001800
23	MAY 4804F036-60
24	MAY 7402P043-60
25	MAY 7401P037-60
26	MAY 3807F420-51
27	SCREW
27	MAY 7403P275-60
28	SCREW
28	MAY 7111P017-60
28	MAY 7111P006-60
