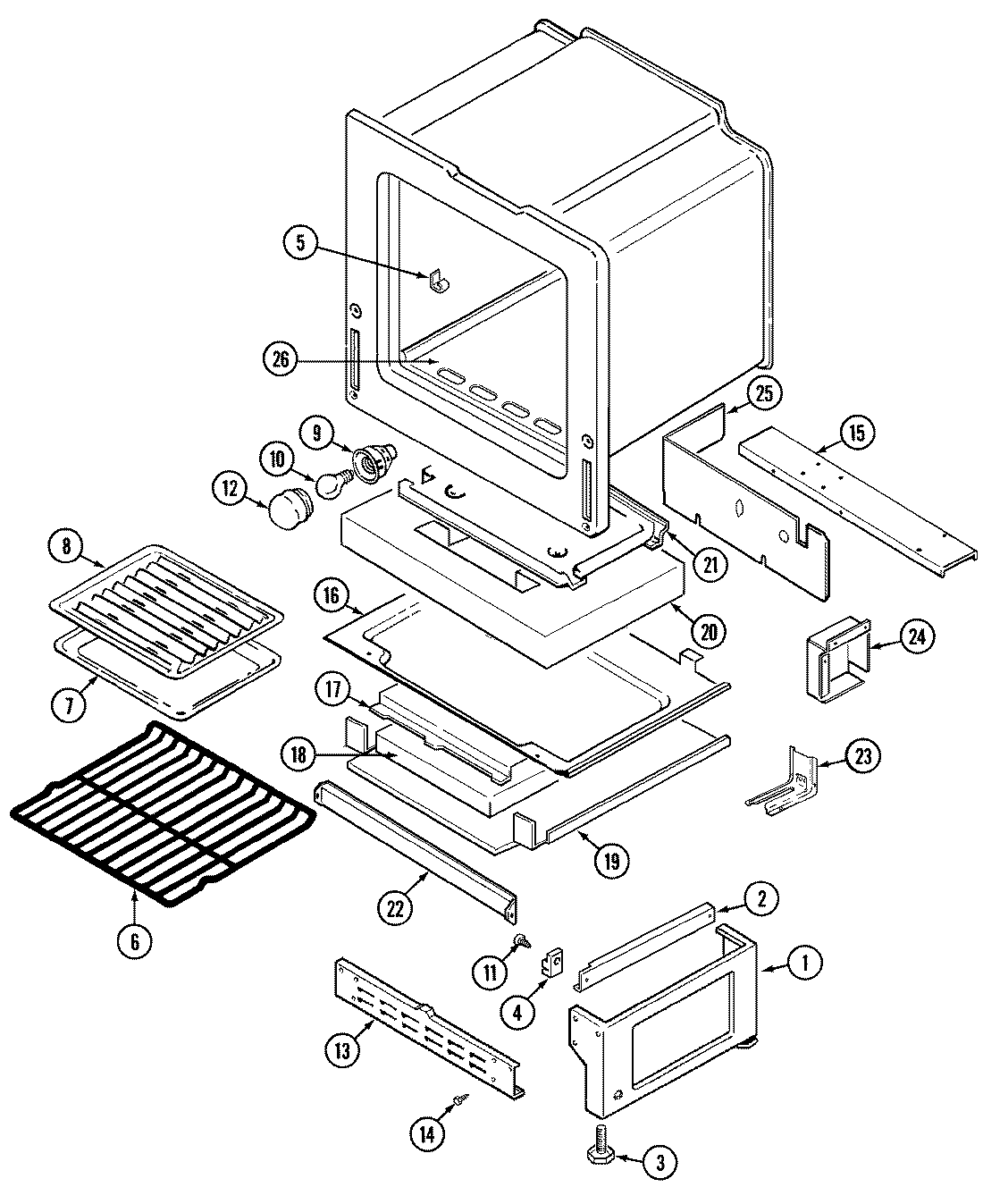

3458XVS 05 – OVEN/BASE

3458XVS 05 – OVEN/BASE

Written by

in

3458XVS 05 – OVEN/BASE

Products

PositionProduct
1MAY 4020W015-80
1MAY 74003003
2RUNNER, DRAWER
2MAY 3406F028-51
3MAY 74001311
3W11665456 Whirlpool Range Level Foot
4MAY 74002312
4MAY 74003566
5WP7112P004-60 Whirlpool Thermal Clip
6MAY 7801P047-60
7MAY Y3401F02019
8MAY Y3413F01619
9WP7407P182-60 Whirlpool Lamp
9MAY 74003125
10RANGE ONLY 40W 120V APPL BULB
11MAY 74001449
12WP9781049 Whirlpool Light Lens
13MAY 4020F001-80
15MAY 3807F476-51
16MAY 3804F112-51
17MAY 3604F204-51
18INSULATION, DRAWER & SHIELD
19MAY 3604F205-51
20MAY 4804F014-60
21MAY 74001651
22BAFFLE, OVEN FRONT
23MAY 7101P344-60
23MAY 3801F218-51
24MAY 3807F473-51
25MAY 4005F429-51
26MAY 5504M004-19
26BAFFLE, OVEN BOTTOM
27SCREW
27MAY 7111P006-60
