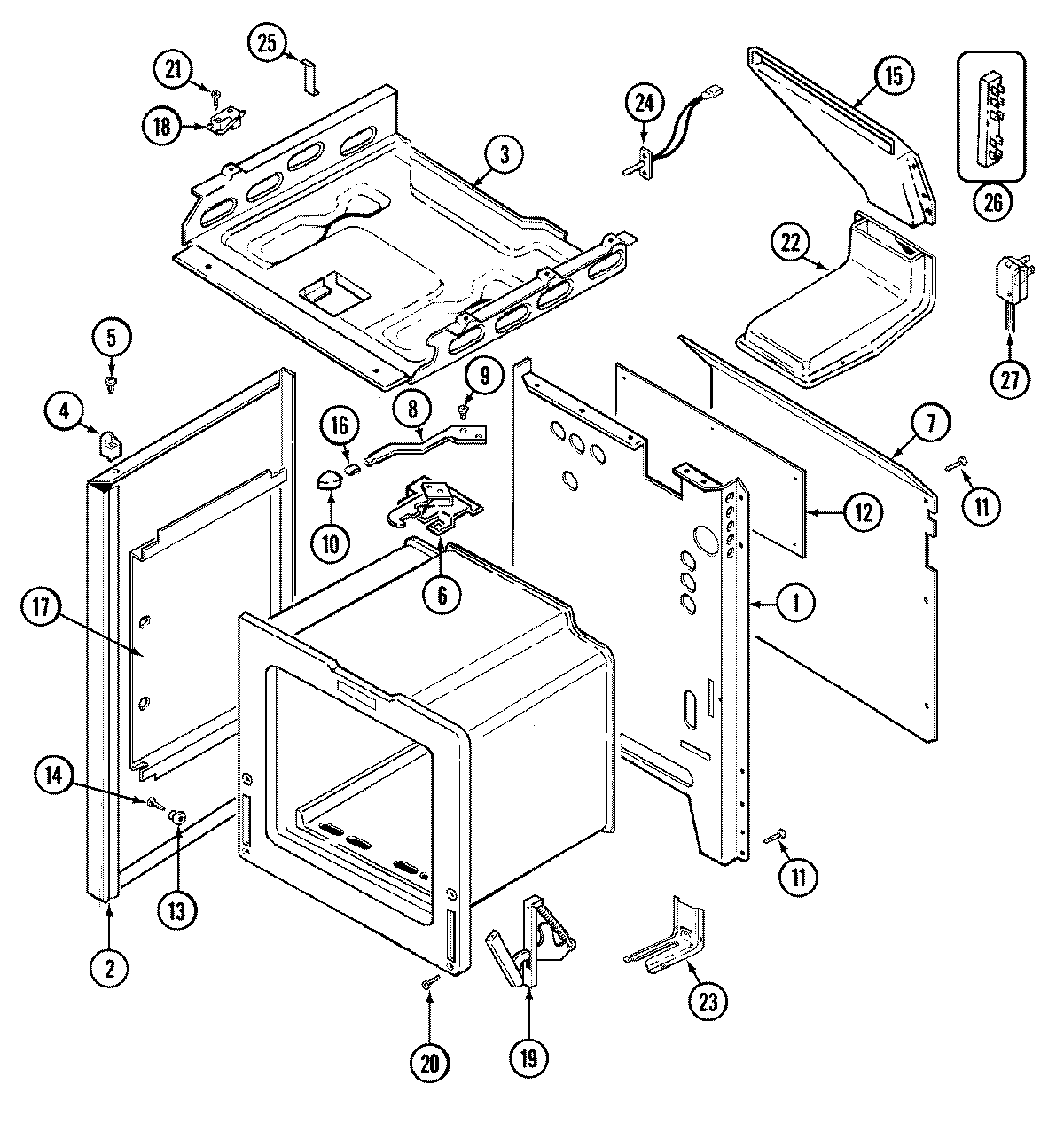

3468VVD 01 – BODY

Products

Position	Product
1	MAY 4002F211-80
1	MAY 8008P021-60
2	MAY 2618F110-74
3	MAY 4011F250-80
3	MAY 4011F231-80
4	SPACER, MAIN TOP (RT)
4	SPACER, MAIN TOP (LT)
5	MAY 7118P013-60
6	MAY 7101P280-60
6	MAY 8002P027-60
6	MAY 74001069
6	MAY 74001084
6	MAY 4804F028-60
7	MAY 4005F331-51
8	MAY 8009P029-60
8	MAY 8009P023-60
8	MAY 74001057
9	SCREW, LEVER
10	MAY 7701P151-60
12	MAY 3604F165-51
13	MAY 8004P024-60
14	MAY 74001449
15	SCREW (8BX3/8-NI)
15	MAY 4022W007-19
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	MAY 7112P003-60
17	MAY 3804F103-51
18	MAY 7403P361-60
18	MAY 7403P363-60
18	MAY 7003P063-60
18	MAY 3801F267-45
19	MAY 7106P056-60
19	WP74011140 Whirlpool Oven Hinge
20	SCREW (10-24X5/16-NI)
21	MAY 7101P330-60
21	MAY 7101P130-60
22	WP74003976 Whirlpool Screw
22	MAY 4006W113-45
23	MAY 3801F218-51
23	MAY 7101P344-60
24	MAY 7430P009-60
25	MAY 7101P290-60
25	MAY 3807F431-45
26	MAY 7401P037-60
27	MAY 7402P043-60
