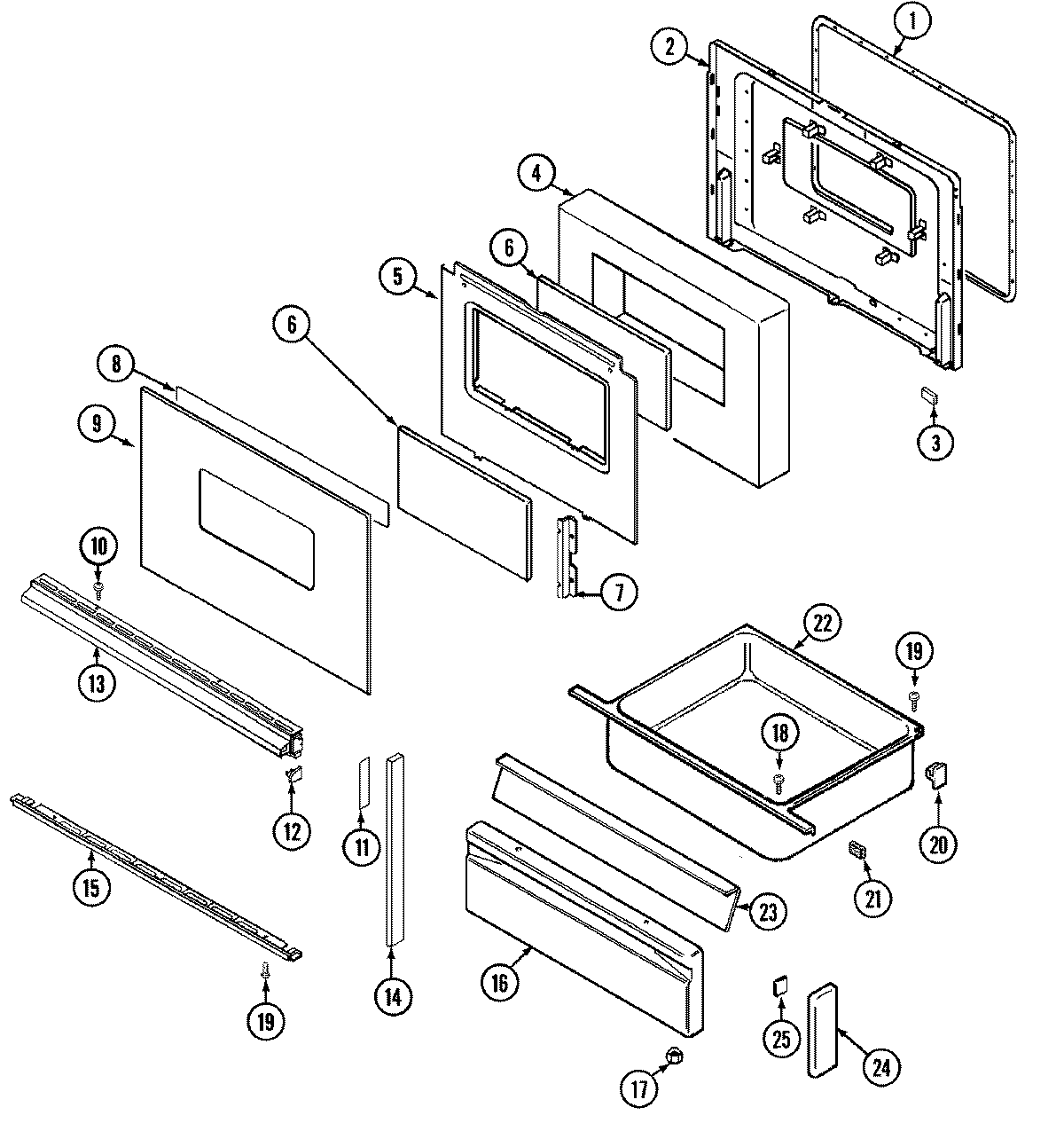

3468VVD 03 – DOOR/DRAWER (3468VVx, XVx SER. PRE.15)

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 74003244
2MAY 2402W209-19
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6MAY 74001841
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 7902P358-60
9MAY 74003455
10WP74009541 Whirlpool Screw Assembly
11MAY 8270P093-60
12MAY 7744P076-60
12MAY 7744P075-60
13MAY 7701P115-60
13MAY 74003456
13MAY 74001172
14MAY 7744P085-60
14MAY 74003458
14MAY 74002343
15MAY 74003457
15MAY 7744P104-60
16WP7101P072-60 Whirlpool Screw
16MAY 74003522
16MAY 2416F038-64
17WPW10131078 Whirlpool Nut Assembly
20MAY 74003566
20WP8004P026-60 Whirlpool Support
21MAY 7208P011-60
22MAY 71003042
22MAY 3405F018-80
23SCREW
23LINING, DRAWER PANEL
25NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
