3468VVD 05 – OVEN/BASE

3468VVD 05 – OVEN/BASE

Written by

in

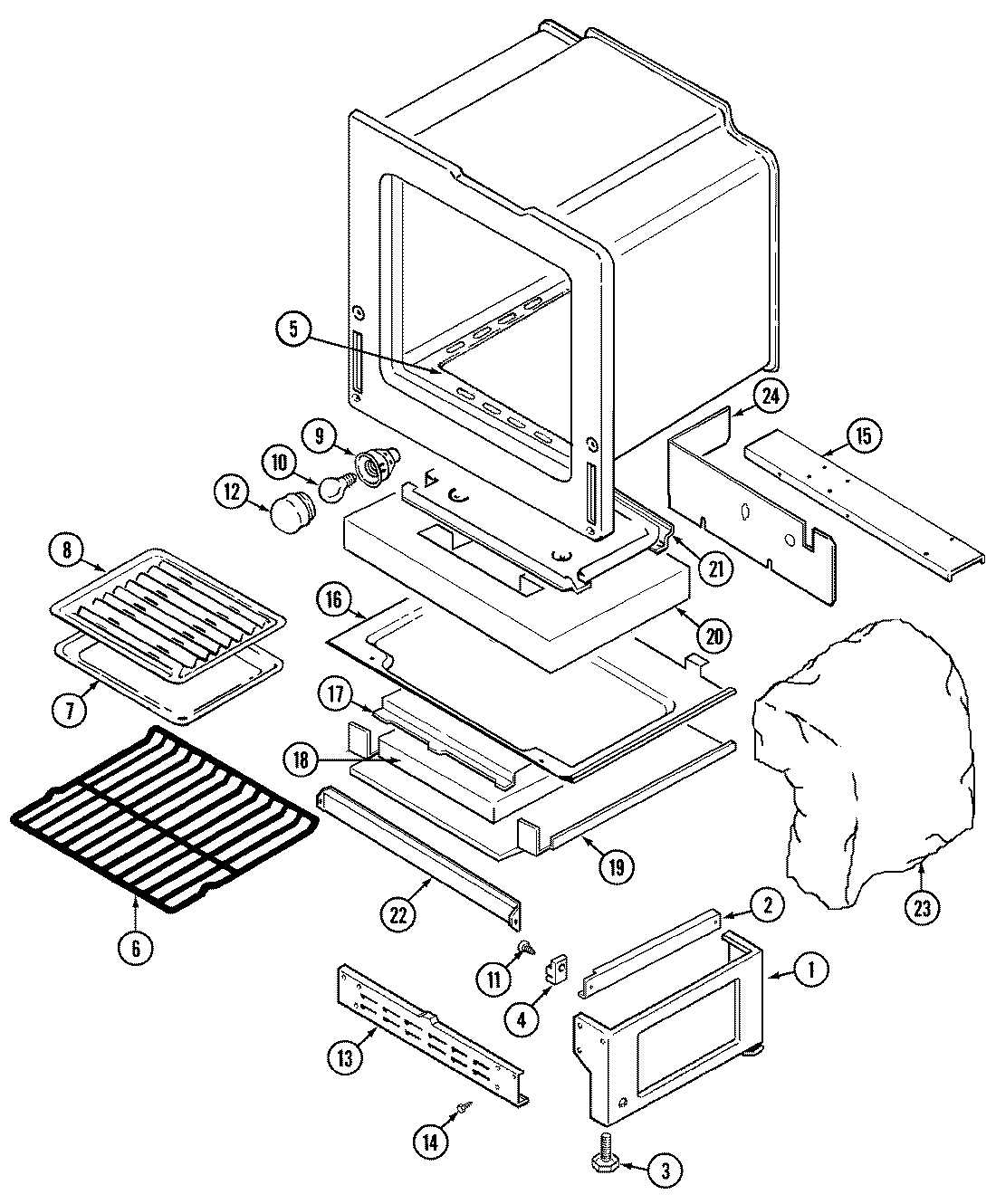

3468VVD 05 – OVEN/BASE

Products

Position	Product
1	MAY 74001705
1	MAY 74003003
2	RUNNER, DRAWER
2	MAY 3406F028-51
3	W11665456 Whirlpool Range Level Foot
3	MAY 7101P306-60
4	MAY 74003566
4	MAY 8004P033-60
5	MAY 3601F229-45
5	MAY 5504M004-19
6	MAY 7801P047-60
7	MAY Y3401F02019
8	MAY Y3413F01619
9	MAY 74003125
9	WP7407P182-60 Whirlpool Lamp
10	RANGE ONLY 40W 120V APPL BULB
11	MAY 74001449
12	WP9781049 Whirlpool Light Lens
13	MAY 4020F001-80
15	MAY 3807F476-51
16	MAY 3804F112-51
16	SCREW
17	MAY 3604F204-51
18	INSULATION, DRAWER & SHIELD
19	MAY 3604F205-51
20	MAY 4804F014-60
21	MAY 74001651
22	MAY 3601F208-45
22	WP74003976 Whirlpool Screw
22	BAFFLE, OVEN FRONT
23	MAY 4804F036-60
23	MAY 74001159
24	MAY 7101P290-60
24	MAY 4005F429-51
