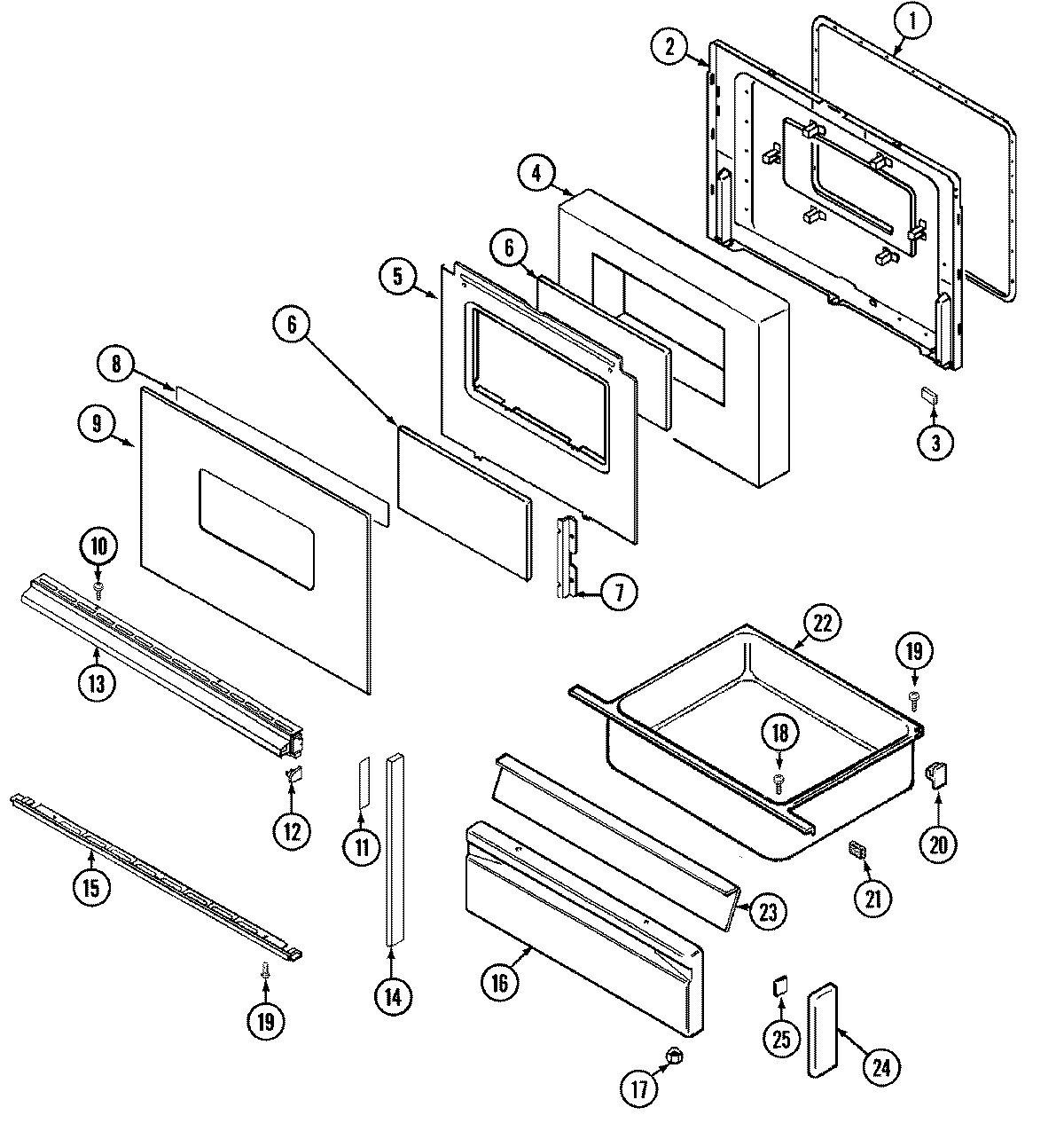

3468VVV 03 – DOOR/DRAWER (3468VVx, XVx SER. PRE.15)

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 2402W209-19
2	MAY 74003244
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	TAPE, FOIL (3“ WIDE)
9	MAY 74003395
9	MAY 7902P328-60
10	WP98008544 Whirlpool Screw Assembly
11	MAY 8270P093-60
12	MAY 7744P076-60
12	MAY 7744P075-60
13	MAY 74001171
13	MAY 7701P105-60
13	MAY 74003396
14	MAY 74002342
14	MAY 7744P065-60
14	MAY 74003398
15	MAY 7744P103-60
15	MAY 74003397
16	MAY 2416F038-62
16	PANEL, DRAWER (WHT)
16	WP7101P072-60 Whirlpool Screw
17	WPW10131078 Whirlpool Nut Assembly
20	MAY 74003566
20	WP8004P026-60 Whirlpool Support
21	MAY 7208P011-60
22	MAY 3405F018-80
22	MAY 71003042
23	LINING, DRAWER PANEL
23	SCREW
24	MAY 7744P067-60
25	TAPE
25	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
