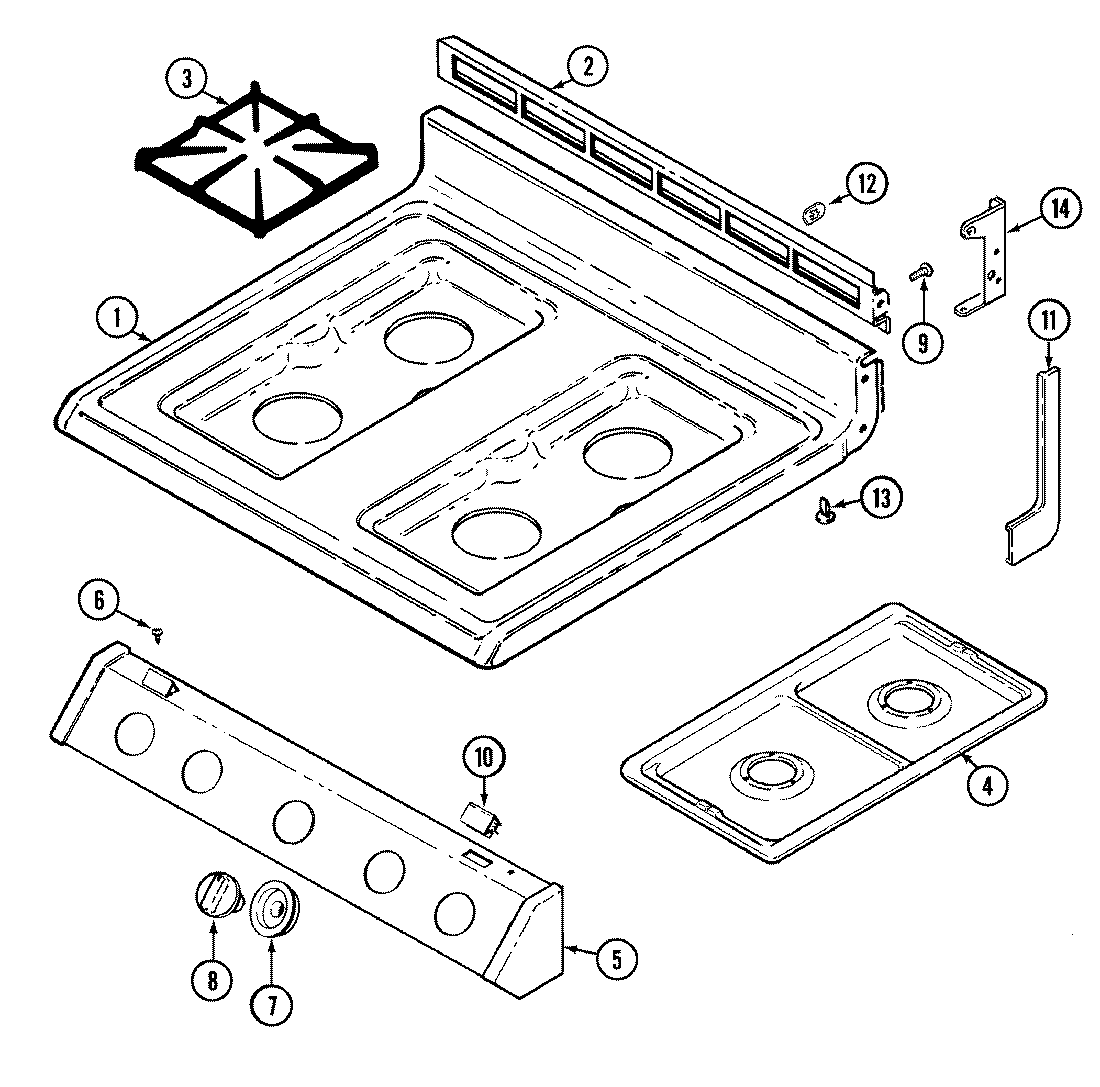

3468XTW-X 06 – TOP ASSEMBLY/CONTROL PANEL

3468XTW-X 06 – TOP ASSEMBLY/CONTROL PANEL

Written by

in

3468XTW-X 06 – TOP ASSEMBLY/CONTROL PANEL

Products

PositionProduct
1MAY 2001W085-81
2MAY 3608F042-09
3MAY 2003W027-00
4MAY 7725P021-60
5MAY 7101P291-60
5MAY 7712P130-60
6MAY 7118P015-60
7MAY 7740P033-60
8WP74003781 Whirlpool Valve Knob
9SCREW (10ABX1/4P TR ZN)
10MAY 7112P087-60
11MAY 7746P031-60
11MAY 7746P030-60
11MAY 8270P095-60
12MAY 7103P129-60
13MAY 8016P013-60
14MAY 8114P348-60
14MAY 3807F423-51
14MAY 3807F424-51
