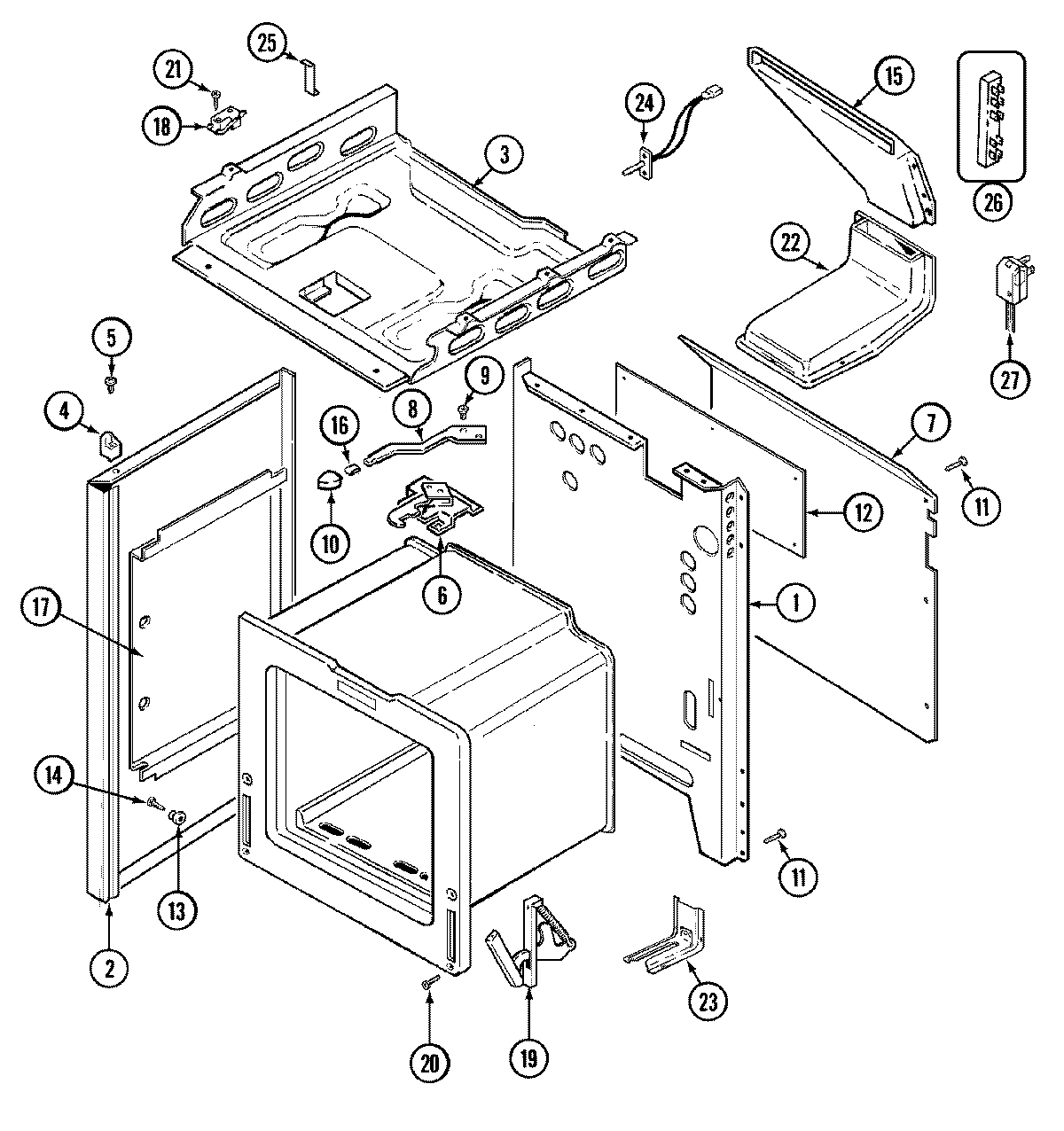

| 1 | MAY 4002F211-80 |
| 2 | MAY 2618F110-74 |
| 3 | MAY 4011F231-80 |
| 3 | MAY 4011F250-80 |
| 4 | SPACER, MAIN TOP (RT) |
| 4 | SPACER, MAIN TOP (LT) |
| 5 | MAY 7118P013-60 |
| 6 | MAY 8002P027-60 |
| 6 | MAY 4804F028-60 |
| 6 | MAY 7101P280-60 |
| 7 | MAY 4005F331-51 |
| 7 | MAY 8008P021-60 |
| 8 | MAY 8009P029-60 |
| 8 | MAY 8009P023-60 |
| 9 | SCREW, LEVER |
| 10 | MAY 7701P088-60 |
| 12 | MAY 3604F165-51 |
| 13 | MAY 8004P024-60 |
| 14 | WP400021-1 Whirlpool Screw |
| 15 | SCREW (8BX3/8-NI) |
| 15 | MAY 4022W007-19 |
| 16 | MAY 7112P003-60 |
| 17 | MAY 3804F103-51 |
| 18 | MAY 3801F267-45 |
| 18 | MAY 7403P361-60 |
| 18 | MAY 7003P063-60 |
| 18 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 18 | MAY 7403P363-60 |
| 19 | MAY 7106P056-60 |
| 20 | SCREW (10-24X5/16-NI) |
| 21 | MAY 7101P330-60 |
| 21 | MAY 7101P130-60 |
| 22 | MAY 4006W113-45 |
| 22 | WP74003976 Whirlpool Screw |
| 23 | MAY 7101P344-60 |
| 23 | MAY 3801F218-51 |
| 24 | MAY 7430P009-60 |
| 25 | MAY 3807F431-45 |
| 25 | MAY 7101P290-60 |
| 26 | MAY 7401P037-60 |
| 27 | MAY 7402P043-60 |
