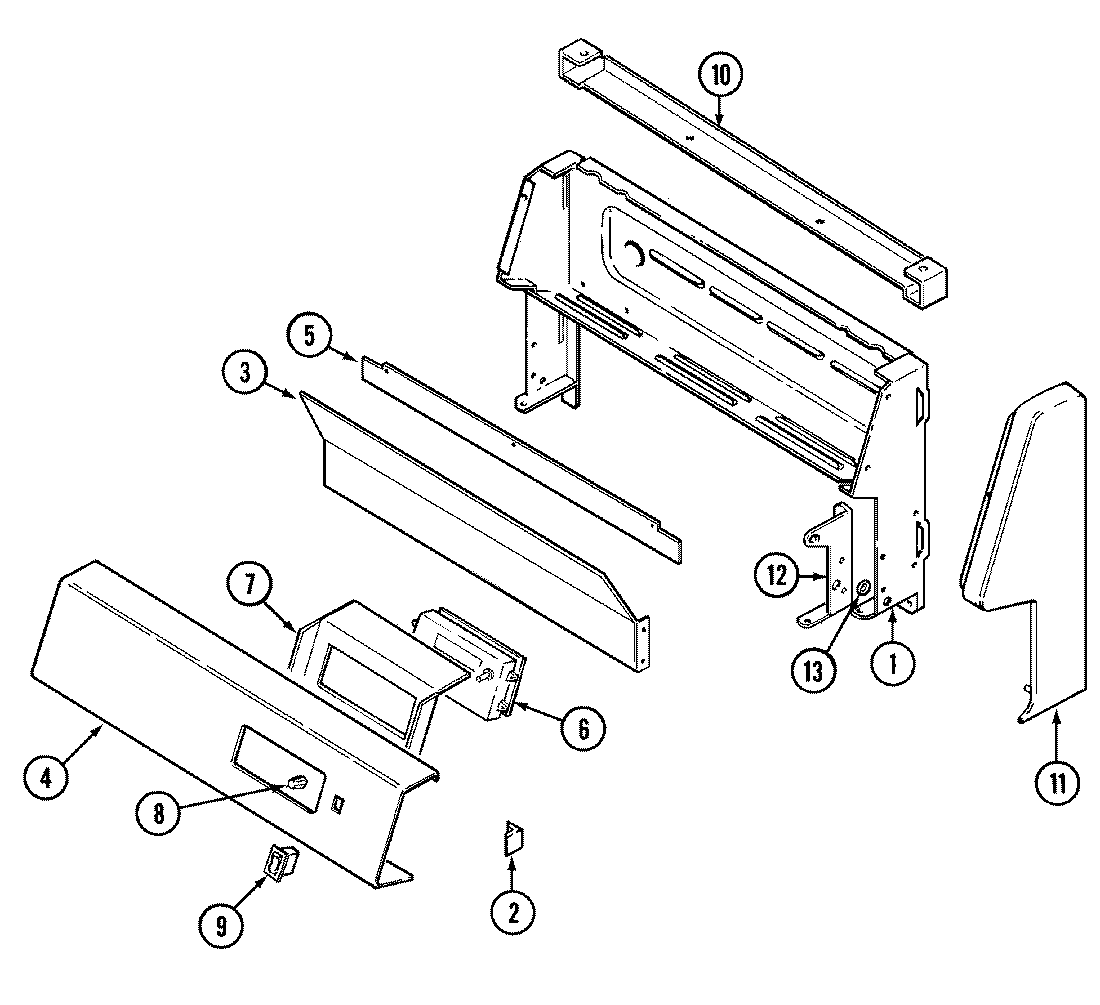

3468XVA-X 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7101P290-60
1	MAY 4005F448-45
1	MAY 7118P018-60
1	MAY 4001F091-51
2	MAY 8010P083-60
2	MAY 7101P148-60
3	MAY 3604F188-09
4	MAY 7703P606-60
5	MAY 8036P003-60
6	MAY 7601P230-60
6	MAY 74002254
6	WP59002061 Whirlpool Microwave Screw
7	MAY 74002080
7	WPY706189 Whirlpool Stove Screw
8	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
8	WP7711P492-60 Whirlpool Clock Knob
9	7403P067-60 Whirlpool Light Switch
10	MAY 4001F064-51
11	MAY 74001342
11	MAY 74001343
11	MAY 7726P046-60
11	MAY 7726P050-60
12	MAY 3807F453-51
12	MAY 3807F454-51
12	SCREW (8BX3/8-NI)
13	WP3195558 Whirlpool Nut
14	MAY 5180D152-60
14	MAY 5125A354-60
14	MAY 5170P204-60
15	MAY 16000329
15	MAY 8113P066-60
