3468XVA-X 03 – DOOR/DRAWER (SER. PRE. 10-14)

3468XVA-X 03 – DOOR/DRAWER (SER. PRE. 10-14)

Written by

in

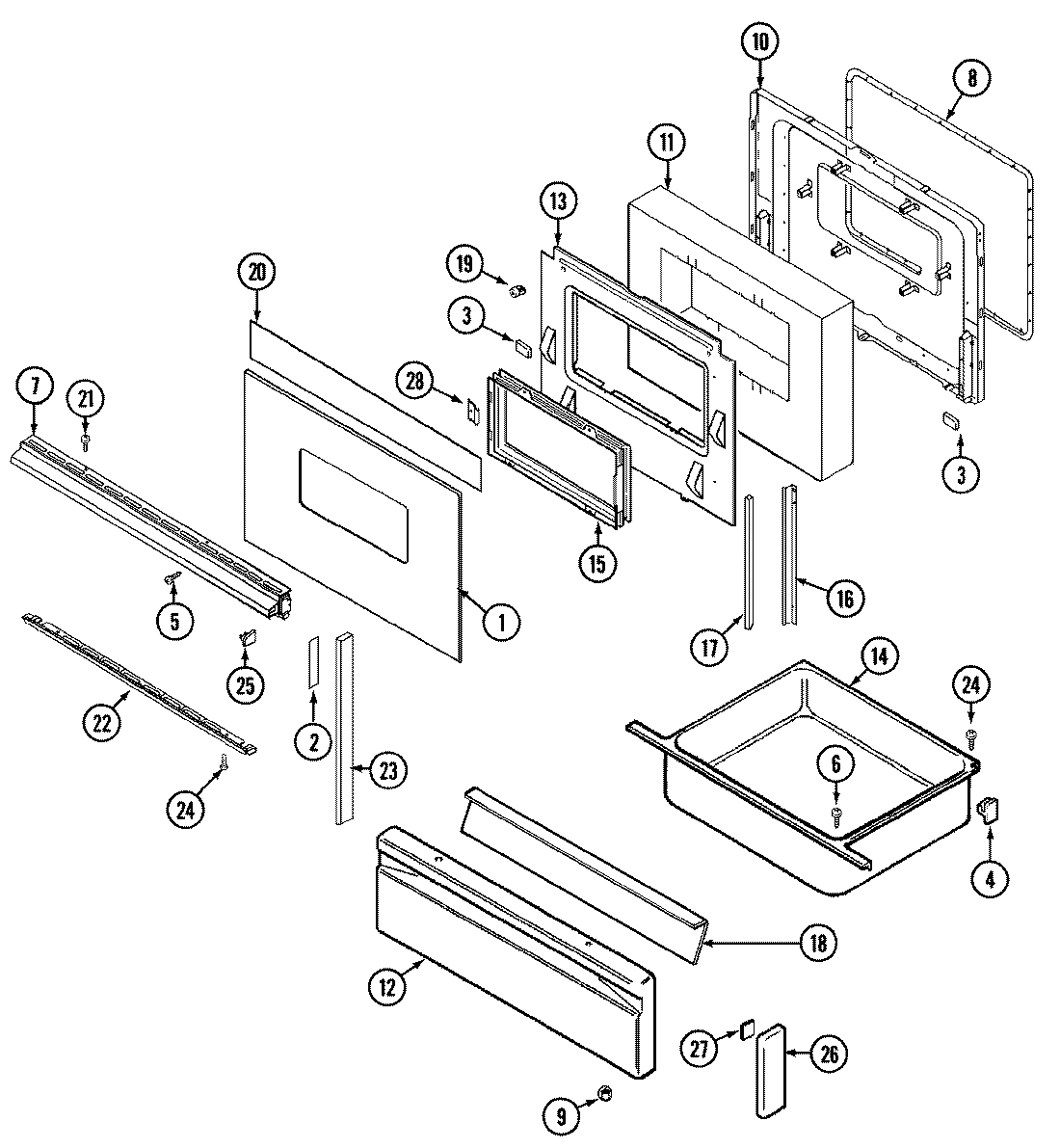

3468XVA-X 03 – DOOR/DRAWER (SER. PRE. 10-14)

Products

PositionProduct
1MAY 7902P321-60
2MAY 8270P093-60
3MAY 8010P085-60
4WP8004P026-60 Whirlpool Support
5WP3387230 Whirlpool Screw
7MAY 7701P103-60
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10MAY 2402W209-19
11MAY 4804F051-60
12WP7101P072-60 Whirlpool Screw
12MAY 2416F038-65
13MAY 3601F236-51
14MAY 3405F018-80
15MAY 7907P021-60
16MAY 3818F052-80
17MAY 7208P002-60
18LINING, DRAWER PANEL
19MAY 7103P045-60
20TAPE, FOIL (3“ WIDE)
21WP98008545 Whirlpool Screw
22MAY 7744P105-60
23MAY 7744P055-60
24MAY 7101P290-60
25MAY 7744P076-60
25SCREW
25MAY 7744P075-60
26MAY 7744P068-60
27MAY 8270P094-60
28MAY 3805F002-34
28MAY 74001449
