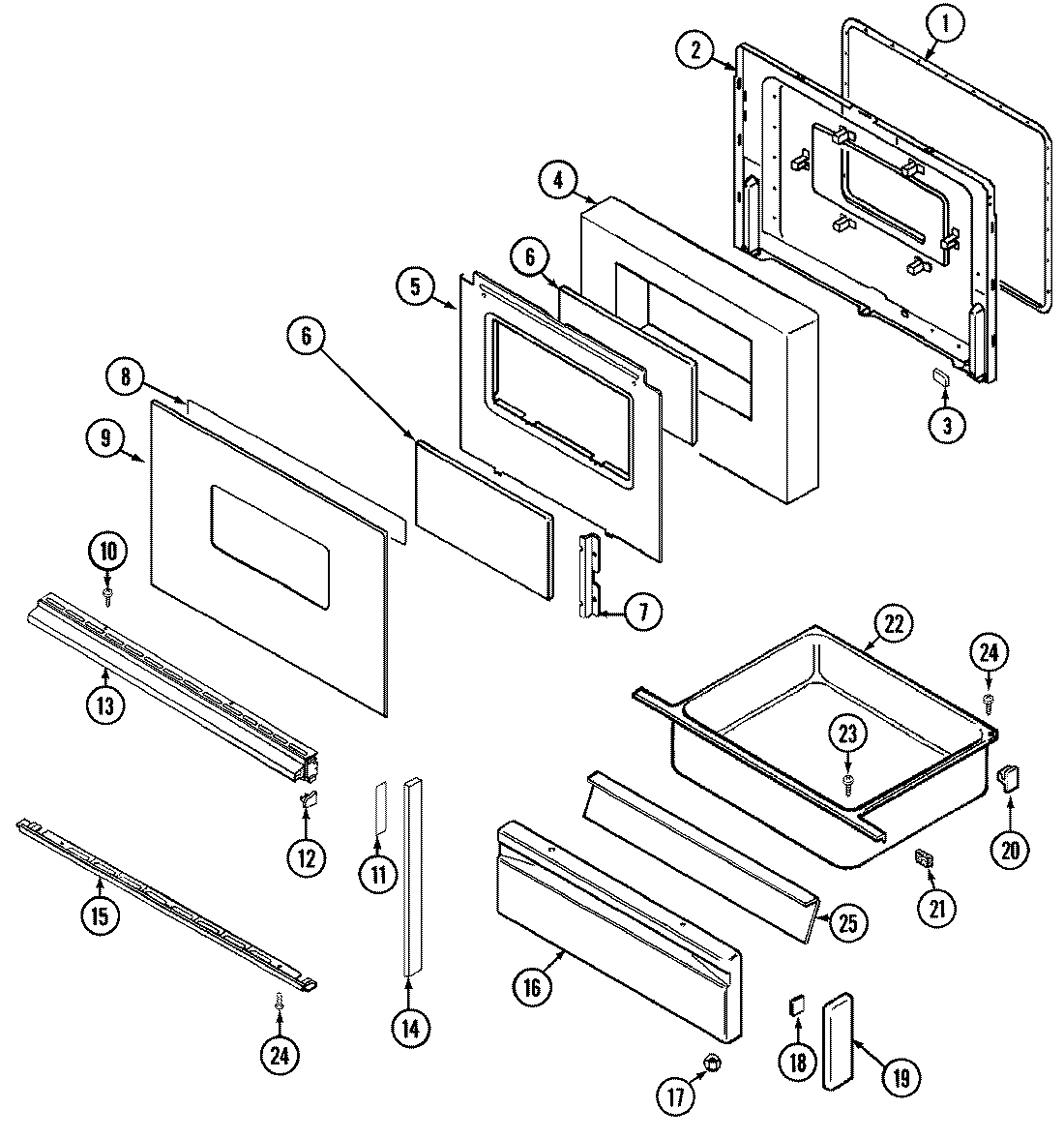

3468XVA-X 04 – DOOR/DRAWER (SER. PRE. 15)

3468XVA-X 04 – DOOR/DRAWER (SER. PRE. 15)

Written by

in

3468XVA-X 04 – DOOR/DRAWER (SER. PRE. 15)

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 2402W209-19
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6MAY 74001841
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 7902P321-60
10WP98008545 Whirlpool Screw
11MAY 8270P048-60
12MAY 74002540
12MAY 74002539
12MAY 7744P076-60
12MAY 7744P075-60
13MAY 7701P103-60
14MAY 74002084
15MAY 7744P105-60
16MAY 2416F038-65
17WPW10131078 Whirlpool Nut Assembly
18TAPE
19MAY 7744P055-60
20WP8004P026-60 Whirlpool Support
21MAY 7208P002-60
22MAY 3405F018-80
23WP4159193 Whirlpool Screw
24SCREW
25LINING, DRAWER PANEL
