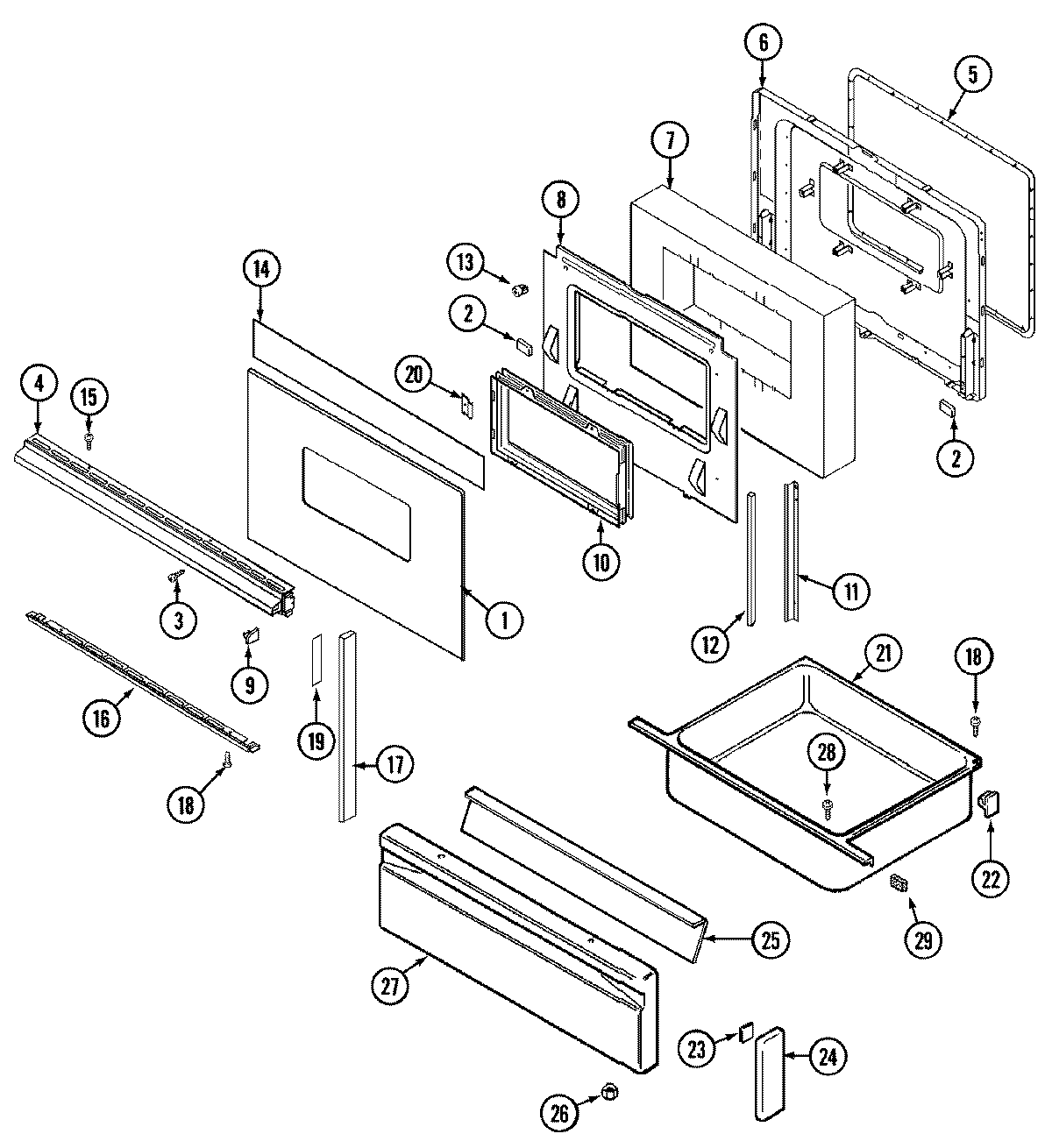

3468XVW 03 – DOOR/DRAWER (3468VVx, 3468XVx)

3468XVW 03 – DOOR/DRAWER (3468VVx, 3468XVx)

Written by

in

3468XVW 03 – DOOR/DRAWER (3468VVx, 3468XVx)

Products

Position	Product
1	MAY 7902P321-60
4	MAY 7701P103-60
6	MAY 2402W209-19
7	MAY 4804F051-60
8	MAY 3601F236-51
9	MAY 7744P075-60
9	MAY 7744P076-60
10	MAY 7907P021-60
11	MAY 3818F052-80
12	MAY 7208P002-60
13	MAY 7103P045-60
14	TAPE, FOIL (3“ WIDE)
15	WP98008545 Whirlpool Screw
16	MAY 7744P105-60
17	MAY 7744P055-60
19	MAY 8270P093-60
20	MAY 3805F002-34
20	MAY 74001449
21	MAY 3405F018-80
22	WP8004P026-60 Whirlpool Support
25	LINING, DRAWER PANEL
26	WPW10131078 Whirlpool Nut Assembly
27	MAY 2416F038-62
28	SCREW
29	MAY 7208P011-60
