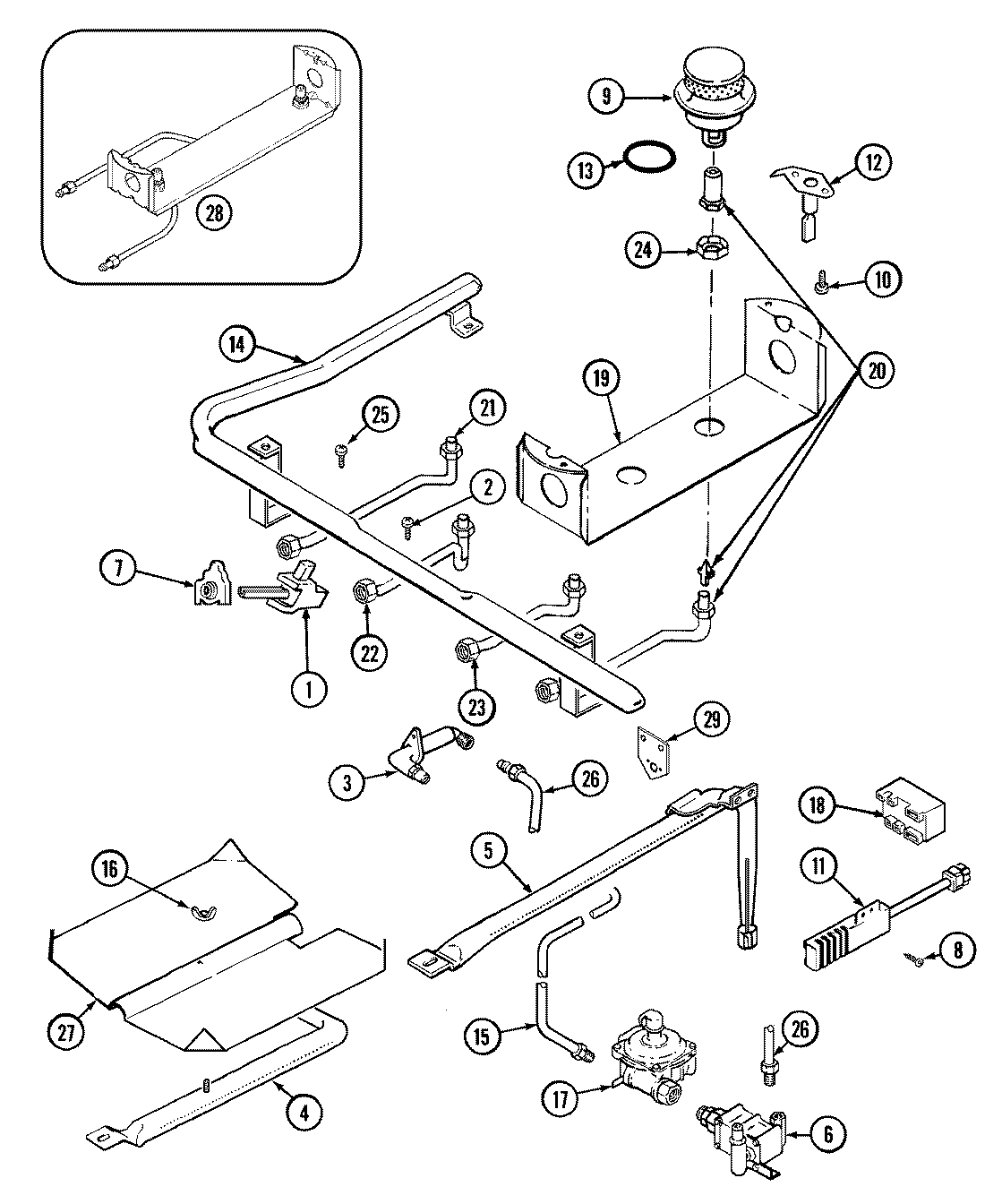

3468XVW-X 05 – GAS CONTROLS

Products

Position	Product
1	MAY 7502P251-60
2	MAY 7101P044-60
3	WP3387230 Whirlpool Screw
3	MAY 7507P088-60
4	MAY 3403D024-45
5	MAY 3807F446-45
5	MAY 3403D043-45
6	WP74006427 Whirlpool Oven Valve
7	WP7403P279-60 Whirlpool Igniter Switch
8	SCREW (10-24X5/16-NI)
9	MAY 7101P343-60
9	MAY 3412D018-09
10	MAY 7101P315-60
11	MAY 4005F421-45
11	MAY 7432P076-60
13	MAY 7201P050-60
14	MAY 7513P120-60
14	MAY 7101P290-60
15	MAY 7103P130-60
15	MAY 3414F103-44
16	NUT, WING
17	MAY 7510P063-60
18	MAY 3807F473-51
18	MAY 7431P024-60
19	MAY 3807F469-45
20	MAY 7507P085-60
21	MAY 7507P113-60
22	MAY 7507P084-60
23	MAY 7507P091-60
24	MAY 7103P119-60
25	MAY 7101P296-60
26	MAY 3414F102-44
27	MAY 3601F217-47
28	MAY 5187D035-60
28	MAY 5187D034-60
29	MAY 3605F186-45
30	MAY 5140D035-60
30	MAY 5125A312-60
30	MAY 5120D019-60
31	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
