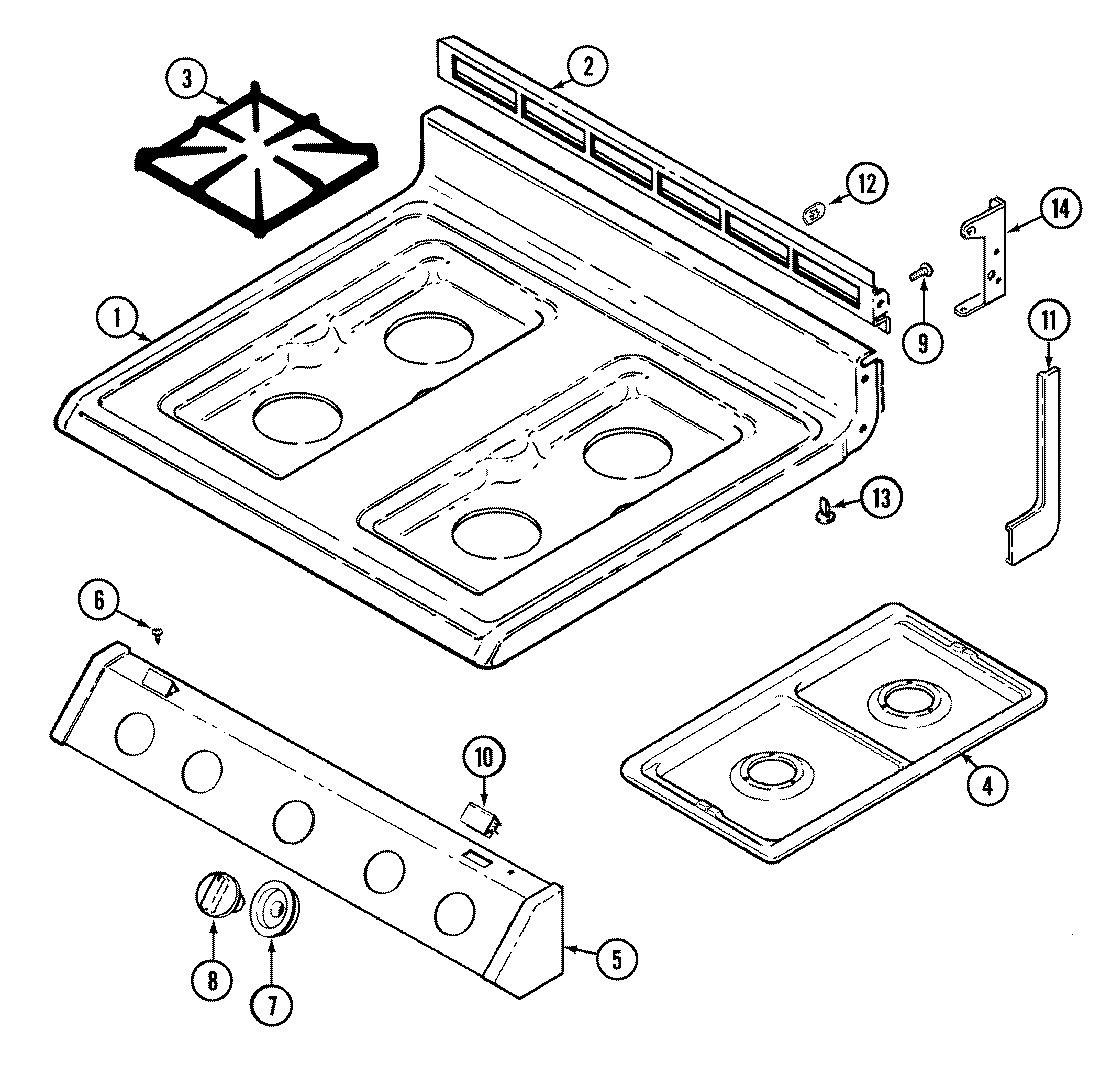

3468XVW-X 07 – TOP ASSEMBLY

3468XVW-X 07 – TOP ASSEMBLY

Written by

in

3468XVW-X 07 – TOP ASSEMBLY

Products

PositionProduct
1MAY 2001W085-81
2MAY 3608F042-09
3MAY 2003W027-00
4MAY 5401A452-60
5MAY 7712P130-60
6MAY 7101P329-60
7WP7740P058-60 Whirlpool Knob Bezel
8WP74003781 Whirlpool Valve Knob
9SCREW (10ABX1/4P TR ZN)
10MAY 7112P087-60
11MAY 8270P095-60
11MAY 7746P030-60
11MAY 7746P031-60
12WP3195558 Whirlpool Nut
13MAY 8016P015-60
14MAY 8114P348-60
14MAY 3807F454-51
14MAY 3807F453-51
14SCREW (8BX3/8-NI)
15MAY 7111P017-60
15MAY 5125A312-60
15MAY 5120D019-60
